4:1 5W DUAL OUTPUT |
|||||||
|---|---|---|---|---|---|---|---|
|
Model No |
INPUT VOLTAGE |
OUTPUT VOLTAGE |
OUTPUT CURRENT |
INPUT CURRENT(mA) |
EFF |
ISOLATION(VDC) |
|
|
FULL LOAD |
NO LOAD |
||||||
|
WLD-1205HT-3K |
9-36 |
+/-5 |
+/-500 |
530 |
28 |
77 |
3000 |
|
WLD-1212HT-3K |
9-36 |
+/-12 |
+/-208 |
527 |
28 |
79 |
3000 |
|
WLD-1215HT-3K |
9-36 |
+/-15 |
+/-167 |
520 |
28 |
80 |
3000 |
|
WLD-2412HT-3K |
18-72 |
+/-12 |
+/-208 |
257 |
13 |
81 |
3000 |
|
WLD-2415HT-3K |
18-72 |
+/-15 |
+/-167 |
257 |
12 |
81 |
3000 |
|
4:1 5W SINGLE OUTPUT |
|||||||
|---|---|---|---|---|---|---|---|
|
Model No |
INPUT VOLTAGE |
OUTPUT VOLTAGE |
OUTPUT CURRENT |
INPUT CURRENT(mA) |
EFF |
ISOLATION(VDC) |
|
|
FULL LOAD |
NO LOAD |
||||||
|
WLS-1203.3HT-3K |
9-36 |
3.3 |
1500 |
555 |
20 |
75 |
3000 |
|
WLS-1205HT-3K |
9-36 |
5 |
1000 |
535 |
30 |
78 |
3000 |
|
WLS-1209HT-3K |
9-36 |
9 |
556 |
548 |
30 |
76 |
3000 |
|
WLS-1212HT-3K |
9-36 |
12 |
417 |
525 |
28 |
79 |
3000 |
|
WLS-1215HT-3K |
9-36 |
15 |
333 |
520 |
28 |
80 |
3000 |
|
WLS-2403.3HT-3K |
18-72 |
3.3 |
1500 |
277 |
14 |
75 |
3000 |
|
WLS-2405HT-3K |
18-72 |
5 |
1000 |
277 |
14 |
75 |
3000 |
|
WLS-2409HT-3K |
18-72 |
9 |
556 |
267 |
14 |
78 |
3000 |
|
WLS-2412HT-3K |
18-72 |
12 |
417 |
260 |
13 |
80 |
3000 |
|
WLS-2415HT-3K |
18-72 |
15 |
333 |
257 |
13 |
81 |
3000 |
|
4:1 5W DUAL OUTPUT |
|||||||
|---|---|---|---|---|---|---|---|
|
Model No |
INPUT VOLTAGE |
OUTPUT VOLTAGE |
OUTPUT CURRENT |
INPUT CURRENT(mA) |
EFF |
ISOLATION(VDC) |
|
|
FULL LOAD |
NO LOAD |
||||||
|
WLD-1205HT |
9-36 |
+/-5 |
+/-500 |
530 |
28 |
77 |
1000 |
|
WLD-1212HT |
9-36 |
+/-12 |
+/-208 |
527 |
28 |
79 |
1000 |
|
WLD-1215HT |
9-36 |
+/-15 |
+/-167 |
520 |
28 |
80 |
1000 |
|
WLD-2412HT |
18-72 |
+/-12 |
+/-208 |
257 |
13 |
81 |
1000 |
|
WLD-2415HT |
18-72 |
+/-15 |
+/-167 |
257 |
12 |
81 |
1000 |
|
4:1 5W SINGLE OUTPUT |
|||||||
|---|---|---|---|---|---|---|---|
|
Model No |
INPUT VOLTAGE |
OUTPUT VOLTAGE |
OUTPUT CURRENT |
INPUT CURRENT(mA) |
EFF |
ISOLATION(VDC) |
|
|
FULL LOAD |
NO LOAD |
||||||
|
WLS-1203.3HT |
9-36 |
3.3 |
1500 |
555 |
20 |
75 |
1000 |
|
WLS-1205HT |
9-36 |
5 |
1000 |
535 |
30 |
78 |
1000 |
|
WLS-1209HT |
9-36 |
9 |
556 |
548 |
30 |
76 |
1000 |
|
WLS-1212HT |
9-36 |
12 |
417 |
525 |
28 |
79 |
1000 |
|
WLS-1215HT |
9-36 |
15 |
333 |
520 |
28 |
80 |
1000 |
|
WLS-2403.3HT |
18-72 |
3.3 |
1500 |
277 |
14 |
75 |
1000 |
|
WLS-2405HT |
18-72 |
5 |
1000 |
277 |
14 |
75 |
1000 |
|
WLS-2409HT |
18-72 |
9 |
556 |
267 |
14 |
78 |
1000 |
|
WLS-2412HT |
18-72 |
12 |
417 |
260 |
13 |
80 |
1000 |
|
WLS-2415HT |
18-72 |
15 |
333 |
257 |
13 |
81 |
1000 |
|
Mechanical Characteristics |
|
|---|---|
|
Length:50.8mm |
Height: 11.2mm |
|
Width: 25.4mm |
Weight: 31.2g Typ |
|
GENERAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Operating Temperature |
-25oC to +71oC |
Switching Frequency |
100 KHz min |
|
Storage Temperature |
-55oC to +125oC |
MTBF |
>800,000 Hours at 25oC |
|
Humidity |
95% max |
Case Material |
Six or Five-sided shield Case |
|
Cooling |
Free-Air Convection |
Potting Material |
Epoxy(UL94-V0) |
|
Efficiency |
70% min |
Conducted Emissions |
EN55022 Class A |
|
Isolation Voltage |
1000 or 3000VDC min |
Radiated Emissions |
EN55022 Class A |
|
Isolation Resistance |
109 ohms min |
Approvals |
EMC, FCC |
|
Isolation Capacitance |
120pF max |
|
|
|
ELECTRICAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Input Voltage Range |
2:1, 3:1, 4:1 Input Range |
Load Regulation |
+/-0.2% max |
|
Input Filter |
Pi Network |
Minimum Load |
10% of Full Load |
|
Protection |
Fuse Recommended |
Short Circuit Protection |
Continuous |
|
Voltage Setpoint Accuracy |
+/-2% max |
Short Circuit Restart |
Automatic |
|
Temperature Coefficient |
+/-0.03%/oC |
Overload Protection |
180% Typ |
|
Ripple & Noise(20MHz BW) |
100mVp-p max |
Transient Response |
200uS max |
|
Line Regulation |
+/-0.2% max |
|
|
OUTPUT SPECIFICATIONS
DC/DC CONVERTER
WIDE INPUT RANGE - 4:1
WL SERIES
SIMPLIFIED SCHEMATIC

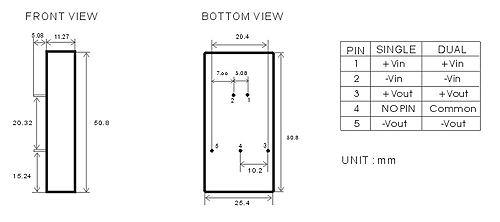

MECHANICAL DIMENSIONS &
RECOMMENDED FOOTPRINT DETAILS
 |
 |
 |
 |
 |
 |
