DC/DC CONVERTER
REGULATED TYPE
RS SERIES
OUTPUT SPECIFICATIONS
|
ELECTRICAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Input Voltage Range |
+/-10% max |
Line Regulation |
+/-0.5% max |
|
Input Filter |
Capacitor Typ |
Load Regulation |
+/-0.5% max |
|
Protection |
Fuse Recommended |
Minimum Load |
10% of Full Load |
|
Voltage Setpoint Accuracy |
+/-2% max |
Short Circuit Protection |
Current Limit Protection |
|
Temperature Coefficient |
+/-0.03%/oC |
Short Circuit Restart |
Automatic |
|
Ripple & Noise(20MHz BW) |
100mVp-p max |
Transient Response |
200uS max |
|
GENERAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Operating Temperature |
-25oC to +71oC |
Isolation Capacitance |
80pF max |
|
Storage Temperature |
-55oC to +125oC |
Switching Frequency |
50 KHz min |
|
Humidity |
95% max |
MTBF |
>2,000,000 Hours at 25oC |
|
Cooling |
Free-Air Convection |
Case Material |
Non-Conductive Plastic |
|
Efficiency |
60% min |
Conducted Emissions |
EN55022 Class A |
|
Isolation Voltage |
1000 VDC min |
Radiated Emissions |
EN55022 Class A |
|
Isolation Resistance |
109 ohms min |
|
|
|
Mechanical Characteristics |
|
|---|---|
|
Length:22.6mm |
Height: 8.4mm |
|
Width: 9.9mm |
Weight: 3.1g Typ |
|
1W SINGLE OUTPUT |
||||||||
|---|---|---|---|---|---|---|---|---|
|
Model No |
INPUT VOLTAGE |
OUTPUT VOLTAGE |
OUTPUT CURRENT |
INPUT CURRENT |
EFF |
ISOLATION(VDC) |
OUTPUT POWER |
|
|
FULL LOAD |
NO LOAD |
|||||||
|
RSS-0505-2 |
4.5-5.5 |
5 |
200 |
322 |
23 |
62 |
1000 |
1W |
|
RSS-0509-2 |
4.5-5.5 |
9 |
111 |
333 |
22 |
60 |
1000 |
1W |
|
RSS-0512-2 |
4.5-5.5 |
12 |
84 |
322 |
22 |
62 |
1000 |
1W |
|
RSS-0515-2 |
4.5-5.5 |
15 |
67 |
322 |
21 |
62 |
1000 |
1W |
|
RSS-2205-2 |
10.8-13.2 |
5 |
200 |
124 |
12 |
67 |
1000 |
1W |
|
RSS-2209-2 |
10.8-13.2 |
9 |
111 |
134 |
13 |
62 |
1000 |
1W |
|
RSS-2212-2 |
10.8-13.2 |
12 |
84 |
130 |
11 |
64 |
1000 |
1W |
|
RSS-2215-2 |
10.8-13.2 |
15 |
67 |
130 |
11 |
64 |
1000 |
1W |
|
RSS-2405-2 |
21.6-26.4 |
5 |
200 |
64 |
7 |
65 |
1000 |
1W |
|
SRS24509-2 |
21.6-26.4 |
9 |
111 |
64 |
6 |
65 |
1000 |
1W |
|
RSS-2412-2 |
21.6-26.4 |
12 |
84 |
60 |
6 |
70 |
1000 |
1W |
|
RSS-2415-2 |
21.6-26.4 |
15 |
67 |
60 |
6 |
70 |
1000 |
1W |
|
RSS-4805-2 |
43.2-52.8 |
5 |
200 |
32 |
4 |
65 |
1000 |
1W |
|
RSS-4809-2 |
43.2-52.8 |
9 |
111 |
30 |
3 |
70 |
1000 |
1W |
|
RSS-4812-2 |
43.2-52.8 |
12 |
84 |
29 |
3 |
72 |
1000 |
1W |
|
RSS-4815-2 |
43.2-52.8 |
15 |
67 |
33 |
3 |
63 |
1000 |
1W |
|
0.5W SINGLE OUTPUT |
||||||||
|---|---|---|---|---|---|---|---|---|
|
Model No |
INPUT VOLTAGE |
OUTPUT VOLTAGE |
OUTPUT CURRENT |
INPUT CURRENT(mA) |
EFF |
ISOLATION(VDC) |
OUTPUT POWER |
|
|
FULL LOAD |
NO LOAD |
|||||||
|
RSS-0505-1 |
4.5-5.5 |
5 |
100 |
161 |
12 |
62 |
1000 |
0.5W |
|
RSS-0509-1 |
4.5-5.5 |
9 |
56 |
175 |
11 |
57 |
1000 |
0.5W |
|
RSS-0512-1 |
4.5-5.5 |
12 |
42 |
161 |
11 |
62 |
1000 |
0.5W |
|
RSS-0515-1 |
4.5-5.5 |
15 |
34 |
173 |
37 |
58 |
1000 |
0.5W |
|
RSS-1205-1 |
10.8-13.2 |
5 |
100 |
62 |
7 |
67 |
1000 |
0.5W |
|
RSS-1209-1 |
10.8-13.2 |
9 |
56 |
66 |
5 |
63 |
1000 |
0.5W |
|
RSS-1212-1 |
10.8-13.2 |
12 |
42 |
64 |
5 |
65 |
1000 |
0.5W |
|
RSS-1215-1 |
10.8-13.2 |
15 |
34 |
64 |
5 |
65 |
1000 |
0.5W |
|
RSS-2405-1 |
21.6-26.4 |
5 |
100 |
32 |
4 |
65 |
1000 |
0.5W |
|
SRS24509-1 |
21.6-26.4 |
9 |
56 |
32 |
3 |
65 |
1000 |
0.5W |
|
RSS-2412-1 |
21.6-26.4 |
12 |
42 |
36 |
9 |
58 |
1000 |
0.5W |
|
RSS-2415-1 |
21.6-26.4 |
15 |
34 |
30 |
3 |
70 |
1000 |
0.5W |
|
RSS-4805-1 |
43.2-52.8 |
5 |
100 |
18 |
2 |
58 |
1000 |
0.5W |
|
RSS-4809-1 |
43.2-52.8 |
9 |
56 |
18 |
2 |
58 |
1000 |
0.5W |
|
RSS-4812-1 |
43.2-52.8 |
12 |
42 |
16 |
2 |
65 |
1000 |
0.5W |
|
RSS-4815-1 |
43.2-52.8 |
15 |
34 |
16 |
2 |
65 |
1000 |
0.5W |

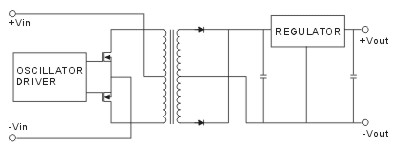

SIMPLIFIED SCHEMATIC

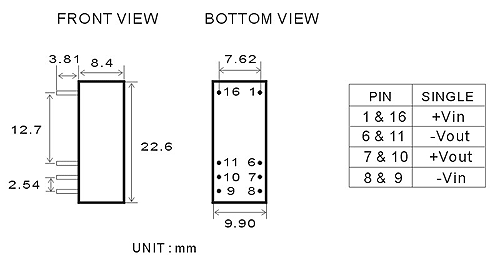

MECHANICAL DIMENSIONS &

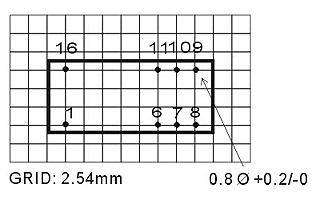

RECOMMENDED FOOTPRINT DETAILS
 |
 |
 |
 |
 |
 |
