DC/DC CONVERTER
WIDE INPUT RANGE
WOS-1205B

Mechanical Characteristics

Length:36.5mm

Height:10.1mm

Width: 22mm



GENERAL SPECIFICATIONS

Operating Temperature

-25oC to +71oC

Isolation Voltage

1000VDC min

Storage Temperature

-55oC to +125oC

Isolation Resistance

109 ohms min

Cooling

Free-Air Convection

Isolation Capacitance

80pF max

Efficiency

70% min

Switching Frequency

50 KHz min

ELECTRICAL SPECIFICATIONS

Input Voltage Range

15V-32V

Ripple & Noise(20MHz BW)

100mVp-p max

Input Filter

Pi Network

Line Regulation

+/-0.5% max

Voltage Setpoint Accuracy

5V+/-2% max

Load Regulation

+/-0.5% max

Temperature Coefficient

+/-0.03%/°C

Short Circuit Protection

Continuous

00title405a

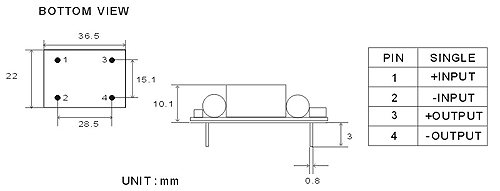

MECHANICAL DIMENSIONS &
RECOMMENDED FOOTPRINT DETAILS

01-2-WO-DIMENSIONS
