DC/DC CONVERTER
REGULATED TYPE
RL SERIES
OUTPUT SPECIFICATIONS

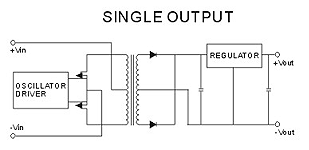

SIMPLIFIED SCHEMATIC

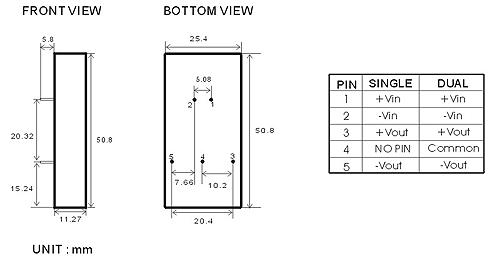

MECHANICAL DIMENSIONS &
RECOMMENDED FOOTPRINT DETAILS
|
ELECTRICAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Input Voltage Range |
+/-10% max |
Line Regulation |
+/-0.5% max |
|
Input Filter |
Pi Network |
Load Regulation |
+/-0.5% max |
|
Protection |
Fuse Recommended |
Minimum Load |
10% of Full Load |
|
Voltage Setpoint Accuracy |
+/-2% max |
Short Circuit Protection |
Current Limit Protection |
|
Temperature Coefficient |
+/-0.03%/oC |
Short Circuit Restart |
Automatic |
|
Ripple & Noise(20MHz BW) |
100mVp-p max |
Transient Response |
200uS max |
|
Mechanical Characteristics |
|
|---|---|
|
Length:50.8mm |
Height: 11.2mm |
|
Width: 25.4mm |
Weight: 31.2g Typ |
|
GENERAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Operating Temperature |
-25oC to +71oC |
Isolation Capacitance |
120pF max |
|
Storage Temperature |
-55oC to +125oC |
Switching Frequency |
50 KHz min |
|
Humidity |
95% max |
MTBF |
>750,000 Hours at 25oC |
|
Cooling |
Free-Air Convection |
Case Material |
Five-Sided Shield Case |
|
Efficiency |
58% min |
Potting Material |
Epoxy(UL94-V0) |
|
Isolation Voltage |
1000 VDC min |
Conducted Emissions |
EN55022 Class A |
|
Isolation Resistance |
109 ohms min |
Radiated Emissions |
EN55022 Class A |
|
4.5W DUAL OUTPUT |
|||||||
|---|---|---|---|---|---|---|---|
|
Model No |
INPUT VOLTAGE |
OUTPUT VOLTAGE |
OUTPUT CURRENT |
INPUT CURRENT(mA) |
EFF |
ISOLATION(VDC) |
|
|
FULL LOAD |
NO LOAD |
||||||
|
RLD-0505 |
4.5-5.5 |
+/-5 |
+/-400 |
1290 |
100 |
62 |
1000 |
|
RLD-0512 |
4.5-5.5 |
+/-12 |
+/-188 |
1384 |
100 |
65 |
1000 |
|
RLD-0515 |
4.5-5.5 |
+/-15 |
+/-150 |
1406 |
100 |
64 |
1000 |
|
RLD-1205 |
10.8-13.2 |
+/-5 |
+/-400 |
555 |
50 |
60 |
1000 |
|
RLD-1212 |
10.8-13.2 |
+/-12 |
+/-188 |
585 |
50 |
64 |
1000 |
|
RLD-1215 |
10.8-13.2 |
+/-15 |
+/-150 |
543 |
50 |
69 |
1000 |
|
RLD-2405 |
21.6-26.4 |
+/-5 |
+/-400 |
277 |
30 |
60 |
1000 |
|
RLD-2412 |
21.6-26.4 |
+/-12 |
+/-188 |
271 |
30 |
69 |
1000 |
|
RLD-2415 |
21.6-26.4 |
+/-15 |
+/-150 |
271 |
30 |
69 |
1000 |
|
4.5W SINGLE OUTPUT |
|||||||
|---|---|---|---|---|---|---|---|
|
Model No |
INPUT VOLTAGE |
OUTPUT VOLTAGE |
OUTPUT CURRENT |
INPUT CURRENT(mA) |
EFF |
ISOLATION(VDC) |
|
|
FULL LOAD |
NO LOAD |
||||||
|
RLS-0505 |
4.5-5.5 |
5 |
800 |
1269 |
100 |
63 |
1000 |
|
RLS-0512 |
4.5-5.5 |
12 |
375 |
1384 |
100 |
65 |
1000 |
|
RLS-0515 |
4.5-5.5 |
15 |
300 |
1406 |
100 |
64 |
1000 |
|
RLS-1205 |
10.8-13.2 |
5 |
800 |
546 |
50 |
61 |
1000 |
|
RLS-1212 |
10.8-13.2 |
12 |
375 |
568 |
50 |
66 |
1000 |
|
RLS-1215 |
10.8-13.2 |
15 |
300 |
543 |
50 |
69 |
1000 |
|
RLS-2405 |
21.6-26.4 |
5 |
800 |
264 |
30 |
63 |
1000 |
|
RLS-2412 |
21.6-26.4 |
12 |
375 |
271 |
30 |
69 |
1000 |
|
RLS-2415 |
21.6-26.4 |
15 |
300 |
271 |
30 |
69 |
1000 |
 |
 |
 |
 |
 |
 |
