DC/DC CONVERTER
REGULATED TYPE
RLA SERIES
OUTPUT SPECIFICATIONS

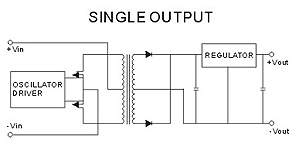

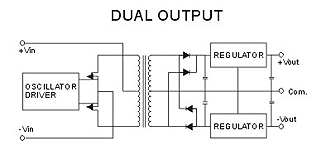

SIMPLIFIED SCHEMATIC

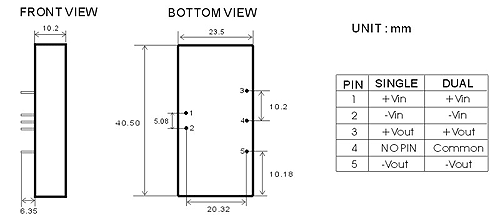

MECHANICAL DIMENSIONS &
RECOMMENDED FOOTPRINT DETAILS
|
ELECTRICAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Input Voltage Range |
+/-10% max |
Line Regulation |
+/-0.5% max |
|
Input Filter |
Pi Network |
Load Regulation |
+/-0.5% max |
|
Protection |
Fuse Recommended |
Minimum Load |
10% of Full Load |
|
Voltage Setpoint Accuracy |
+/-3% max |
Short Circuit Protection |
Current Limit Protection |
|
Temperature Coefficient |
+/-0.03%/oC |
Short Circuit Restart |
Automatic |
|
Ripple & Noise(20MHz BW) |
100mVp-p max |
Transient Response |
200uS max |
|
Mechanical Characteristics |
|
|---|---|
|
Length:23.5mm |
Height: 10.2mm |
|
Width: 40.5mm |
Weight: 31.2g |
|
GENERAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Operating Temperature |
-25oC to +71oC |
Isolation Capacitance |
120pF max |
|
Storage Temperature |
-55oC to +125oC |
Switching Frequency |
50 KHz min |
|
Humidity |
95% max |
MTBF |
>750,000 Hours at 25oC |
|
Cooling |
Free-Air Convection |
Case Material |
Non-Conductive Plastic |
|
Efficiency |
58% min |
Potting Material |
Epoxy(UL94-V0) |
|
Isolation Voltage |
1000 VDC min |
Conducted Emissions |
EN55022 Class A |
|
Isolation Resistance |
109 ohms min |
Radiated Emissions |
EN55022 Class A |
|
5W DUAL OUTPUT |
|||||||
|---|---|---|---|---|---|---|---|
|
Model No |
INPUT VOLTAGE |
OUTPUT VOLTAGE |
OUTPUT CURRENT |
INPUT CURRENT(mA) |
EFF |
ISOLATION(VDC) |
|
|
FULL LOAD |
NO LOAD |
||||||
|
RLAD-0505 |
4.5-5.5 |
+/-5 |
+/-500 |
1596 |
60 |
63 |
1000 |
|
RLAD-0512 |
4.5-5.5 |
+/-12 |
+/-208 |
1562 |
60 |
64 |
1000 |
|
RLAD-0515 |
4.5-5.5 |
+/-15 |
+/-167 |
1562 |
60 |
64 |
1000 |
|
RLAD-1205 |
10.8-13.2 |
+/-5 |
+/-500 |
661 |
40 |
63 |
1000 |
|
RLAD-1212 |
10.8-13.2 |
+/-12 |
+/-208 |
641 |
40 |
64 |
1000 |
|
RLAD-1215 |
10.8-13.2 |
+/-15 |
+/-167 |
641 |
40 |
64 |
1000 |
|
RLAD-2405 |
21.6-26.4 |
+/-5 |
+/-500 |
165 |
30 |
63 |
1000 |
|
RLAD-2412 |
21.6-26.4 |
+/-12 |
+/-208 |
163 |
30 |
64 |
1000 |
|
RLAD-2415 |
21.6-26.4 |
+/-15 |
+/-167 |
163 |
30 |
64 |
1000 |
|
5W SINGLE OUTPUT |
|||||||
|---|---|---|---|---|---|---|---|
|
Model No |
INPUT VOLTAGE |
OUTPUT VOLTAGE |
OUTPUT CURRENT |
INPUT CURRENT(mA) |
EFF |
ISOLATION(VDC) |
|
|
FULL LOAD |
NO LOAD |
||||||
|
RLAS-0505 |
4.5-5.5 |
5 |
1000 |
1596 |
60 |
63 |
1000 |
|
RLAS-0512 |
4.5-5.5 |
12 |
417 |
1562 |
60 |
64 |
1000 |
|
RLAS-0515 |
4.5-5.5 |
15 |
333 |
1562 |
60 |
64 |
1000 |
|
RLAS-1205 |
10.8-13.2 |
5 |
1000 |
661 |
40 |
63 |
1000 |
|
RLAS-1212 |
10.8-13.2 |
12 |
417 |
651 |
40 |
64 |
1000 |
|
RLAS-1215 |
10.8-13.2 |
15 |
333 |
641 |
40 |
65 |
1000 |
|
RLAS-2405 |
21.6-26.4 |
5 |
1000 |
165 |
30 |
63 |
1000 |
|
RLAS-2412 |
21.6-26.4 |
12 |
417 |
163 |
30 |
64 |
1000 |
|
RLAS-2415 |
21.6-26.4 |
15 |
333 |
163 |
30 |
64 |
1000 |
 |
 |
 |
 |
 |
 |
