DC/DC CONVERTER
REGULATED TYPE
RI SERIES
OUTPUT SPECIFICATIONS

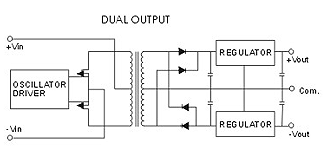

SIMPLIFIED SCHEMATIC

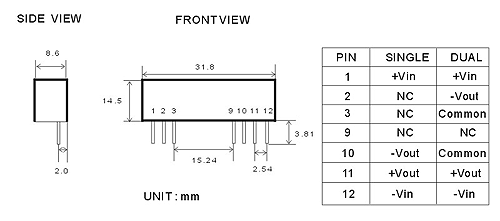

MECHANICAL DIMENSIONS &

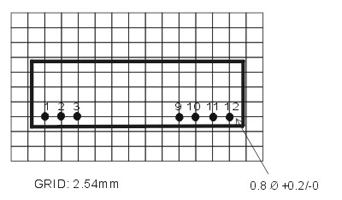

RECOMMENDED FOOTPRINT DETAILS
|
ELECTRICAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Input Voltage Range |
+/-10% max |
Line Regulation |
+/-0.5% max |
|
Input Filter |
Capacitor Typ |
Load Regulation |
+/-0.5% max |
|
Protection |
Fuse Recommended |
Minimum Load |
10% of Full Load |
|
Voltage Setpoint Accuracy |
+/-2% max |
Short Circuit Protection |
Current Limit Protection |
|
Temperature Coefficient |
+/-0.03%/oC |
Short Circuit Restart |
Automatic |
|
Ripple & Noise(20MHz BW) |
100mVp-p max |
Transient Response |
200uS max |
|
GENERAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Operating Temperature |
-25oC to +71oC |
Isolation Capacitance |
80pF max |
|
Storage Temperature |
-55oC to +125oC |
Switching Frequency |
50 KHz min |
|
Humidity |
95% max |
MTBF |
>800,000 Hours at 25oC |
|
Cooling |
Free-Air Convection |
Case Material |
Non-Conductive Plastic |
|
Efficiency |
60% min |
Conducted Emissions |
EN55022 Class A |
|
Isolation Voltage |
1000 VDC min |
Radiated Emissions |
EN55022 Class A |
|
Isolation Resistance |
109 ohms min |
|
|
|
Mechanical Characteristics |
|
|---|---|
|
Length:31.8mm |
Height: 14.5mm |
|
Width: 8.6mm |
Weight: 7.0g Typ |
|
1W SINGLE OUTPUT |
|||||||
|---|---|---|---|---|---|---|---|
|
Model No |
INPUT VOLTAGE |
OUTPUT VOLTAGE |
OUTPUT CURRENT |
INPUT CURRENT(mA) |
EFF |
ISOLATION(VDC) |
|
|
FULL LOAD |
NO LOAD |
||||||
|
RIS-0505 |
4.5-5.5 |
5 |
200 |
322 |
23 |
62 |
1000 |
|
RIS-0509 |
4.5-5.5 |
9 |
111 |
333 |
22 |
60 |
1000 |
|
RIS-0512 |
4.5-5.5 |
12 |
84 |
322 |
22 |
62 |
1000 |
|
RIS-0515 |
4.5-5.5 |
15 |
67 |
322 |
21 |
62 |
1000 |
|
RIS-1205 |
10.8-13.2 |
5 |
200 |
124 |
15 |
67 |
1000 |
|
RIS-1209 |
10.8-13.2 |
9 |
111 |
134 |
15 |
62 |
1000 |
|
RIS-1212 |
10.8-13.2 |
12 |
84 |
130 |
15 |
64 |
1000 |
|
RIS-1215 |
10.8-13.2 |
15 |
67 |
132 |
15 |
63 |
1000 |
|
RIS-2405 |
21.6*26.4 |
5 |
200 |
61 |
7 |
68 |
1000 |
|
RIS-2409 |
21.6*26.4 |
9 |
111 |
64 |
6 |
65 |
1000 |
|
RIS-2412 |
21.6*26.4 |
12 |
84 |
60 |
6 |
70 |
1000 |
|
RIS-2415 |
21.6*26.4 |
15 |
67 |
60 |
6 |
70 |
1000 |
|
1W DUAL OUTPUT |
|||||||
|---|---|---|---|---|---|---|---|
|
Model No |
INPUT VOLTAGE |
OUTPUT VOLTAGE |
OUTPUT CURRENT |
INPUT CURRENT(mA) |
EFF |
ISOLATION(VDC) |
|
|
FULL LOAD |
NO LOAD |
||||||
|
RID-0505 |
4.5-5.5 |
+/-5 |
+/-100 |
322 |
23 |
62 |
1000 |
|
RID-0512 |
4.5-5.5 |
+/-12 |
+/-42 |
322 |
22 |
62 |
1000 |
|
RID-0515 |
4.5-5.5 |
+/-15 |
+/-34 |
322 |
21 |
62 |
1000 |
|
RID-1205 |
10.8-13.2 |
+/-5 |
+/-100 |
124 |
15 |
67 |
1000 |
|
RID-1212 |
10.8-13.2 |
+/-12 |
+/-42 |
130 |
15 |
64 |
1000 |
|
RID-1215 |
10.8-13.2 |
+/-15 |
+/-34 |
132 |
15 |
63 |
1000 |
|
RID-2405 |
21.6*26.4 |
+/-5 |
+/-100 |
61 |
7 |
68 |
1000 |
|
RID-2412 |
21.6*26.4 |
+/-12 |
+/-42 |
60 |
6 |
70 |
1000 |
|
RID-2415 |
21.6*26.4 |
+/-15 |
+/-34 |
60 |
6 |
70 |
1000 |
 |
 |
 |
 |
 |
 |
