Input Voltage Range

+/-10% max

Line Regulation

+/-0.5% max

Input Filter

Capacitor Typ

Load Regulation

+/-0.5% max

Protection

Fuse Recommended

Minimum Load

10% of Full Load

Voltage Setpoint Accuracy

+/-2% max

Short Circuit Protection

Current Limit Protection

Temperature Coefficient

+/-0.03%/^oC

Short Circuit Restart

Automatic

Ripple & Noise(20MHz BW)

100mVp-p max

Transient Response

100uS max

Operating Temperature

-25^oC to +71^oC

Isolation Capacitance

80pF max

Storage Temperature

-55^oC to +125^oC

Switching Frequency

50 KHz min

Humidity

95% max

MTBF

>1,800,000 Hours at 25^oC

Cooling

Free-Air Convection

Case Material

Non-Conductive Plastic

Efficiency

50% min

Conducted Emissions

EN55022 Class A

Isolation Voltage

1000 VDC min

Radiated Emissions

EN55022 Class A

Isolation Resistance

10⁹ ohms min

Approvals

EMC, FCC

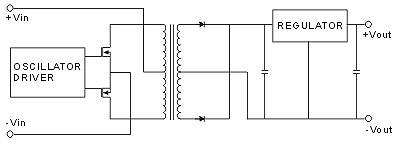

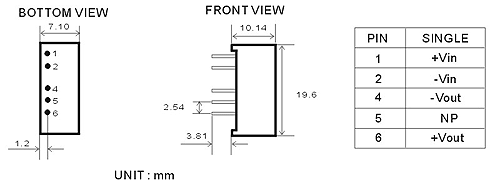

Length:19.6mm

Height: 10.2mm

Width: 7.1mm

Weight: 2.3g Typ

Model No

INPUT VOLTAGE
 (DC)

OUTPUT VOLTAGE
(DC)

OUTPUT CURRENT
(mA)

INPUT CURRENT(mA)

EFF
(%)

Isolation (VDC)

Output Power (Watt)

FULL LOAD

NO LOAD

RPS-0505C

4.5-5.5

5

200

350

20

57

1000

1

RPS-0509C

4.5-5.5

9

100

313

32

58

1000

0.9

RPS-0512C

4.5-5.5

12

84

330

32

61

1000

1

RPS-0515C

4.5-5.5

15

67

322

32

62

1000

1

RPS-1205C

10.8-13.2

5

200

141

10

59

1000

1

RPS-1209C

10.8-13.2

9

100

135

14

56

1000

0.9

RPS-1212C

10.8-13.2

12

84

158

38

53

1000

1

RPS-1215C

10.8-13.2

15

67

132

15

63

1000

1

RPS-2405C

21.6-26.4

5

200

67

6

62

1000

1

RPS-2409C

21.6-26.4

9

100

63

6

60

1000

0.9

RPS-2412C

21.6-26.4

12

84

66

6

63

1000

1

RPS-2415C

21.6-26.4

15

67

68

10

61

1000

1
