ELECTRICAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Input |
Output |
||
|
Input Voltage Range |
90-264V AC |
Output Voltage |
5 - 48V DC |
|
Input Frequency |
47-63Hz |
Output Current |
9A(45VA max) |
|
Input Current |
0.7A(max) |
Output Tolerance |
5% |
|
|
|
Ripple & Noise |
100mV ~ 150mV |
|
|
|
Efficiency |
>80% |
OUTPUT SPECIFICATIONS
SERIES NO. : 3SI41

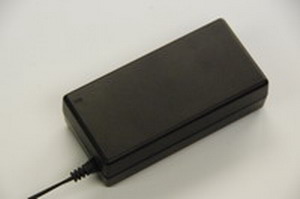

SWITCHING ADAPTOR
DESKTOP-INLET SOCKET
41 SERIES
PART NO. |
OUTPUT |
|
VOLT |
CURRENT (max) |
|
3SI41-0509000 |
5.0V |
9.00A |
3SI41-0557270 |
5.5V |
7.27A |
3SI41-0606670 |
6.0V |
6.67A |
3SI41-0656150 |
6.5V |
6.15A |
3SI41-0705710 |
7.0V |
5.71A |
3SI41-0755330 |
7.5V |
5.33A |
3SI41-0805000 |
8.0V |
5.00A |
3SI41-0854710 |
8.5V |
4.71A |
3SI41-0904440 |
9.0V |
4.44A |
3SI41-0954210 |
9.5V |
4.21A |
3SI41-1004000 |
10.0V |
4.00A |
3SI41-1053810 |
10.5V |
3.81A |
3SI41-1103640 |
11.0V |
3.64A |
3SI41-1153480 |
11.5V |
3.48A |
3SI41-1203330 |
12.0V |
3.33A |
3SI41-1253200 |
12.5V |
3.20A |
3SI41-1303080 |
13.0V |
3.08A |
3SI41-1352960 |
13.5V |
2.96A |
3SI41-1402860 |
14.0V |
2.86A |
3SI41-1452760 |
14.5V |
2.76A |
3SI41-1502670 |
15.0V |
2.67A |
3SI41-1552580 |
15.5V |
2.58A |
3SI41-1602500 |
16.0V |
2.50A |
3SI41-1652420 |
16.5V |
2.42A |
3SI41-1702350 |
17.0V |
2.35A |
3SI41-1752290 |
17.5V |
2.29A |
3SI41-1802220 |
18.0V |
2.22A |
3SI41-1852160 |
18.5V |
2.16A |
3SI41-1902110 |
19.0V |
2.11A |
3SI41-1952050 |
19.5V |
2.05A |
3SI41-2002000 |
20.0V |
2.00A |
3SI41-2051950 |
20.5V |
1.95A |
3SI41-2101900 |
21.0V |
1.90A |
3SI41-2151860 |
21.5V |
1.86A |
3SI41-2201820 |
22.0V |
1.82A |
3SI41-2251780 |
22.5V |
1.78A |
3SI41-2301740 |
23.0V |
1.74A |
3SI41-2351700 |
23.5V |
1.70A |
3SI41-2401670 |
24.0V |
1.67A |
3SI41-2451630 |
24.5V |
1.63A |
3SI41-2501600 |
25.0V |
1.60A |
3SI41-2551570 |
25.5V |
1.57A |
3SI41-2601540 |
26.0V |
1.54A |
3SI41-2651510
|
26.5V |
1.51A |
PART NO. |
OUTPUT |
|
VOLT |
CURRENT (max) |
|
3SI41-2701480 |
27.0V |
1.48A |
3SI41-2751450 |
27.5V |
1.45A |
3SI41-2801430 |
28.0V |
1.43A |
3SI41-2851400 |
28.5V |
1.40A |
3SI41-2901380 |
29.0V |
1.38A |
3SI41-2951360 |
29.5V |
1.36A |
3SI41-3001330 |
30.0V |
1.33A |
3SI41-3051310 |
30.5V |
1.31A |
3SI41-3101290 |
31.0V |
1.29A |
3SI41-3151270 |
31.5V |
1.27A |
3SI41-3201250 |
32.0V |
1.25A |
3SI41-3251230 |
32.5V |
1.23A |
3SI41-3301210 |
33.0V |
1.21A |
3SI41-3351190 |
33.5V |
1.19A |
3SI41-3401180 |
34.0V |
1.18A |
3SI41-3451160 |
34.5V |
1.16A |
3SI41-3501140 |
35.0V |
1.14A |
3SI41-3551130 |
35.5V |
1.13A |
3SI41-3601110 |
36.0V |
1.11A |
3SI41-3651100 |
36.5V |
1.10A |
3SI41-3701080 |
37.0V |
1.08A |
3SI41-3751070 |
37.5V |
1.07A |
3SI41-3801050 |
38.0V |
1.05A |
3SI41-3851040 |
38.5V |
1.04A |
3SI41-3901030 |
39.0V |
1.03A |
3SI41-3951010 |
39.5V |
1.01A |
3SI41-4001000 |
40.0V |
1.00A |
3SI41-4050990 |
40.5V |
0.99A |
3SI41-4100980 |
41.0V |
0.98A |
3SI41-4150960 |
41.5V |
0.96A |
3SI41-4200950 |
42.0V |
0.95A |
3SI41-4250940 |
42.5V |
0.94A |
3SI41-4300930 |
43.0V |
0.93A |
3SI41-4350920 |
43.5V |
0.92A |
3SI41-4400910 |
44.0V |
0.91A |
3SI41-4450900 |
44.5V |
0.90A |
3SI41-4500890 |
45.0V |
0.89A |
3SI41-4550880 |
45.5V |
0.88A |
3SI41-4600870 |
46.0V |
0.87A |
3SI41-4650860 |
46.5V |
0.86A |
3SI41-4700850 |
47.0V |
0.85A |
3SI41-4750840 |
47.5V |
0.84A |
3SI41-4800830 |
48.0V |
0.83A |
|
GENERAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
0 to +40oC |
Operating Humidity |
15 to 95% RH |
|
Storage Temperatures |
-20 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
MTBF |
||
|
Hi-Pot |
3000V AC/10mA/3S |
MTBF |
30,000Hours at 25oC |
|
EMISSION |
SAFETY |
||
|
EMI/EMC |
EMC/C-tick/FCC |
Safety Approvals |
UL/CUL/GS/SAA/CE/CB |
|
GREEN POWER |
Safety Compliant |
UL 60950/EN 60950/AS/ |
|
|
CEC/ErP/MEPS |
|||
 |
 |
 |
 |
 |
 |
