| ELECTRICAL SPECIFICATIONS |
|||
|---|---|---|---|
| Input |
Output |
||
Input Voltage Range |
90-264V AC |
Output Voltage |
12 - 48V DC |
Input Frequency |
47-63Hz |
Output Current |
5A(60VA max) |
Input Current |
1.8A(max) |
Output Tolerance |
5% |
|
|
|
Ripple & Noise |
2% mV p-p max |
|
|
|
Efficiency |
>80% |
OUTPUT SPECIFICATIONS
SERIES NO. : 3SI61

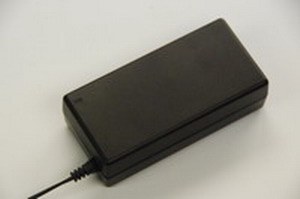

SWITCHING ADAPTOR
DESKTOP-INLET SOCKET
61 SERIES
PART NO. |
OUTPUT |
|
VOLT |
CURRENT (max) |
|
3SI61-1205000 |
12.0V |
5.00A |
3SI61-1254800 |
12.5V |
4.80A |
3SI61-1304610 |
13.0V |
4.61A |
3SI61-1354440 |
13.5V |
4.44A |
3SI61-1404280 |
14.0V |
4.28A |
3SI61-1454130 |
14.5V |
4.13A |
3SI61-1504000 |
15.0V |
4.00A |
3SI61-1553870 |
15.5V |
3.87A |
3SI61-1603750 |
16.0V |
3.75A |
3SI61-1653630 |
16.5V |
3.63A |
3SI61-1703520 |
17.0V |
3.52A |
3SI61-1753420 |
17.5V |
3.42A |
3SI61-1803330 |
18.0V |
3.33A |
3SI61-1853240 |
18.5V |
3.24A |
3SI61-1903150 |
19.0V |
3.15A |
3SI61-1953070 |
19.5V |
3.07A |
3SI61-2003000 |
20.0V |
3.00A |
3SI61-2052920 |
20.5V |
2.92A |
3SI61-2102850 |
21.0V |
2.85A |
3SI61-2152790 |
21.5V |
2.79A |
3SI61-2202720 |
22.0V |
2.72A |
3SI61-2252660 |
22.5V |
2.66A |
3SI61-2302600 |
23.0V |
2.60A |
3SI61-2352550 |
23.5V |
2.55A |
3SI61-2402500 |
24.0V |
2.50A |
3SI61-2452440 |
24.5V |
2.44A |
3SI61-2502400 |
25.0V |
2.40A |
3SI61-2552350 |
25.5V |
2.35A |
3SI61-2602300 |
26.0V |
2.30A |
3SI61-2652260
|
26.5V |
2.26A |
3SI61-2702220 |
27.0V |
2.22A |
3SI61-2752180 |
27.5V |
2.18A |
3SI61-2802140 |
28.0V |
2.14A |
3SI61-2852100 |
28.5V |
2.10A |
3SI61-2902060 |
29.0V |
2.06A |
3SI61-2952030 |
29.5V |
2.03A |
PART NO. |
OUTPUT |
|
VOLT |
CURRENT (max) |
|
3SI61-3002000 |
30.0V |
2.00A |
3SI61-3051960 |
30.5V |
1.96A |
3SI61-3101930 |
31.0V |
1.93A |
3SI61-3151900 |
31.5V |
1.90A |
3SI61-3201870 |
32.0V |
1.87A |
3SI61-3251840 |
32.5V |
1.84A |
3SI61-3301810 |
33.0V |
1.81A |
3SI61-3351790 |
33.5V |
1.79A |
3SI61-3401760 |
34.0V |
1.76A |
3SI61-3451730 |
34.5V |
1.73A |
3SI61-3501710 |
35.0V |
1.71A |
3SI61-3551690 |
35.5V |
1.69A |
3SI61-3601660 |
36.0V |
1.66A |
3SI61-3651640 |
36.5V |
1.64A |
3SI61-3701620 |
37.0V |
1.62A |
3SI61-3751600 |
37.5V |
1.60A |
3SI61-3801570 |
38.0V |
1.57A |
3SI61-3851550 |
38.5V |
1.55A |
3SI61-3901530 |
39.0V |
1.53A |
3SI61-3951510 |
39.5V |
1.51A |
3SI61-4001500 |
40.0V |
1.50A |
3SI61-4051480 |
40.5V |
1.48A |
3SI61-4101460 |
41.0V |
1.46A |
3SI61-4151440 |
41.5V |
1.44A |
3SI61-4201420 |
42.0V |
1.42A |
3SI61-4251410 |
42.5V |
1.41A |
3SI61-4301390 |
43.0V |
1.39A |
3SI61-4351370 |
43.5V |
1.37A |
3SI61-4401360 |
44.0V |
1.36A |
3SI61-4451340 |
44.5V |
1.34A |
3SI61-4501330 |
45.0V |
1.33A |
3SI61-4551310 |
45.5V |
1.31A |
3SI61-4601300 |
46.0V |
1.30A |
3SI61-4651290 |
46.5V |
1.29A |
3SI61-4701270 |
47.0V |
1.27A |
3SI61-4751260 |
47.5V |
1.26A |
3SI61-4801250 |
48.0V |
1.25A |
|
GENERAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
0 to +40oC |
Operating Humidity |
15 to 95% RH |
|
Storage Temperatures |
-20 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
MTBF |
||
|
Hi-Pot |
3000V AC/10mA/3S |
MTBF |
30,000Hours at 25oC |
|
EMISSION |
SAFETY |
||
|
EMI/EMC |
EMC/C-tick/FCC |
Safety Approvals |
UL/CUL/GS/SAA/CE/CB |
|
GREEN POWER |
Safety Compliant |
UL 60950/EN 60950/AS/ |
|
|
CEC/ErP/MEPS |
|||
 |
 |
 |
 |
 |
 |
