2:1 5W SINGLE OUTPUT |
|||||||
|---|---|---|---|---|---|---|---|
|
Model No |
INPUT VOLTAGE |
OUTPUT VOLTAGE |
OUTPUT CURRENT |
INPUT CURRENT(mA) |
EFF |
ISOLATION(VDC) |
|
|
FULL LOAD |
NO LOAD |
||||||
|
WLS-0512H |
4.5-9 |
12 |
417 |
1420 |
30 |
70 |
1000 |
|
WLS-0515H |
4.5-9 |
15 |
333 |
1390 |
20 |
72 |
1000 |
|
WLS-1203.3H |
9-18 |
3.3 |
1500 |
589 |
33 |
70 |
1000 |
|
WLS-1205H |
9-18 |
5 |
1000 |
556 |
30 |
75 |
1000 |
|
WLS-1209H |
9-18 |
9 |
556 |
520 |
30 |
80 |
1000 |
|
WLS-1212H |
9-18 |
12 |
417 |
519 |
28 |
80 |
1000 |
|
WLS-1215H |
9-18 |
15 |
333 |
514 |
28 |
81 |
1000 |
|
WLS-2403.3H |
18-36 |
3.3 |
1500 |
290 |
16 |
71 |
1000 |
|
WLS-2405H |
18-36 |
5 |
1000 |
270 |
14 |
77 |
1000 |
|
WLS-2409H |
18-36 |
9 |
556 |
257 |
14 |
81 |
1000 |
|
WLS-2412H |
18-36 |
12 |
417 |
254 |
13 |
82 |
1000 |
|
WLS-2415H |
18-36 |
15 |
333 |
251 |
13 |
83 |
1000 |
|
WLS-4803.3H |
36-72 |
3.3 |
1500 |
135 |
10 |
77 |
1000 |
|
WLS-4805H |
36-72 |
5 |
1000 |
135 |
8 |
77 |
1000 |
|
WLS-4809H |
36-72 |
9 |
556 |
126 |
7 |
83 |
1000 |
|
WLS-4812H |
36-72 |
12 |
417 |
126 |
7 |
83 |
1000 |
|
WLS-4815H |
36-72 |
15 |
333 |
123 |
7 |
85 |
1000 |
|
Mechanical Characteristics |
|
|---|---|
|
Length:50.8mm |
Height: 11.2mm |
|
Width: 25.4mm |
Weight: 31.2g Typ |
|
GENERAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Operating Temperature |
-25oC to +71oC |
Switching Frequency |
100 KHz min |
|
Storage Temperature |
-55oC to +125oC |
MTBF |
>800,000 Hours at 25oC |
|
Humidity |
95% max |
Case Material |
Six or Five-sided shield Case |
|
Cooling |
Free-Air Convection |
Potting Material |
Epoxy(UL94-V0) |
|
Efficiency |
70% min |
Conducted Emissions |
EN55022 Class A |
|
Isolation Voltage |
1000 or 3000 VDC min |
Radiated Emissions |
EN55022 Class A |
|
Isolation Resistance |
109 ohms min |
Approvals |
EMC, FCC |
|
Isolation Capacitance |
120pF max |
|
|
|
ELECTRICAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Input Voltage Range |
2:1, 3:1, 4:1 Input Range |
Load Regulation |
+/-0.2% max |
|
Input Filter |
Pi Network |
Minimum Load |
10% of Full Load |
|
Protection |
Fuse Recommended |
Short Circuit Protection |
Continuous |
|
Voltage Setpoint Accuracy |
+/-2% max |
Short Circuit Restart |
Automatic |
|
Temperature Coefficient |
+/-0.03%/oC |
Overload Protection |
180% Typ |
|
Ripple & Noise(20MHz BW) |
100mVp-p max |
Transient Response |
200uS max |
|
Line Regulation |
+/-0.2% max |
|
|
|
2:1 5W DUAL OUTPUT |
|||||||
|---|---|---|---|---|---|---|---|
|
Model No |
INPUT VOLTAGE |
OUTPUT VOLTAGE |
OUTPUT CURRENT |
INPUT CURRENT(mA) |
EFF |
ISOLATION(VDC) |
|
|
FULL LOAD |
NO LOAD |
||||||
|
WLD-1205H |
9-18 |
+/-5 |
+/-500 |
556 |
29 |
75 |
1000 |
|
WLD-1209H |
9-18 |
+/-9 |
+/-278 |
525 |
28 |
79 |
1000 |
|
WLD-1212H |
9-18 |
+/-12 |
+/-208 |
519 |
28 |
80 |
1000 |
|
WLD-1215H |
9-18 |
+/-15 |
+/-167 |
514 |
28 |
81 |
1000 |
|
WLD-2405H |
18-36 |
+/-5 |
+/-500 |
270 |
14 |
77 |
1000 |
|
WLD-2409H |
18-36 |
+/-9 |
+/-278 |
257 |
14 |
81 |
1000 |
|
WLD-2412H |
18-36 |
+/-12 |
+/-208 |
254 |
13 |
82 |
1000 |
|
WLD-2415H |
18-36 |
+/-15 |
+/-167 |
251 |
12 |
83 |
1000 |
|
WLD-4805H |
36-72 |
+/-5 |
+/-500 |
135 |
8 |
77 |
1000 |
|
WLD-4809H |
36-72 |
+/-9 |
+/-278 |
126 |
7 |
83 |
1000 |
|
WLD-4812H |
36-72 |
+/-12 |
+/-208 |
126 |
7 |
83 |
1000 |
|
WLD-4815H |
36-72 |
+/-15 |
+/-167 |
123 |
7 |
85 |
1000 |
|
2:1 5W SINGLE OUTPUT |
|||||||
|---|---|---|---|---|---|---|---|
|
Model No |
INPUT VOLTAGE |
OUTPUT VOLTAGE |
OUTPUT CURRENT |
INPUT CURRENT(mA) |
EFF |
ISOLATION(VDC) |
|
|
FULL LOAD |
NO LOAD |
||||||
|
WLS-0512H-3K |
4.5-9 |
12 |
417 |
1420 |
30 |
70 |
3000 |
|
WLS-0515H-3K |
4.5-9 |
15 |
333 |
1390 |
20 |
72 |
3000 |
|
WLS-1203.3H-3K |
9-18 |
3.3 |
1500 |
589 |
33 |
70 |
3000 |
|
WLS-1205H-3K |
9-18 |
5 |
1000 |
556 |
30 |
75 |
3000 |
|
WLS-1209H-3K |
9-18 |
9 |
556 |
520 |
30 |
80 |
3000 |
|
WLS-1212H-3K |
9-18 |
12 |
417 |
519 |
28 |
80 |
3000 |
|
WLS-1215H-3K |
9-18 |
15 |
333 |
514 |
28 |
81 |
3000 |
|
WLS-2403.3H-3K |
18-36 |
3.3 |
1500 |
290 |
16 |
71 |
3000 |
|
WLS-2405H-3K |
18-36 |
5 |
1000 |
270 |
14 |
77 |
3000 |
|
WLS-2409H-3K |
18-36 |
9 |
556 |
257 |
14 |
81 |
3000 |
|
WLS-2412H-3K |
18-36 |
12 |
417 |
254 |
13 |
82 |
3000 |
|
WLS-2415H-3K |
18-36 |
15 |
333 |
251 |
13 |
83 |
3000 |
|
WLS-4803.3H-3K |
36-72 |
3.3 |
1500 |
135 |
10 |
77 |
3000 |
|
WLS-4805H-3K |
36-72 |
5 |
1000 |
135 |
8 |
77 |
3000 |
|
WLS-4809H-3K |
36-72 |
9 |
556 |
126 |
7 |
83 |
3000 |
|
WLS-4812H-3K |
36-72 |
12 |
417 |
126 |
7 |
83 |
3000 |
|
WLS-4815H-3K |
36-72 |
15 |
333 |
123 |
7 |
85 |
3000 |
DC/DC CONVERTER
WIDE INPUT RANGE - 2:1
WL SERIES
OUTPUT SPECIFICATIONS
SIMPLIFIED SCHEMATIC

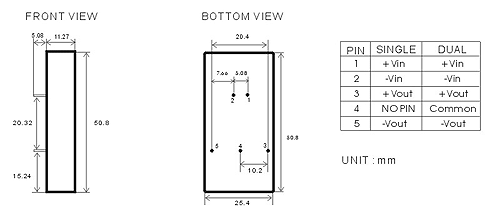

MECHANICAL DIMENSIONS &
RECOMMENDED FOOTPRINT DETAILS
|
2:1 5W DUAL OUTPUT |
|||||||
|---|---|---|---|---|---|---|---|
|
Model No |
INPUT VOLTAGE |
OUTPUT VOLTAGE |
OUTPUT CURRENT |
INPUT CURRENT(mA) |
EFF |
ISOLATION(VDC) |
|
|
FULL LOAD |
NO LOAD |
||||||
|
WLD-1205H-3K |
9-18 |
+/-5 |
+/-500 |
556 |
29 |
75 |
3000 |
|
WLD-1209H-3K |
9-18 |
+/-9 |
+/-278 |
525 |
28 |
79 |
3000 |
|
WLD-1212H-3K |
9-18 |
+/-12 |
+/-208 |
519 |
28 |
80 |
3000 |
|
WLD-1215H-3K |
9-18 |
+/-15 |
+/-167 |
514 |
28 |
81 |
3000 |
|
WLD-2405H-3K |
18-36 |
+/-5 |
+/-500 |
270 |
14 |
77 |
3000 |
|
WLD-2409H-3K |
18-36 |
+/-9 |
+/-278 |
257 |
14 |
81 |
3000 |
|
WLD-2412H-3K |
18-36 |
+/-12 |
+/-208 |
254 |
13 |
82 |
3000 |
|
WLD-2415H-3K |
18-36 |
+/-15 |
+/-167 |
251 |
12 |
83 |
3000 |
|
WLD-4805H-3K |
36-72 |
+/-5 |
+/-500 |
135 |
8 |
77 |
3000 |
|
WLD-4809H-3K |
36-72 |
+/-9 |
+/-278 |
126 |
7 |
83 |
3000 |
|
WLD-4812H-3K |
36-72 |
+/-12 |
+/-208 |
126 |
7 |
83 |
3000 |
|
WLD-4815H-3K |
36-72 |
+/-15 |
+/-167 |
123 |
7 |
85 |
3000 |
 |
 |
 |
 |
 |
 |
