DC/DC CONVERTER
REGULATED TYPE
RH SERIES
OUTPUT SPECIFICATIONS

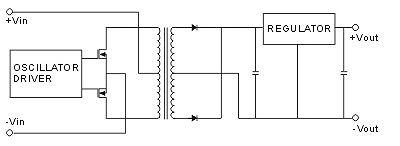

SIMPLIFIED SCHEMATIC

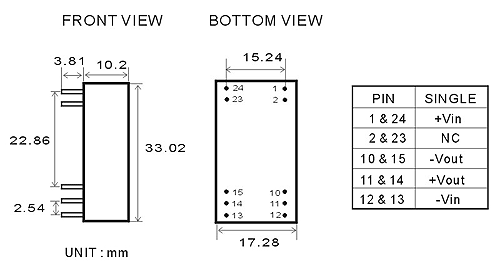

MECHANICAL DIMENSIONS &
RECOMMENDED FOOTPRINT DETAILS
|
ELECTRICAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Input Voltage Range |
+/-10% max |
Line Regulation |
+/-0.5% max |
|
Input Filter |
Capacitor Typ |
Load Regulation |
+/-0.5% max |
|
Protection |
Fuse Recommended |
Minimum Load |
10% of Full Load |
|
Voltage Setpoint Accuracy |
+/-2% max |
Short Circuit Protection |
Current Limit Protection |
|
Temperature Coefficient |
+/-0.03%/oC |
Short Circuit Restart |
Automatic |
|
Ripple & Noise(20MHz BW) |
100mVp-p max |
Transient Response |
200uS max |
|
Mechanical Characteristics |
|
|---|---|
|
Length:32.5mm |
Height: 10.2mm |
|
Width: 17.0mm |
Weight: 10.1g Typ |
|
GENERAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Operating Temperature |
-25oC to +71oC |
Isolation Capacitance |
80pF max |
|
Storage Temperature |
-55oC to +125oC |
Switching Frequency |
50 KHz min |
|
Humidity |
95% max |
MTBF |
>850,000 Hours at 25oC |
|
Cooling |
Free-Air Convection |
Case Material |
Non-Conductive Plastic |
|
Efficiency |
50% min |
Conducted Emissions |
EN55022 Class A |
|
Isolation Voltage |
1000 VDC min |
Radiated Emissions |
EN55022 Class A |
|
Isolation Resistance |
109 ohms min |
|
|
|
1.8W SINGLE OUTPUT |
|||||||
|---|---|---|---|---|---|---|---|
|
Model No |
INPUT VOLTAGE |
OUTPUT VOLTAGE |
OUTPUT CURRENT |
INPUT CURRENT(mA) |
EFF |
ISOLATION(VDC) |
|
|
FULL LOAD |
NO LOAD |
||||||
|
RHS-0505 |
4.5-5.5 |
5 |
360 |
680 |
40 |
53 |
1000 |
|
RHS-0509 |
4.5-5.5 |
9 |
200 |
620 |
40 |
58 |
1000 |
|
RHS-0512 |
4.5-5.5 |
12 |
150 |
620 |
38 |
58 |
1000 |
|
RHS-0515 |
4.5-5.5 |
15 |
120 |
600 |
38 |
60 |
1000 |
|
RHS-1205 |
10.8-13.2 |
5 |
360 |
267 |
18 |
56 |
1000 |
|
RHS-1209 |
10.8-13.2 |
9 |
200 |
250 |
18 |
60 |
1000 |
|
RHS-1212 |
10.8-13.2 |
12 |
150 |
250 |
16 |
60 |
1000 |
|
RHS-1215 |
10.8-13.2 |
15 |
120 |
241 |
16 |
62 |
1000 |
|
RHS-2405 |
21.6-26.4 |
5 |
360 |
129 |
9 |
58 |
1000 |
|
RHS-2409 |
21.6-26.4 |
9 |
200 |
121 |
9 |
62 |
1000 |
|
RHS-2412 |
21.6-26.4 |
12 |
150 |
121 |
9 |
62 |
1000 |
|
RHS-2415 |
21.6-26.4 |
15 |
120 |
117 |
8 |
64 |
1000 |
|
RHS-4805 |
43.2-52.8 |
5 |
360 |
66 |
5 |
57 |
1000 |
|
RHS-4809 |
43.2-52.8 |
9 |
200 |
64 |
5 |
59 |
1000 |
|
RHS-4812 |
43.2-52.8 |
12 |
150 |
63 |
5 |
60 |
1000 |
|
RHS-4815 |
43.2-52.8 |
15 |
120 |
63 |
5 |
60 |
1000 |
 |
 |
 |
 |
 |
 |
