DC/DC CONVERTER
REGULATED TYPE
RCB SERIES
OUTPUT SPECIFICATIONS

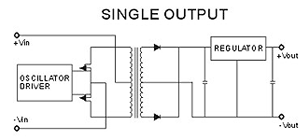

SIMPLIFIED SCHEMATIC

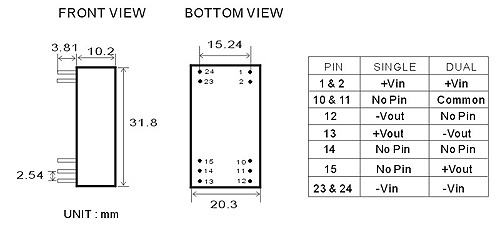

MECHANICAL DIMENSIONS &
RECOMMENDED FOOTPRINT DETAILS
|
ELECTRICAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Input Voltage Range |
+/-10% max |
Line Regulation |
+/-0.5% max |
|
Input Filter |
Pi Network |
Load Regulation |
+/-0.5% max |
|
Protection |
Fuse Recommended |
Minimum Load |
10% of Full Load |
|
Voltage Setpoint Accuracy |
+/-3% max |
Short Circuit Protection |
Current Limit Protection |
|
Temperature Coefficient |
+/-0.03%/oC |
Short Circuit Restart |
Automatic |
|
Ripple & Noise(20MHz BW) |
100mVp-p max |
Transient Response |
200uS max |
|
Mechanical Characteristics |
|
|---|---|
|
Length:31.8mm |
Height: 10.2mm |
|
Width: 20.3mm |
Weight: 12.0g-14.4g |
|
GENERAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Operating Temperature |
-25oC to +71oC |
Isolation Capacitance |
80pF max |
|
Storage Temperature |
-55oC to +125oC |
Switching Frequency |
50 KHz min |
|
Humidity |
95% max |
MTBF |
>850,000 Hours at 25oC |
|
Cooling |
Free-Air Convection |
Case Material |
Non-Conductive Plastic |
|
Efficiency |
60% min |
Conducted Emissions |
EN55022 Class A |
|
Isolation Voltage |
3000 VDC min |
Radiated Emissions |
EN55022 Class A |
|
Isolation Resistance |
109 ohms min |
|
|
|
2W-3W DUAL OUTPUT |
|||||||
|---|---|---|---|---|---|---|---|
|
Model No |
INPUT VOLTAGE |
OUTPUT VOLTAGE |
OUTPUT CURRENT |
INPUT CURRENT |
EFF |
ISOLATION(VDC) |
|
|
FULL LOAD |
NO LOAD |
||||||
|
RCBD-0512-3K |
4.5-5.5 |
+/-12 |
+/-83 |
634 |
80 |
63 |
3000 |
|
RCBD-0515-3K |
4.5-5.5 |
+/-15 |
+/-66 |
634 |
80 |
63 |
3000 |
|
RCBD-1212-3K |
10.8-13.2 |
+/-12 |
+/-83 |
256 |
40 |
65 |
3000 |
|
RCBD-1215-3K |
10.8-13.2 |
+/-15 |
+/-100 |
378 |
45 |
66 |
3000 |
|
RCBD-2412-3K |
21.6-26.4 |
+/-12 |
+/-83 |
128 |
20 |
65 |
3000 |
|
RCBD-2415-3K |
21.6-26.4 |
+/-15 |
+/-100 |
192 |
25 |
65 |
3000 |
|
RCBD-4812-3K |
43.2-52.8 |
+/-12 |
+/-83 |
65 |
10 |
64 |
3000 |
|
RCBD-4815-3K |
43.2-52.8 |
+/-15 |
+/-100 |
97 |
12 |
64 |
3000 |
|
2W-3W SINGLE OUTPUT |
|||||||
|---|---|---|---|---|---|---|---|
|
Model No |
INPUT VOLTAGE |
OUTPUT VOLTAGE |
OUTPUT CURRENT |
INPUT CURRENT(mA) |
EFF |
ISOLATION(VDC) |
|
|
FULL LOAD |
NO LOAD |
||||||
|
RCBS-0505-3K |
4.5-5.5 |
5 |
400 |
645 |
80 |
62 |
3000 |
|
RCBS-0512-3K |
4.5-5.5 |
12 |
165 |
634 |
80 |
63 |
3000 |
|
RCBS-0515-3K |
4.5-5.5 |
15 |
133 |
634 |
80 |
63 |
3000 |
|
RCBS-1205-3K |
10.8-13.2 |
5 |
400 |
264 |
40 |
63 |
3000 |
|
RCBS-1212-3K |
10.8-13.2 |
12 |
165 |
256 |
40 |
65 |
3000 |
|
RCBS-1215-3K |
10.8-13.2 |
15 |
200 |
378 |
45 |
66 |
3000 |
|
RCBS-2405-3K |
21.6-26.4 |
5 |
400 |
132 |
20 |
63 |
3000 |
|
RCBS-2412-3K |
21.6-26.4 |
12 |
165 |
128 |
20 |
65 |
3000 |
|
RCBS-2415-3K |
21.6-26.4 |
15 |
200 |
192 |
25 |
65 |
3000 |
|
RCBS-4805-3K |
43.2-52.8 |
5 |
400 |
66 |
10 |
63 |
3000 |
|
RCBS-4812-3K |
43.2-52.8 |
12 |
165 |
65 |
10 |
64 |
3000 |
|
RCBS-4815-3K |
43.2-52.8 |
15 |
200 |
97 |
12 |
64 |
3000 |
 |
 |
 |
 |
 |
 |
