GENERAL SPECIFICATIONS

Case Type Slim
Case Size (L*W*H) mm 147x72x20
Output Voltage Adjust Mode Auto Detect
Output Voltage Display Mode Digital
Output Plug Type 7 Tip Plug
Rated Input Voltage (50Hz/60Hz) 100-240V
Vibration Input Frequency Range 4763Hz
Output Power (max) 120W
Output Current (max) 6.0A
Standby Power 0.4W
Efficiency 87%
Output Voltage(Rating Load Current) 15,16,18,19,20V@6.0A
USB Output Voltage(Rating Load Current) 5VDC@2A
Ripple & Noise 1%
Overload Protection Y
Short Circuit Protection Y
Line Regulation +/-1%
Load Regulation +/-5%
Hi-Pot Test 3000V
Hold-up Time 5ms
Operation Temperature 040J
Operation Humidity 20%80%
Storage Temperature -20 80J
Storage Humidity 5%90%
MTBF 50000 Hours
Safty FCC
Weight 350g
Applicable for computer Brand Acer,Asus,Clevo,NEC,Compaq,
Dell,HP, IBM,Lenovo,Samsung,
Sharp,Sony,Toshiba,LCD Monitor
& Protable device or Machines
DC PLUG Plug type : MP-2
HG1(15V): 6.3X3.0
HG2(16V): 6.5X4.3x1.4
HG3(16V): 5.5X2.5
HG4(18.5V):4.8x1.7
HG5(19V): 5.5x2.5
HG6(19V): 5.5X2.1
HG7(19V): 5.0X3.3x1.0
00title405a13

MULTI-ADJUSTABLE SWITCHING ADAPTOR
DESKTOP WITH INPUT INLET IEC320 C8 SOCKET

MODEL: SA120-150200-U8

PRODUCT PICTURE &
CASE DIMENSION

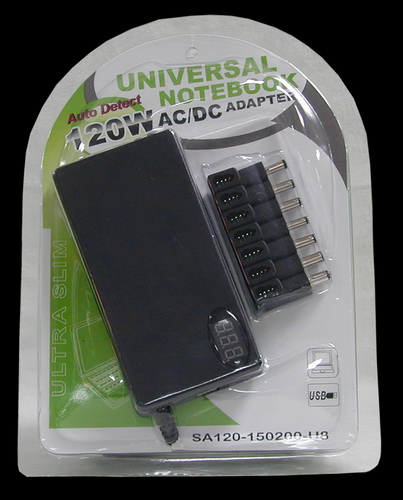

SA120-Picture

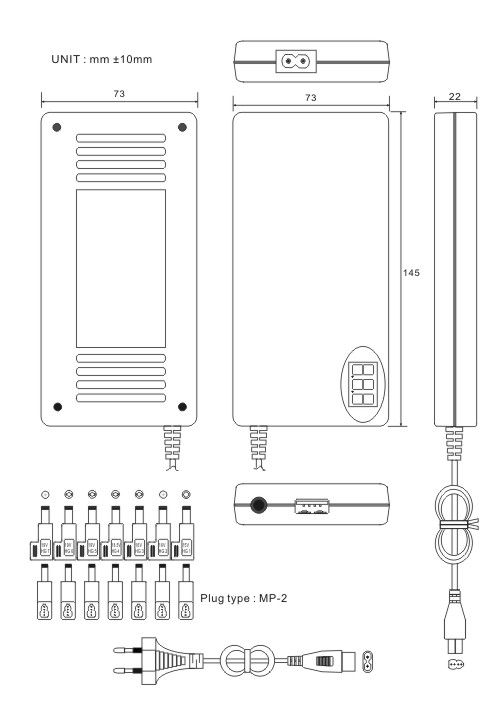

SA120-Dimension
