GENERAL SPECIFICATIONS

Case Type AC/DC 2 in 1
Case Size (L*W*H) mm 144x58x30
Output Voltage Adjust Mode Auto Detect
Output Voltage Display Mode Digital
Output Plug Type 7 TIP Plug
Rated Input Voltage (50Hz/60Hz) 100240VAC / 12VDC
Vibration Input Frequency Range 47 63Hz / N
Output Power (max) 90W
Output Current (max ) 4.5A
Standby Power 0.4W
Efficiency 87%
Output Voltage(Rating Load Current) 15,16,18.5,19,20V@4.5A
USB Port Output Voltage(Rating Load Current) 5VDC@1A
Ripple & Noise 1%
Overload Protection Y
Short Circuit Protection Y Y Y
Line Regulation +/-1%
Load Regulation +/-5%
Hi-Pot Test 3000V
Hold-up Time 5ms
Operation Temperature 0 40J
Operation Humidity 20% 80%
Storage Temperature -10 70J
Storage Humidity 5% 90%
MTBF 50000 Hours
Safty FCC,CE
Weight 470g
Applicable for computer Brand Acer,Asus,Clevo,NEC,Compaq,
Dell,HP, IBM,Lenovo,Samsung,
Sharp,Sony,Toshiba,LCD Monitor
& Protable device or Machines
DC PLUG Plug type : MP-5
A: 6.5X4.3x1.4
B: 6.3X3.0
C: 5.5X2.5
D: 5.5X2.1
E: 5.5X1.7
F: 4.75X1.7
G: 4.0X1.7
H: 5.0X3.3x1.0
00title405a13

MULTI-ADJUSTABLE SWITCHING ADAPTOR
DESKTOP WITH INPUT INLET IEC320 C8 SOCKET

MODEL: TA90-150200-BU8

PRODUCT PICTURE &
CASE DIMENSION

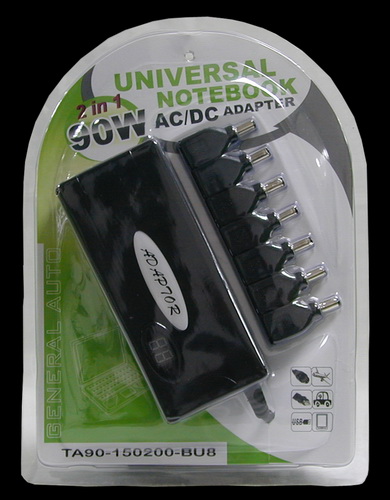

TA90-Picture

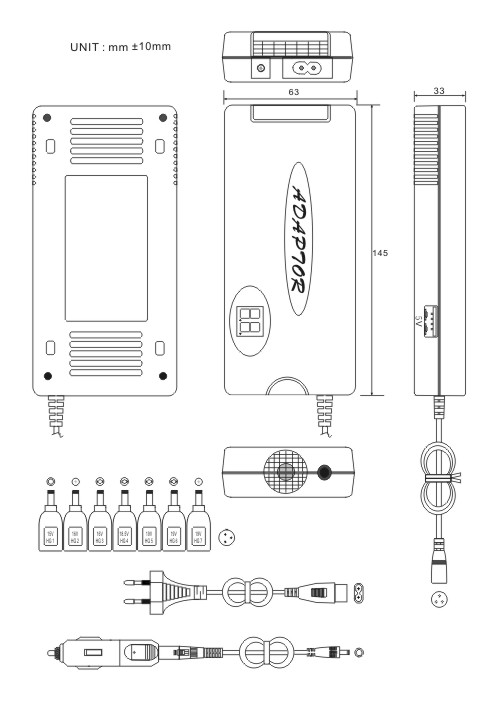

TA90-Dimension
