GENERAL SPECIFICATIONS

Case Type General
Case Size (L*W*H) mm 110x55x30
Output Voltage Adjust Mode Auto Detect
Output Voltage Display Mode Digital
Output Plug Type 7 TIP Plug
Rated Input Voltage (50Hz/60Hz) 1116VDC
Vibration Input Frequency Range N
Output Power (max) 6A
Output Current (max ) 0.4W
Standby Power 120W
Efficiency 87%
Output Voltage(Rating Load Current) 15,16,18,19,20V@6A
USB Port Output Voltage(Rating Load Current) 5VDC@1A
Ripple & Noise 1%
Overload Protection Y
Short Circuit Protection Y
Line Regulation +/-1%
Load Regulation +/-5%
Hi-Pot Test 3000V
Hold-up Time 5ms
Operation Temperature 0 40J
Operation Humidity 20%-80%
Storage Temperature -1070J
Storage Humidity 5%90%
MTBF 50000 Hours
Safty FCC
Weight 350g
Applicable for computer Brand Acer,Asus,Clevo,NEC,Compaq,
Dell,HP, IBM,Lenovo,Samsung,
Sharp,Sony,Toshiba,LCD Monitor
& Protable device or Machines
DC PLUG Plug type : MP-2
HG1(15V): 6.3X3.0
HG2(16V): 6.5X4.3x1.4
HG3(16V): 5.5X2.5
HG4(18.5V): 4.8x1.7
HG5(19V): 5.5x2.5
HG6(19V): 5.5X2.1
HG7(19V): 5.0X3.3x1.0
00title405a13

MULTI-ADJUSTABLE SWITCHING ADAPTOR
Desktop Cord In / Out with Cigarette Plug

MODEL: TM120-150200-DUC

PRODUCT PICTURE &
CASE DIMENSION

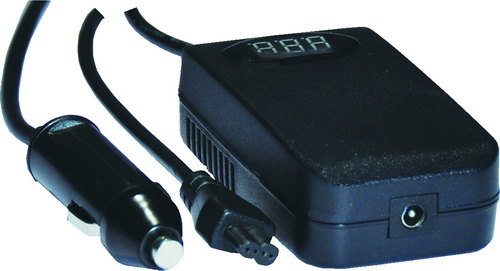

TM120-Picture
TM120-Dimension
