GENERAL SPECIFICATIONS

Case Type General
Case Size (L*W*H) mm 157x63x37
Output Voltage Adjust Mode Manual
Output Voltage Display Mode Digital
Output Plug Type 8 Tip Plug
Rated Input Voltage (50Hz/60Hz) 100-240V
Vibration Input Frequency Range 4763Hz
Output Power (max) 150W
Output Current (max) 7.0A
Standby Power 0.8W
Efficiency 85%
Output Voltage(Rating Load Current) 12,15,16,18,19,20V@7.0A, 22,24V@6.25A
USB Port Output Voltage(Rating Load Current) 5VDC@1.8A
Ripple & Noise 1%
Overload Protection Y
Short Circuit Protection Y
Line Regulation +/-1%
Load Regulation +/-5%
Hi-Pot Test 3000V
Hold-up Time 5ms
Operation Temperature 040J
Operation Humidity 20%80%
Storage Temperature -20 80J
Storage Humidity 5%90%
MTBF 50000 Hours
Safty FCC
Weight 550g
Applicable for computer Brand Acer,Asus,Clevo,NEC,Compaq,
Dell,HP, IBM,Lenovo,Samsung,
Sharp,Sony,Toshiba,LCD Monitor
& Protable device or Machines
DC PLUG Plug type : MP-5
A: 6.5X4.3x1.4
B: 6.3X3.0
C: 5.5X2.5
D: 5.5X2.1
E: 5.5X1.7
F: 4.75X1.7
G: 4.0X1.7
H: 5.0X3.3x1.0
00title405a13

MULTI-ADJUSTABLE SWITCHING ADAPTOR
DESKTOP WITH INPUT INLET IEC320 C8 SOCKET

MODEL: TM150-120240-U8

PRODUCT PICTURE &
CASE DIMENSION

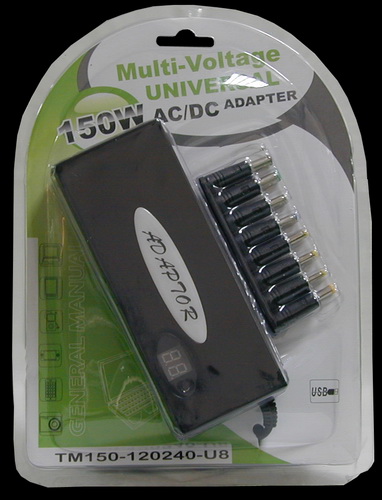

TM150-Picture

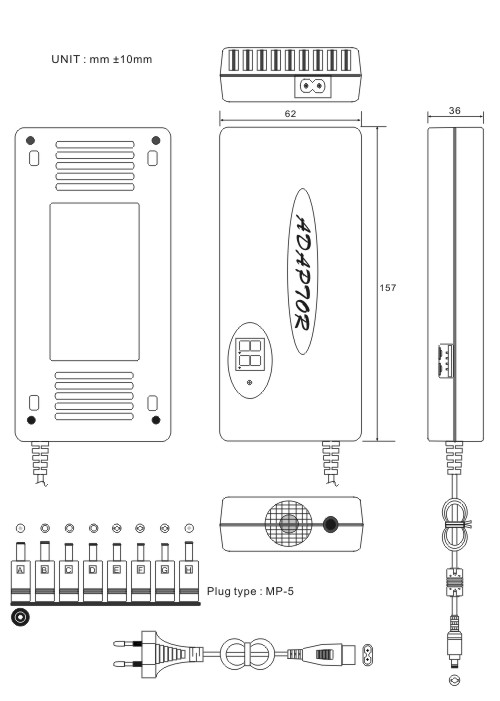

TM150-Dimension
