GENERAL SPECIFICATIONS

Case Type General
Case Size (L*W*H) mm 97x44x29
Output Voltage Adjust Mode Auto Detect
Output Voltage Display Mode LED
Output Plug Type 5 Tip Plug
Rated Input Voltage (50Hz/60Hz) 100-240V
Vibration Input Frequency Range 47¡ã63Hz
Output Power (max) 40W
Output Current (max) 3.3A
Standby Power 0.3W
Efficiency 87%
Output Voltage(Rating Load Current) 9.5,12V@3.3A / 19,20V@2A
Ripple & Noise 1%
Overload Protection Y
Short Circuit Protection Y
Line Regulation +/-1%
Load Regulation +/-5%
Hi-Pot Test 3000V
Hold-up Time 5ms
Operation Temperature 0¡ã40¢J
Operation Humidity 20%¡ã80%
Storage Temperature -20¡ã 80¢J
Storage Humidity 5%¡ã90%
MTBF 50000 Hours
Safty FCC,CE
Weight 260g
Applicable for computer Brand Acer,Asus,Clevo,NEC,Compaq,
Dell,HP, IBM,Lenovo,Samsung,
Sharp,Sony,Toshiba,LCD Monitor
& Protable device or Machines
DC PLUG Plug type : MP-3
A (9.5V): 4.8x1.7
B (12V): 4.8x1.7
C (19V): 4.8x1.7
D (19V): 4.0x1.7
E (20V):5.5X2.5
00title405a13

MULTI-ADJUSTABLE SWITCHING ADAPTOR
DESKTOP WITH INPUT INLET IEC320 C8 SOCKET

MODEL: TA40-095200-8

PRODUCT PICTURE &
CASE DIMENSION

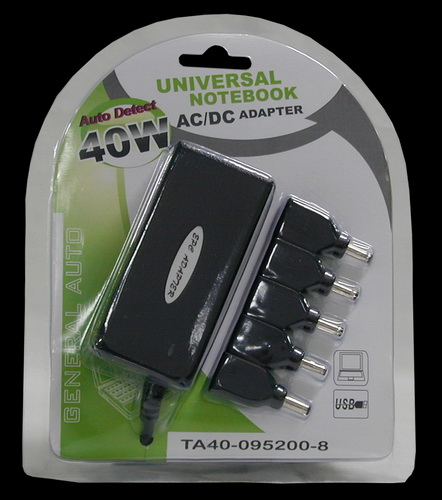

TA40-Picture

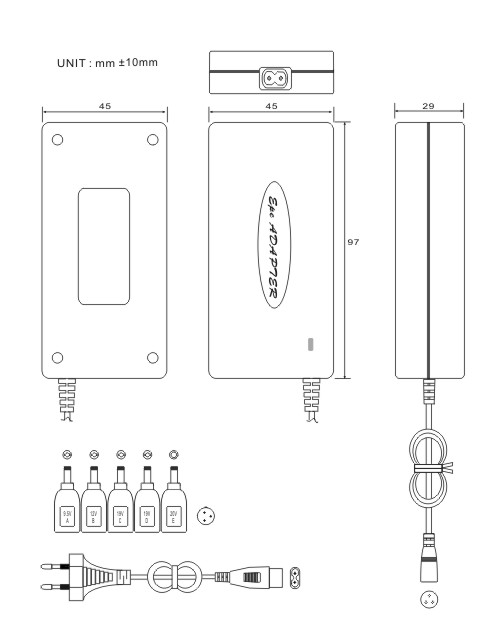

TA40-Dimension
