GENERAL SPECIFICATIONS

Case Type General
Case Size (L*W*H) mm 117*60*35
Output Voltage Adjust Mode Manual
Output Voltage Display Mode LED
Output Plug Type 8 TIP Plug
Rated Input Voltage (50Hz/60Hz) 100-240V
Vibration Input Frequency Range 47¡ã63Hz
Output Power (max) 70W
Output Current (max) 3.5A
Standby Power 1W
Efficiency 80%
Output Voltage(Rating Load Current) 12,15,16,18,19,20V@3.5A / 24V@2.91A
Ripple & Noise 1%
Overload Protection Y
Short Circuit Protection Y
Line Regulation +/-1%
Load Regulation +/-5%
Hi-Pot Test 3000V
Hold-up Time 5ms
Operation Temperature 0¡ã40¢J
Operation Humidity 20%¡ã80%
Storage Temperature -20¡ã 80¢J
Storage Humidity 5%¡ã90%
MTBF 50000 Hours
Safty FCC
Weight 320g
Applicable for computer Brand Acer,Asus,Clevo,NEC,Compaq,
Dell,HP, IBM,Lenovo,Samsung,
Sharp,Sony,Toshiba,LCD Monitor
& Protable device or Machines
DC PLUG Plug type : MP-5
A: 6.5x4.3x1.4
B: 6.3x3.0
C: 5.5x2.5
D: 5.5x2.1
E: 5.5x1.7
F: 4.75x1.7
G: 4.0x1.7
H: 5.0x3.3x1.0
00title405a13

MULTI-ADJUSTABLE SWITCHING ADAPTOR
DESKTOP WITH INPUT INLET IEC320 C8 SOCKET

MODEL: TM70-120240-8

PRODUCT PICTURE &
CASE DIMENSION

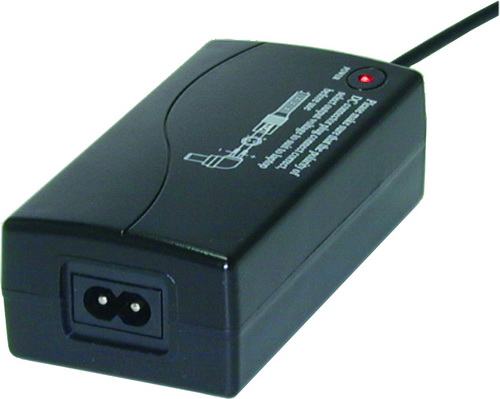

TM70-Picture

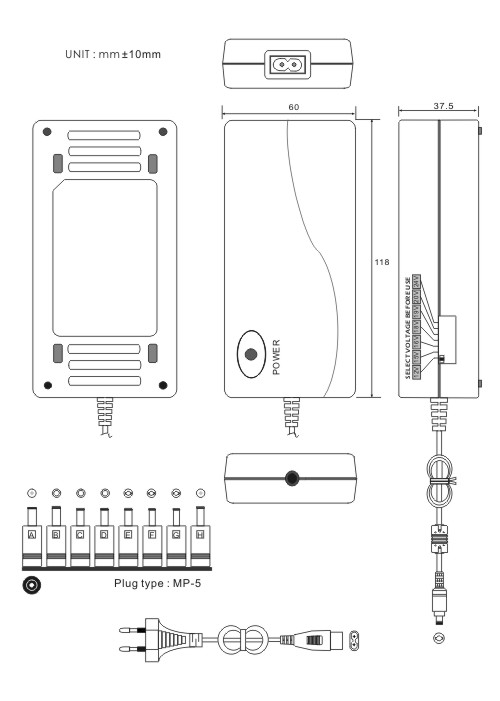

TM70-Dimension
