GENERAL SPECIFICATIONS

Case Type General
Case Size (L*W*H) mm 100x54x25
Output Voltage Adjust Mode Manual
Output Voltage Display Mode LED
Output Plug Type 8 TIP Plug
Rated Input Voltage (50Hz/60Hz) 1116VDC
Vibration Input Frequency Range N
Output Power (max) 4A
Output Current (max ) 1W
Standby Power 80W
Efficiency 80%
Output Voltage(Rating Load Current) 12,15,16,18,19,20V@4A, 24V@3.34A
USB Port Output Voltage(Rating Load Current) 5VDC@1A
Ripple & Noise 1%
Overload Protection Y
Short Circuit Protection Y
Line Regulation +/-5%
Load Regulation +/-5%
Hi-Pot Test 3000V
Hold-up Time 5ms
Operation Temperature 0 40J
Operation Humidity 20%-80%
Storage Temperature -1070J
Storage Humidity 5%90%
MTBF 50000 Hours
Safty FCC
Weight 310g
Applicable for computer Brand Acer,Asus,Clevo,NEC,Compaq,
Dell,HP, IBM,Lenovo,Samsung,
Sharp,Sony,Toshiba,LCD Monitor
& Protable device or Machines
DC PLUG Plug type : MP-5
A: 6.5X4.3
B: 6.3X3.0
C: 5.5X2.5
D: 5.5X2.1
E: 5.5X1.7
F: 4.75X1.7
G: 4.0X1.7
H: 5.0X3.3
00title405a13

MULTI-ADJUSTABLE SWITCHING ADAPTOR
Desktop Cord In / Out with Cigarette Plug

MODEL: TM80-120240-DUC

PRODUCT PICTURE &
CASE DIMENSION

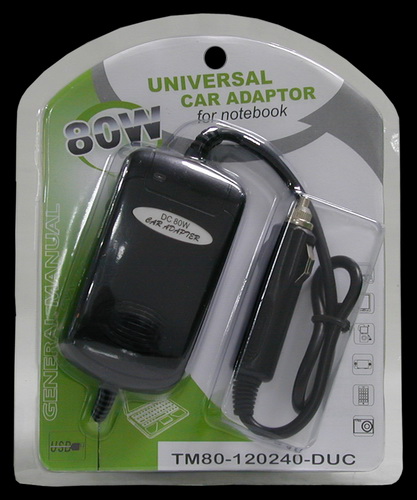

TM80-Picture

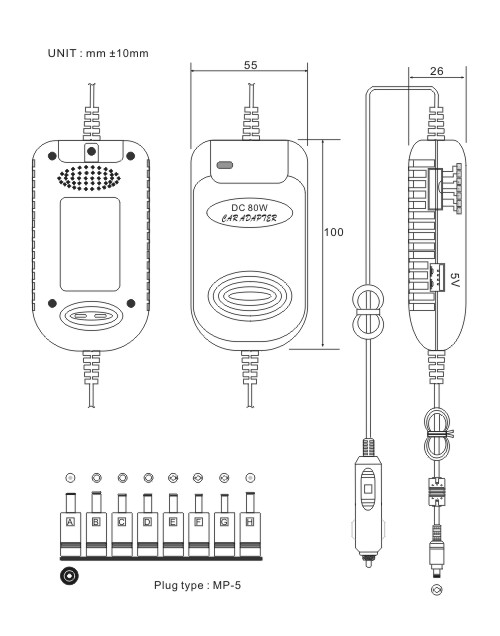

TM80-Dimension
