GENERAL SPECIFICATIONS |
|
|---|---|
| Case Type | General |
| Case Size (L*W*H) mm | 130x55x30 |
| Output Voltage Adjust Mode | Manual |
| Output Voltage Display Mode | LED X7 |
| Output Plug Type | 8 Tip Plug |
| Rated Input Voltage (50Hz/60Hz) | 100-240V |
| Vibration Input Frequency Range | 47¡ã63Hz |
| Output Power (max) | 90W |
| Output Current (max) | 4.5A |
| Standby Power | 0.4W |
| Efficiency | 87% |
| Output Voltage(Rating Load Current) | 12,15,16,18,19,20V@4.5A, 24V@3.75A |
| USB Port Output Voltage(Rating Load Current) | 5VDC@1A* 2 |
| Ripple & Noise | 1% |
| Overload Protection | Y |
| Short Circuit Protection | Y |
| Line Regulation | +/-1% |
| Load Regulation | +/-5% |
| Hi-Pot Test | 3000V |
| Hold-up Time | 5ms |
| Operation Temperature | 0¡ã40¢J |
| Operation Humidity | 20%¡ã80% |
| Storage Temperature | -20¡ã 80¢J |
| Storage Humidity | 5%¡ã90% |
| MTBF | 50000 Hours |
| Safty | FCC |
| Weight | 350g |
| Applicable for computer Brand | Acer,Asus,Clevo,NEC,Compaq, Dell,HP, IBM,Lenovo,Samsung, Sharp,Sony,Toshiba,LCD Monitor & Protable device or Machines |
| DC PLUG | Plug type : MP-5 A: 6.5X4.3x1.4 B: 6.3X3.0 C: 5.5X2.5 D: 5.5X2.1 E: 5.5X1.7 F: 4.75X1.7 G: 4.0X1.7 H: 5.0X3.3x1.0 |
MULTI-ADJUSTABLE SWITCHING ADAPTOR
DESKTOP WITH INPUT INLET IEC320 C8 SOCKET
MODEL: TM90-120240-U8

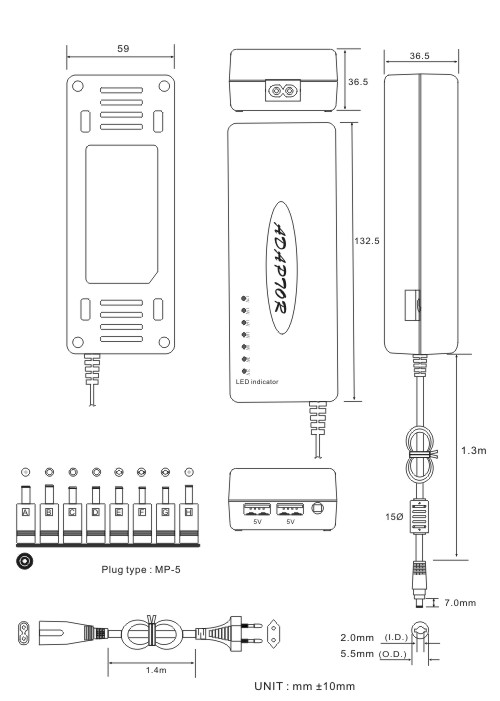

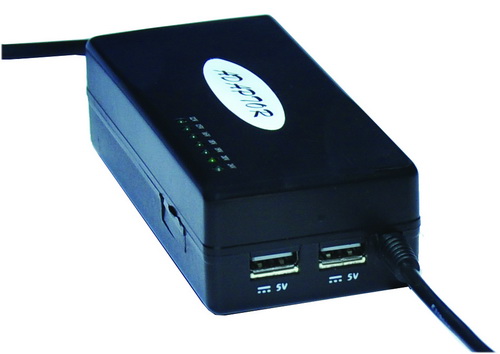

PRODUCT PICTURE &
CASE DIMENSION
