GENERAL SPECIFICATIONS

Case Type 2 Stage
Case Size (L*W*H) mm 142x61.5x38
Output Voltage Adjust Mode Manual
Output Voltage Display Mode LED X2
Output Plug Type 8 Tip Plug
Rated Input Voltage (50Hz/60Hz) 100-240V
Vibration Input Frequency Range 47¡ã63Hz
Output Power (max) 90W
Output Current (max) 5.6A
Standby Power 0.8W
Efficiency 85%
Output Voltage(Rating Load Current) 15-17V@5.6A, 18-20V@4.7A
USB Port Output Voltage(Rating Load Current) 5VDC@1A* 2
Ripple & Noise 500mVp-p
Overload Protection Y
Short Circuit Protection Y
Line Regulation +/-1%
Load Regulation +/-5%
Hi-Pot Test 3000V
Hold-up Time 5ms
Operation Temperature 0¡ã40¢J
Operation Humidity 20%¡ã80%
Storage Temperature -20¡ã 80¢J
Storage Humidity 5%¡ã90%
MTBF 50000 Hours
Safty FCC
Weight 360g
Applicable for computer Brand Acer,Asus,Clevo,NEC,Compaq,
Dell,HP, IBM,Lenovo,Samsung,
Sharp,Sony,Toshiba,LCD Monitor
& Protable device or Machines
DC PLUG Plug type : MP-5
A: 6.5X4.3x1.4
B: 6.3X3.0
C: 5.5X2.5
D: 5.5X2.1
E: 5.5X1.7
F: 4.75X1.7
G: 4.0X1.7
H: 5.0X3.3x1.0
00title405a13

MULTI-ADJUSTABLE SWITCHING ADAPTOR
DESKTOP WITH INPUT INLET IEC320 C8 SOCKET

MODEL: TM90-150200-U8

PRODUCT PICTURE &
CASE DIMENSION

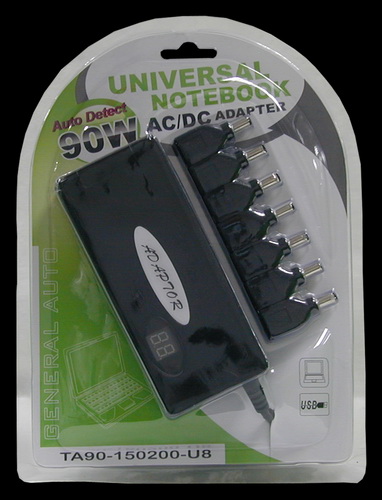

TM90-Picture

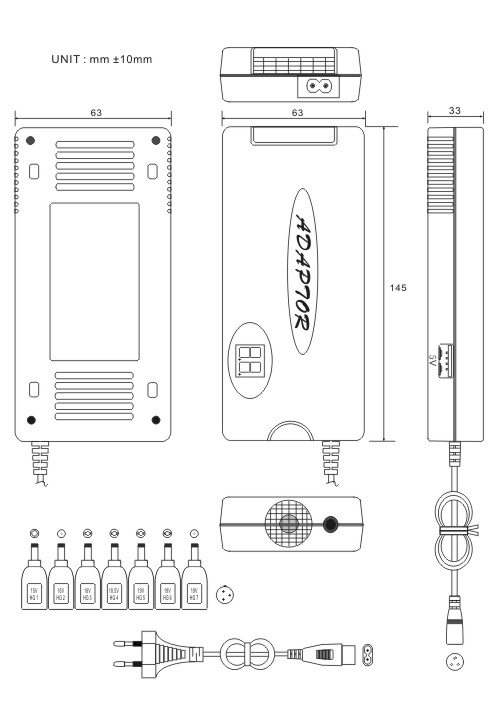

TM90-Dimension
