| ELECTRICAL SPECIFICATIONS |
|||
|---|---|---|---|
| Input |
Output |
||
Input Voltage Range |
90-264V AC |
Output Voltage |
10 - 48V DC |
Input Frequency |
47-63Hz |
Output Current |
10A(120VA max) |
Input Current |
2.0A(max) |
Output Tolerance |
5% |
|
|
|
Ripple & Noise |
2% mV p-p max |
|
|
|
Efficiency |
>80% |

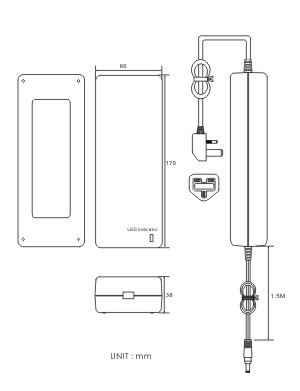

OUTPUT SPECIFICATIONS
SERIES NO. : CB120A
SWITCHING ADAPTOR
DESKTOP-CORD IN/OUT
120A SERIES
PART NO. |
OUTPUT |
|
VOLT |
CURRENT (max) |
|
CB120A-10010000 |
10.0V |
10.00A |
CB120A-10510000 |
10.5V |
10.00A |
CB120A-11010000 |
11.0V |
10.00A |
CB120A-11510000 |
11.5V |
10.00A |
CB120A-12010000 |
12.0V |
10.00A |
CB120A-1259600 |
12.5V |
9.60A |
CB120A-1309230 |
13.0V |
9.23A |
CB120A-1358880 |
13.5V |
8.88A |
CB120A-1408570 |
14.0V |
8.57A |
CB120A-1458270 |
14.5V |
8.27A |
CB120A-1508000 |
15.0V |
8.00A |
CB120A-1557740 |
15.5V |
7.74A |
CB120A-1607500 |
16.0V |
7.50A |
CB120A-1657270 |
16.5V |
7.27A |
CB120A-1707050 |
17.0V |
7.05A |
CB120A-1756850 |
17.5V |
6.85A |
CB120A-1806660 |
18.0V |
6.66A |
CB120A-1856480 |
18.5V |
6.48A |
CB120A-1906310 |
19.0V |
6.31A |
CB120A-1956150 |
19.5V |
6.15A |
CB120A-2006000 |
20.0V |
6.00A |
CB120A-2055850 |
20.5V |
5.85A |
CB120A-2105710 |
21.0V |
5.71A |
CB120A-2155580 |
21.5V |
5.58A |
CB120A-2205450 |
22.0V |
5.45A |
CB120A-2255330 |
22.5V |
5.33A |
CB120A-2305210 |
23.0V |
5.21A |
CB120A-2355100 |
23.5V |
5.10A |
CB120A-2405000 |
24.0V |
5.00A |
CB120A-2454890 |
24.5V |
4.89A |
CB120A-2504800 |
25.0V |
4.80A |
CB120A-2554700 |
25.5V |
4.70A |
CB120A-2604610 |
26.0V |
4.61A |
CB120A-2654520 |
26.5V |
4.52A |
CB120A-2704440 |
27.0V |
4.44A |
CB120A-2754360 |
27.5V |
4.36A |
CB120A-2804280 |
28.0V |
4.28A |
CB120A-2854210 |
28.5V |
4.21A |
PART NO. |
OUTPUT |
|
VOLT |
CURRENT (max) |
|
CB120A-2904130 |
29.0V |
4.13A |
CB120A-2954060 |
29.5V |
4.06A |
CB120A-3004000 |
30.0V |
4.00A |
CB120A-3053930 |
30.5V |
3.93A |
CB120A-3103870 |
31.0V |
3.87A |
CB120A-3153800 |
31.5V |
3.80A |
CB120A-3203750 |
32.0V |
3.75A |
CB120A-3253690 |
32.5V |
3.69A |
CB120A-3303630 |
33.0V |
3.63A |
CB120A-3353580 |
33.5V |
3.58A |
CB120A-3403520 |
34.0V |
3.52A |
CB120A-3453470 |
34.5V |
3.47A |
CB120A-3503420 |
35.0V |
3.42A |
CB120A-3553380 |
35.5V |
3.38A |
CB120A-3603330 |
36.0V |
3.33A |
CB120A-3653280 |
36.5V |
3.28A |
CB120A-3703240 |
37.0V |
3.24A |
CB120A-3753200 |
37.5V |
3.20A |
CB120A-3803150 |
38.0V |
3.15A |
CB120A-3853110 |
38.5V |
3.11A |
CB120A-3903070 |
39.0V |
3.07A |
CB120A-3953030 |
39.5V |
3.03A |
CB120A-4003000 |
40.0V |
3.00A |
CB120A-4052960 |
40.5V |
2.96A |
CB120A-4102920 |
41.0V |
2.92A |
CB120A-4152890 |
41.5V |
2.89A |
CB120A-4202850 |
42.0V |
2.85A |
CB120A-4252820 |
42.5V |
2.82A |
CB120A-4302790 |
43.0V |
2.79A |
CB120A-4352750 |
43.5V |
2.75A |
CB120A-4402720 |
44.0V |
2.72A |
CB120A-4452690 |
44.5V |
2.69A |
CB120A-4502660 |
45.0V |
2.66A |
CB120A-4552630 |
45.5V |
2.63A |
CB120A-4602600 |
46.0V |
2.60A |
CB120A-4652580 |
46.5V |
2.58A |
CB120A-4702550 |
47.0V |
2.55A |
CB120A-4752520 |
47.5V |
2.52A |
CB120A-4802500 |
48.0V |
2.50A |
|
GENERAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
0 to +40oC |
Operating Humidity |
15 to 95% RH |
|
Storage Temperatures |
-20 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
MTBF |
||
|
Hi-Pot |
3000V AC/10mA/3S |
MTBF |
30,000Hours at 25oC |
|
EMISSION |
SAFETY |
||
|
EMI/EMC |
EMC |
Safety Approvals |
CE/CB |
|
GREEN POWER |
Safety Compliant |
EN 60950 |
|
|
ErP |
|||
 |
 |
 |
 |
 |
 |
