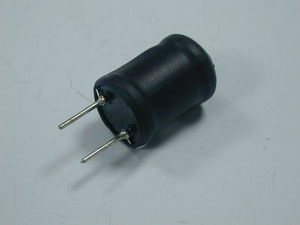

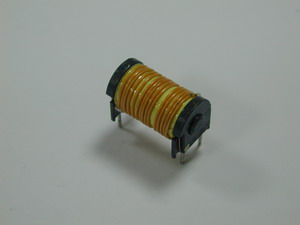

CHOKE COIL
DRUM, BAR, EE & TOROID SERIES
 |
 |
 |
 |
 |
 |
TYPE：DRUM, BAR, EE & TOROID SERIES
ELECTRICAL & MECHANICAL PHYSICAL DIMENSIONS (Unit: mm) |
||||||||
Part Number
|
Inductance Range (UH) |
Rate Current Range (A) |
A Range |
B Range |
C Range |
D Range |
E Range |
G(O) Range |
PIEXXXNXX |
15~1500 |
0.82~30.0 |
26~68 |
17~68 |
22~65 |
12~45 |
4~8 |
0.7~1.2 |
PIDXXXNXX |
1~1500 |
0.07~5.0 |
7~16 |
7~16 |
9~16 |
- |
3~6 |
0.6~1.0 |
PIDXXXSXX |
1~1500 |
0.07~5.0 |
8~17 |
8~17 |
10~17 |
- |
3~6 |
0.6~1.0 |
PIBXXXNXX |
1~15 |
2.0~6.0 |
10~15 |
11~16 |
17~33 |
- |
6~9 |
1.0~1.3 |
PIBXXXSXX |
1~15 |
2.0~6.0 |
12~17 |
13~18 |
19~35 |
- |
6~9 |
1.0~1.3 |
PITXXXNXX |
1~100 |
1.0~2.0 |
5~50 |
2~18 |
5~50 |
- |
6~17 |
0.6~1.3 |
