ELECTRICAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Input |
Output |
||
|
Input Voltage Range |
90-264V AC |
Output Voltage |
3 - 50V DC |
|
Input Frequency |
47-63Hz |
Output Current |
4A(30VA max) |
|
Input Current |
0.7A(max) |
Output Tolerance |
5% |
|
|
|
Ripple & Noise |
100mV ~ 150mV |
|
|
|
Efficiency |
>80% |
OUTPUT SPECIFICATIONS
SERIES NO. : CS30
|
PART NO. |
OUTPUT |
|
|
VOLT |
CURRENT (max) |
|
|
CS30-0304000 |
3.0V |
4.00A |
|
CS30-0334000 |
3.3V |
4.00A |
|
CS30-0354000 |
3.5V |
4.00A |
|
CS30-0404000 |
4.0V |
4.00A |
|
CS30-0454000 |
4.5V |
4.00A |
|
CS30-0504000 |
5.0V |
4.00A |
|
CS30-0554000 |
5.5V |
4.00A |
|
CS30-0604000 |
6.0V |
4.00A |
|
CS30-0653500 |
6.5V |
3.50A |
|
CS30-0703500 |
7.0V |
3.50A |
|
CS30-0753500 |
7.5V |
3.50A |
|
CS30-0803500 |
8.0V |
3.50A |
|
CS30-0853500 |
8.5V |
3.50A |
|
CS30-0903330 |
9.0V |
3.33A |
|
CS30-0953150 |
9.5V |
3.15A |
|
CS30-1003000 |
10.0V |
3.00A |
|
CS30-1052850 |
10.5V |
2.85A |
|
CS30-1102720 |
11.0V |
2.72A |
|
CS30-1152600 |
11.5V |
2.60A |
|
CS30-1202500 |
12.0V |
2.50A |
|
CS30-1252400 |
12.5V |
2.40A |
|
CS30-1302300 |
13.0V |
2.30A |
|
CS30-1352220 |
13.5V |
2.22A |
|
CS30-1402140 |
14.0V |
2.14A |
|
CS30-1452060 |
14.5V |
2.06A |
|
CS30-1502000 |
15.0V |
2.00A |
|
CS30-1551930 |
15.5V |
1.93A |
|
CS30-1601870 |
16.0V |
1.87A |
|
CS30-1651810 |
16.5V |
1.81A |
|
CS30-1701760 |
17.0V |
1.76A |
|
CS30-1751710 |
17.5V |
1.71A |
|
CS30-1801660 |
18.0V |
1.66A |
|
CS30-1851620 |
18.5V |
1.62A |
|
CS30-1901570 |
19.0V |
1.57A |
|
CS30-1951530 |
19.5V |
1.53A |
|
CS30-2001500 |
20.0V |
1.50A |
|
CS30-2051460 |
20.5V |
1.46A |
|
CS30-2101420 |
21.0V |
1.42A |
|
CS30-2151390 |
21.5V |
1.39A |
|
CS30-2201360 |
22.0V |
1.36A |
|
CS30-2251330 |
22.5V |
1.33A |
|
CS30-2301300 |
23.0V |
1.30A |
|
CS30-2351270 |
23.5V |
1.27A |
|
CS30-2401250 |
24.0V |
1.25A |
|
CS30-2451220 |
24.5V |
1.22A |
|
CS30-2501200 |
25.0V |
1.20A |
|
CS30-2551170 |
25.5V |
1.17A |
|
CS30-2601150 |
26.0V |
1.15A |
|
PART NO. |
OUTPUT |
|
|
VOLT |
CURRENT (max) |
|
|
CS30-2651130 |
26.5V |
1.13A |
|
CS30-2701110 |
27.0V |
1.11A |
|
CS30-2751090 |
27.5V |
1.09A |
|
CS30-2801070 |
28.0V |
1.07A |
|
CS30-2851050 |
28.5V |
1.05A |
|
CS30-2901030 |
29.0V |
1.03A |
|
CS30-2951010 |
29.5V |
1.01A |
|
CS30-3001000 |
30.0V |
1.00A |
|
CS30-3050980 |
30.5V |
0.98A |
|
CS30-3100960 |
31.0V |
0.96A |
|
CS30-3150950 |
31.5V |
0.95A |
|
CS30-3200930 |
32.0V |
0.93A |
|
CS30-3250920 |
32.5V |
0.92A |
|
CS30-3300900 |
33.0V |
0.90A |
|
CS30-3350890 |
33.5V |
0.89A |
|
CS30-3400880 |
34.0V |
0.88A |
|
CS30-3450860 |
34.5V |
0.86A |
|
CS30-3500850 |
35.0V |
0.85A |
|
CS30-3550840 |
35.5V |
0.84A |
|
CS30-3600830 |
36.0V |
0.83A |
|
CS30-3650820 |
36.5V |
0.82A |
|
CS30-3700810 |
37.0V |
0.81A |
|
CS30-3750800 |
37.5V |
0.80A |
|
CS30-3800780 |
38.0V |
0.78A |
|
CS30-3850770 |
38.5V |
0.77A |
|
CS30-3900760 |
39.0V |
0.76A |
|
CS30-3950750 |
39.5V |
0.75A |
|
CS30-4000750 |
40.0V |
0.75A |
|
CS30-4050740 |
40.5V |
0.74A |
|
CS30-4100730 |
41.0V |
0.73A |
|
CS30-4150720 |
41.5V |
0.72A |
|
CS30-4200710 |
42.0V |
0.71A |
|
CS30-4250700 |
42.5V |
0.70A |
|
CS30-4300690 |
43.0V |
0.69A |
|
CS30-4350680 |
43.5V |
0.68A |
|
CS30-4400680 |
44.0V |
0.68A |
|
CS30-4450670 |
44.5V |
0.67A |
|
CS30-4500660 |
45.0V |
0.66A |
|
CS30-4550650 |
45.5V |
0.65A |
|
CS30-4600650 |
46.0V |
0.65A |
|
CS30-4650640 |
46.5V |
0.64A |
|
CS30-4700630 |
47.0V |
0.63A |
|
CS30-4750630 |
47.5V |
0.63A |
|
CS30-4800620 |
48.0V |
0.62A |
|
CS30-4850610 |
48.5V |
0.61A |
|
CS30-4900610 |
49.0V |
0.61A |
|
CS30-4950600 |
49.5V |
0.60A |
|
CS30-5000600 |
50.0V |
0.60A |

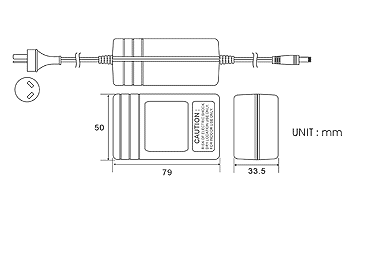

SWITCHING ADAPTOR
DESKTOP-CORD IN/OUT
30 SERIES
|
GENERAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
0 to +40oC |
Operating Humidity |
15 to 95% RH |
|
Storage Temperatures |
-20 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
MTBF |
||
|
Hi-Pot |
3000V AC/10mA/3S |
MTBF |
30,000Hours at 25oC |
|
EMISSION |
SAFETY |
||
|
EMI/EMC |
C-tick |
Safety Approvals |
SAA/CB |
|
GREEN POWER |
Safety Compliant |
AS/NZS 60950, EN60950 |
|
|
MEPS |
|||
 |
 |
 |
 |
 |
 |
