| ELECTRICAL SPECIFICATIONS |
|||
|---|---|---|---|
| Input |
Output |
||
Input Voltage Range |
90-264V AC |
Output Voltage |
9 - 48V DC |
Input Frequency |
47-63Hz |
Output Current |
5.55A(50VA max) |
Input Current |
1.8A(max) |
Output Tolerance |
5% |
|
|
|
Ripple & Noise |
2% mV p-p max |
|
|
|
Efficiency |
>80% |
OUTPUT SPECIFICATIONS
SERIES NO. : CSI51

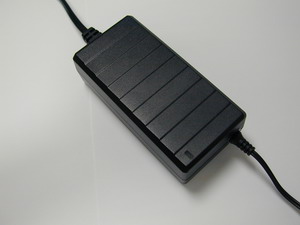

SWITCHING ADAPTOR
DESKTOP-CORD IN/OUT
51 SERIES
PART NO. |
OUTPUT |
|
VOLT |
CURRENT (max) |
|
CSI51-0905550 |
9.0V |
5.55A |
CSI51-0955260 |
9.5V |
5.26A |
CSI51-1005000 |
10.0V |
5.00A |
CSI51-1054760 |
10.5V |
4.76A |
CSI51-1104540 |
11.0V |
4.54A |
CSI51-1154340 |
11.5V |
4.34A |
CSI51-1204160 |
12.0V |
4.16A |
CSI51-1254000 |
12.5V |
4.00A |
CSI51-1303840 |
13.0V |
3.84A |
CSI51-1353700 |
13.5V |
3.70A |
CSI51-1403570 |
14.0V |
3.57A |
CSI51-1453440 |
14.5V |
3.44A |
CSI51-1503330 |
15.0V |
3.33A |
CSI51-1553220 |
15.5V |
3.22A |
CSI51-1603120 |
16.0V |
3.12A |
CSI51-1653030 |
16.5V |
3.03A |
CSI51-1702970 |
17.0V |
2.94A |
CSI51-1752850 |
17.5V |
2.85A |
CSI51-1802770 |
18.0V |
2.77A |
CSI51-1852700 |
18.5V |
2.70A |
CSI51-1902630 |
19.0V |
2.63A |
CSI51-1952560 |
19.5V |
2.56A |
CSI51-2002500 |
20.0V |
2.50A |
CSI51-2052430 |
20.5V |
2.43A |
CSI51-2102380 |
21.0V |
2.38A |
CSI51-2152320 |
21.5V |
2.32A |
CSI51-2202270 |
22.0V |
2.27A |
CSI51-2252220 |
22.5V |
2.22A |
CSI51-2302170 |
23.0V |
2.17A |
CSI51-2352120 |
23.5V |
2.12A |
CSI51-2402080 |
24.0V |
2.08A |
CSI51-2452040 |
24.5V |
2.04A |
CSI51-2502000 |
25.0V |
2.00A |
CSI51-2551960 |
25.5V |
1.96A |
CSI51-2601920 |
26.0V |
1.92A |
CSI51-2651880
|
26.5V |
1.88A |
CSI51-2701850 |
27.0V |
1.85A |
CSI51-2751810 |
27.5V |
1.81A |
CSI51-2801780 |
28.0V |
1.78A |
CSI51-2851750 |
28.5V |
1.75A |
PART NO. |
OUTPUT |
|
VOLT |
CURRENT (max) |
|
CSI51-2901720 |
29.0V |
1.72A |
CSI51-2951690 |
29.5V |
1.69A |
CSI51-3001660 |
30.0V |
1.66A |
CSI51-3051630 |
30.5V |
1.63A |
CSI51-3101610 |
31.0V |
1.61A |
CSI51-3151580 |
31.5V |
1.58A |
CSI51-3201560 |
32.0V |
1.56A |
CSI51-3251530 |
32.5V |
1.53A |
CSI51-3301510 |
33.0V |
1.51A |
CSI51-3351490 |
33.5V |
1.49A |
CSI51-3401470 |
34.0V |
1.47A |
CSI51-3451440 |
34.5V |
1.44A |
CSI51-3501420 |
35.0V |
1.42A |
CSI51-3551400 |
35.5V |
1.40A |
CSI51-3601380 |
36.0V |
1.38A |
CSI51-3651360 |
36.5V |
1.36A |
CSI51-3701350 |
37.0V |
1.35A |
CSI51-3751330 |
37.5V |
1.33A |
CSI51-3801310 |
38.0V |
1.31A |
CSI51-3851290 |
38.5V |
1.29A |
CSI51-3901280 |
39.0V |
1.28A |
CSI51-3951260 |
39.5V |
1.26A |
CSI51-4001250 |
40.0V |
1.25A |
CSI51-4051230 |
40.5V |
1.23A |
CSI51-4101210 |
41.0V |
1.21A |
CSI51-4151200 |
41.5V |
1.20A |
CSI51-4201190 |
42.0V |
1.19A |
CSI51-4251170 |
42.5V |
1.17A |
CSI51-4301160 |
43.0V |
1.16A |
CSI51-4351140 |
43.5V |
1.14A |
CSI51-4401130 |
44.0V |
1.13A |
CSI51-4451120 |
44.5V |
1.12A |
CSI51-4501110 |
45.0V |
1.11A |
CSI51-4551090 |
45.5V |
1.09A |
CSI51-4601080 |
46.0V |
1.08A |
CSI51-4651070 |
46.5V |
1.07A |
CSI51-4701060 |
47.0V |
1.06A |
CSI51-4751050 |
47.5V |
1.05A |
CSI51-4801040 |
48.0V |
1.04A |
|
GENERAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
0 to +40oC |
Operating Humidity |
15 to 95% RH |
|
Storage Temperatures |
-20 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
MTBF |
||
|
Hi-Pot |
3000V AC/10mA/3S |
MTBF |
30,000Hours at 25oC |
|
EMISSION |
SAFETY |
||
|
EMI/EMC |
EMC/C-tick/FCC |
Safety Approvals |
UL/CUL/SAA/CE/CB |
|
GREEN POWER |
Safety Compliant |
UL 60950/EN 60950/ |
|
|
CEC/ErP/MEPS |
|||
 |
 |
 |
 |
 |
 |
