LINEAR ADAPTOR
WALLMOUNT

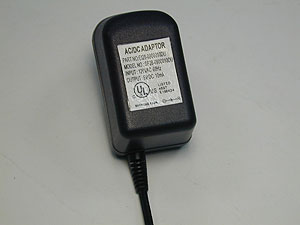

EI 28 AC TO DC ADAPTOR (US 2 PIN)
Input:120V AC 60Hz
OUTPUT SPECIFICATION
|
GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
1500V AC, 1 second, leak current 3 mA |
UL/CUL |
UL 1310/ |
|
Primary to Secondary |
1500V AC, 1 second, leak current 3 mA |
||
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
120V AC |
Output Voltage |
1.5-28V DC |
|
Input Frequency |
60Hz |
Output Tolerance (Load) |
5% |
|
|
|
Output Current |
0.01-0.5A |
|
|
|
Output Watt |
2.7VA max |
|
23V |
24V |
25V |
26V |
27V |
28V |
|
|
0.05A |
SF28-2300050DU |
SF28-2400050DU |
|
|
|
|
|
0.03A |
SF28-2300030DU |
SF28-2400030DU |
SF28-2500030DU |
SF28-2600030DU |
SF28-2700030DU |
SF28-2800030DU |
|
0.01A |
SF28-2300010DU |
SF28-2400010DU |
SF28-2500010DU |
SF28-2600010DU |
SF28-2700010DU |
SF28-2800010DU |
|
17V |
18V |
19V |
20V |
21V |
22V |
|
|
0.12A |
SF28-1750120DU |
|
|
|
|
|
|
0.10A |
SF28-1750100DU |
SF28-1800100DU |
SF28-1900100DU |
|
|
|
|
0.08A |
SF28-1750080DU |
SF28-1800080DU |
SF28-1900080DU |
SF28-2000080DU |
|
|
|
0.06A |
SF28-1750060DU |
SF28-1800060DU |
SF28-1900060DU |
SF28-2000060DU |
SF28-2100060DU |
SF28-2200060DU |
|
0.05A |
SF28-1750050DU |
SF28-1800050DU |
SF28-1900050DU |
SF28-2000050DU |
SF28-2100050DU |
SF28-2200050DU |
|
0.01A |
SF28-1750010DU |
SF28-1800010DU |
SF28-1900010DU |
SF28-2000010DU |
SF28-2100010DU |
SF28-2200010DU |
|
13.5V |
14V |
14.5V |
15V |
15.5V |
16V |
|
|
0.15A |
SF28-1350150DU |
SF28-1400150DU |
SF28-1450150DU |
SF28-1500150DU |
SF28-1550150DU |
SF28-1600150DU |
|
0.10A |
SF28-1350100DU |
SF28-1400100DU |
SF28-1450100DU |
SF28-1500100DU |
SF28-1550100DU |
SF28-1600100DU |
|
0.05A |
SF28-1350050DU |
SF28-1400050DU |
SF28-1450050DU |
SF28-1500050DU |
SF28-1550050DU |
SF28-1600050DU |
|
0.01A |
SF28-1350010DU |
SF28-1400010DU |
SF28-1450010DU |
SF28-1500010DU |
SF28-1550010DU |
SF28-1600010DU |
|
10.5V |
11V |
11.5V |
12V |
12.5V |
13V |
|
|
0.25A |
SF28-1050250DU |
|
|
|
|
|
|
0.20A |
SF28-1050200DU |
SF28-1100200DU |
SF28-1150200DU |
|
|
|
|
0.19A |
SF28-1050190DU |
SF28-1100190DU |
SF28-1150190DU |
SF28-1200190DU |
SF28-1250190DU |
|
|
0.17A |
SF28-1050170DU |
SF28-1100170DU |
SF28-1150170DU |
SF28-1200170DU |
SF28-1250170DU |
SF28-1300170DU |
|
0.15A |
SF28-1050150DU |
SF28-1100150DU |
SF28-1150150DU |
SF28-1200150DU |
SF28-1250150DU |
SF28-1300150DU |
|
0.10A |
SF28-1050100DU |
SF28-1100100DU |
SF28-1150100DU |
SF28-1200100DU |
SF28-1250100DU |
SF28-1300100DU |
|
0.05A |
SF28-1050050DU |
SF28-1100050DU |
SF28-1150050DU |
SF28-1200050DU |
SF28-1250050DU |
SF28-1300050DU |
|
0.01A |
|
|
|
SF28-1200010DU |
SF28-1250010DU |
SF28-1300010DU |
|
7.5V |
8V |
8.5V |
9V |
9.5V |
10V |
|
|
0.30A |
SF28-0750300DU |
SF28-0800300DU |
SF28-0850300DU |
SF28-0900300DU |
SF28-0950300DU |
|
|
0.25A |
SF28-0750250DU |
SF28-0800250DU |
SF28-0850250DU |
SF28-0900250DU |
SF28-0950250DU |
SF28-1000250DU |
|
0.20A |
SF28-0750200DU |
SF28-0800200DU |
SF28-0850200DU |
SF28-0900200DU |
SF28-0950200DU |
SF28-1000200DU |
|
0.15A |
SF28-0750150DU |
SF28-0800150DU |
SF28-0850150DU |
SF28-0900150DU |
SF28-0950150DU |
SF28-1000150DU |
|
0.10A |
SF28-0750100DU |
SF28-0800100DU |
SF28-0850100DU |
SF28-0900100DU |
SF28-0950100DU |
SF28-1000100DU |
|
0.05A |
SF28-0750050DU |
SF28-0800050DU |
SF28-0850050DU |
SF28-0900050DU |
SF28-0950050DU |
SF28-1000050DU |
|
4.5V |
5V |
5.5V |
6V |
6.5V |
7V |
|
|
0.35A |
SF28-0450350DU |
SF28-0500350DU |
SF28-0550350DU |
SF28-0600350DU |
SF28-0650350DU |
SF28-0700350DU |
|
0.30A |
SF28-0450300DU |
SF28-0500300DU |
SF28-0550300DU |
SF28-0600300DU |
SF28-0650300DU |
SF28-0700300DU |
|
0.25A |
SF28-0450250DU |
SF28-0500250DU |
SF28-0550250DU |
SF28-0600250DU |
SF28-0650250DU |
SF28-0700250DU |
|
0.20A |
SF28-0450200DU |
SF28-0500200DU |
SF28-0550200DU |
SF28-0600200DU |
SF28-0650200DU |
SF28-0700200DU |
|
0.15A |
SF28-0450150DU |
SF28-0500150DU |
SF28-0550150DU |
SF28-0600150DU |
SF28-0650150DU |
SF28-0700150DU |
|
0.10A |
SF28-0450100DU |
SF28-0500100DU |
SF28-0550100DU |
SF28-0600100DU |
SF28-0650100DU |
SF28-0700100DU |
|
0.05A |
SF28-0450050DU |
SF28-0500050DU |
SF28-0550050DU |
SF28-0600050DU |
SF28-0650050DU |
SF28-0700050DU |
|
1.5V |
2V |
2.5V |
3V |
3.5V |
4.0V |
|
|
0.50A |
SF28-0150500DU |
|
|
|
|
|
|
0.45A |
SF28-0150450DU |
SF28-0200450DU |
SF28-0250450DU |
SF28-0300450DU |
|
|
|
0.40A |
SF28-0150400DU |
SF28-0200400DU |
SF28-0250400DU |
SF28-0300400DU |
SF28-0350400DU |
SF28-0400400DU |
|
0.35A |
SF28-0150350DU |
SF28-0200350DU |
SF28-0250350DU |
SF28-0300350DU |
SF28-0350350DU |
SF28-0400350DU |
|
0.30A |
SF28-0150300DU |
SF28-0200300DU |
SF28-0250300DU |
SF28-0300300DU |
SF28-0350300DU |
SF28-0400300DU |
|
0.25A |
SF28-0150250DU |
SF28-0200250DU |
SF28-0250250DU |
SF28-0300250DU |
SF28-0350250DU |
SF28-0400250DU |
|
0.20A |
SF28-0150200DU |
SF28-0200200DU |
SF28-0250200DU |
SF28-0300200DU |
SF28-0350200DU |
SF28-0400200DU |
|
0.15A |
SF28-0150150DU |
SF28-0200150DU |
SF28-0250150DU |
SF28-0300150DU |
SF28-0350150DU |
SF28-0400150DU |
|
0.10A |
SF28-0150100DU |
SF28-0200100DU |
SF28-0250100DU |
SF28-0300100DU |
SF28-0350100DU |
SF28-0400100DU |
|
0.05A |
SF28-0150050DU |
SF28-0200050DU |
SF28-0250050DU |
SF28-0300050DU |
SF28-0350050DU |
SF28-0400050DU |
|
1.5-4.0V |
4.5-7.0V |
7.5-10V |
10.5-13V |
13.5-16V |
17-22V |
23-28V |
 |
 |
 |
 |
 |
 |
