GENERAL SPECIFICATION

Temperatures

Humidity

Operating Temperatures

-10 to +30oC

Operating Humidity

10 to 90% RH

Storage Temperatures

-10 to +70oC

Storage Humidity

5 to 95% RH

Hi-Pot Test

Safety

Compliance With

Primary to Core

1800V AC, one second

PSE

J 60950

Primary to Secondary

1800V AC, one second

ELECTRICAL SPECIFICATION

INPUT

OUTPUT

Input Voltage

100V AC

Output Voltage

1.5-14.5V DC

Input Frequency

50/60Hz

Output Tolerance (Load)

5%

Output Current

0.01-0.5A

Output Watt

2.85VA max

00title405a

LINEAR ADAPTOR
WALLMOUNT
EI 28 AC TO DC ADAPTOR
INPUT:100V AC 50/60 Hz

00title405a

OUTPUT SPECIFICATION

1.5-4V

4.5-7V

7.5-10V

10.5-13V

13.5-14.5V

00002
00002
00002
00002
00002
40-PSE

name5txt

13.5V

14V

14.5V







0.15A

SF28-1350150DP

SF28-1400150DP

SF28-1450150DP







0.10A

SF28-1350100DP

SF28-1400100DP

SF28-1450100DP







0.05A

SF28-1350050DP

SF28-1400050DP

SF28-1450050DP







0.01A

SF28-1350010DP

SF28-1400010DP

SF28-1450010DP







name5txt

10.5V

11V

11.5V

12V

12.5V

13V

0.25A

SF28-1050250DP











0.20A

SF28-1050200DP

SF28-1100200DP

SF28-1150200DP







0.19A

SF28-1050190DP

SF28-1100190DP

SF28-1150190DP

SF28-1200190DP

SF28-1250190DP



0.17A

SF28-1050170DP

SF28-1100170DP

SF28-1150170DP

SF28-1200170DP

SF28-1250170DP

SF28-1300170DP

0.10A

SF28-1050100DP

SF28-1100100DP

SF28-1150100DP

SF28-1200100DP

SF28-1250100DP

SF28-1300100DP

0.05A

SF28-1050050DP

SF28-1100050DP

SF28-1150050DP

SF28-1200050DP

SF28-1250050DP

SF28-1300050DP

0.01A







SF28-1200010DP

SF28-1250010DP

SF28-1300010DP

name5txt

7.5V

8V

8.5V

9V

9.5V

10V

0.30A

SF28-0750300DP

SF28-0800300DP

SF28-0850300DP

SF28-0900300DP

SF28-0950300DP



0.25A

SF28-0750250DP

SF28-0800250DP

SF28-0850250DP

SF28-0900250DP

SF28-0950250DP

SF28-1000250DP

0.20A

SF28-0750200DP

SF28-0800200DP

SF28-0850200DP

SF28-0900200DP

SF28-0950200DP

SF28-1000200DP

0.10A

SF28-0750100DP

SF28-0800100DP

SF28-0850100DP

SF28-0900100DP

SF28-0950100DP

SF28-1000100DP

0.05A

SF28-0750050DP

SF28-0800050DP

SF28-0850050DP

SF28-0900050DP

SF28-0950050DP

SF28-1000050DP

name5txt

4.5V

5V

5.5V

6V

6.5V

7V

0.35A

SF28-0450350DP

SF28-0500350DP

SF28-0550350DP

SF28-0600350DP

SF28-0650350DP

SF28-0700350DP

0.30A

SF28-0450300DP

SF28-0500300DP

SF28-0550300DP

SF28-0600300DP

SF28-0650300DP

SF28-0700300DP

0.20A

SF28-0450200DP

SF28-0500200DP

SF28-0550200DP

SF28-0600200DP

SF28-0650200DP

SF28-0700200DP

0.10A

SF28-0450100DP

SF28-0500100DP

SF28-0550100DP

SF28-0600100DP

SF28-0650100DP

SF28-0700100DP

0.05A

SF28-0450050DP

SF28-0500050DP

SF28-0550050DP

SF28-0600050DP

SF28-0650050DP

SF28-0700050DP

name5txt

1.5V

2V

2.5V

3V

3.5V

4V

0.50A

SF28-0150500DP











0.45A

SF28-0150450DP

SF28-0200450DP

SF28-0250450DP

SF28-0300450DP





0.40A

SF28-0150400DP

SF28-0200400DP

SF28-0250400DP

SF28-0300400DP

SF28-0350400DP

SF28-0400400DP

0.30A

SF28-0150300DP

SF28-0200300DP

SF28-0250300DP

SF28-0300300DP

SF28-0350300DP

SF28-0400300DP

0.20A

SF28-0150200DP

SF28-0200200DP

SF28-0250200DP

SF28-0300200DP

SF28-0350200DP

SF28-0400200DP

0.10A

SF28-0150100DP

SF28-0200100DP

SF28-0250100DP

SF28-0300100DP

SF28-0350100DP

SF28-0400100DP

0.05A

SF28-0150050DP

SF28-0200050DP

SF28-0250050DP

SF28-0300050DP

SF28-0350050DP

SF28-0400050DP

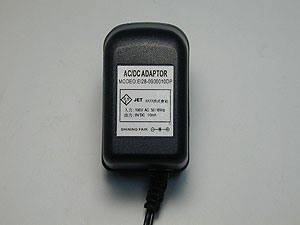

01-JAPAN-DC-EI28-P-W

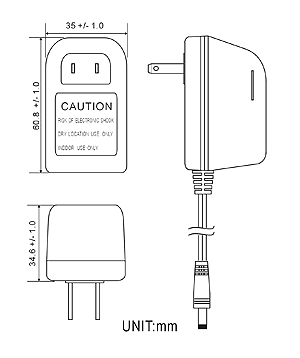

01-JAPAN-DC-EI28-DIM-W
