GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
3750V AC, one second |
CCC |
IEC 60950 |
|
Primary to Secondary |
3750V AC, one second |
||
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
220V AC |
Output Voltage |
3-27V DC |
|
Input Frequency |
50Hz |
Output Tolerance (Load) |
5% |
|
Output Current |
0.05-0.6A |
||
|
Output Watt |
3.15VA max |
||
LINEAR ADAPTOR
WALLMOUNT

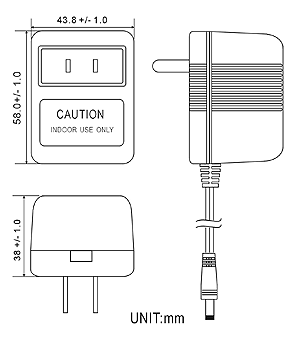

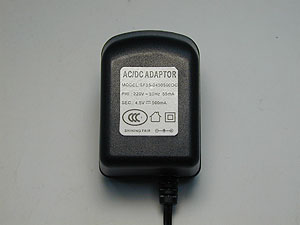

EI 35 AC TO DC ADAPTOR
INPUT:220V AC 50Hz
OUTPUT SPECIFICATION
|
3-5.5V |
6-8.5V |
9-11.5V |
12-14.5V |
15-20V |
21-26V |
27V |
|---|
|
21V |
22V |
23V |
24V |
25V |
26V |
|
|
0.20A |
|
|
|
|
SF35-2500200DC |
|
|
0.15A |
SF35-2100150DC |
|
|
|
SF35-2500150DC |
SF35-2600150DC |
|
0.10A |
SF35-2100100DC |
SF35-2200100DC |
SF35-2300100DC |
SF35-2400100DC |
SF35-2500100DC |
SF35-2600100DC |
|
0.05A |
SF35-2100050DC |
SF35-2200050DC |
SF35-2300050DC |
SF35-2400050DC |
SF35-2500050DC |
SF35-2600050DC |
|
15V |
16V |
17V |
18V |
19V |
20V |
|
|
0.20A |
SF35-1500200DC |
|
|
|
|
|
|
0.15A |
SF35-1500150DC |
SF35-1600150DC |
SF35-1700150DC |
SF35-1800150DC |
SF35-1900150DC |
SF35-2000150DC |
|
0.10A |
SF35-1500100DC |
SF35-1600100DC |
SF35-1700100DC |
SF35-1800100DC |
SF35-1900100DC |
SF35-2000100DC |
|
0.05A |
SF35-1500050DC |
SF35-1600050DC |
SF35-1700050DC |
SF35-1800050DC |
SF35-1900050DC |
SF35-2000050DC |
|
12V |
12.5V |
13V |
13.5V |
14V |
14.5V |
|
|
0.25A |
SF35-1200250DC |
SF35-1250250DC |
|
|
|
|
|
0.20A |
SF35-1200200DC |
SF35-1250200DC |
SF35-1300200DC |
SF35-1350200DC |
SF35-1400200DC |
SF35-1450200DC |
|
0.10A |
SF35-1200100DC |
SF35-1250100DC |
SF35-1300100DC |
SF35-1350100DC |
SF35-1400100DC |
SF35-1450100DC |
|
0.05A |
SF35-1200050DC |
SF35-1250050DC |
SF35-1300050DC |
SF35-1350050DC |
SF35-1400050DC |
SF35-1450050DC |
|
9V |
9.5V |
10V |
10.5V |
11V |
11.5V |
|
|
0.35A |
SF35-0900350DC |
|
|
|
|
|
|
0.30A |
SF35-0900300DC |
SF35-0950300DC |
SF35-1000300DC |
SF35-1050300DC |
|
|
|
0.25A |
SF35-0900250DC |
SF35-0950250DC |
SF35-1000250DC |
SF35-1050250DC |
SF35-1100250DC |
SF35-1150250DC |
|
0.20A |
SF35-0900200DC |
SF35-0950200DC |
SF35-1000200DC |
SF35-1050200DC |
SF35-1100200DC |
SF35-1150200DC |
|
0.10A |
SF35-0900100DC |
SF35-0950100DC |
SF35-1000100DC |
SF35-1050100DC |
SF35-1100100DC |
SF35-1150100DC |
|
0.05A |
SF35-0900050DC |
SF35-0950050DC |
SF35-1000050DC |
SF35-1050050DC |
SF35-1100050DC |
SF35-1150050DC |
|
6V |
6.5V |
7V |
7.5V |
8V |
8.5V |
|
|
0.50A |
SF35-0600500DC |
|
|
|
|
|
|
0.40A |
SF35-0600400DC |
SF35-0650400DC |
SF35-0700400DC |
SF35-0750400DC |
SF35-0800400DC |
|
|
0.35A |
SF35-0600350DC |
SF35-0650350DC |
SF35-0700350DC |
SF35-0750350DC |
SF35-0800350DC |
SF35-0850350DC |
|
0.30A |
SF35-0600300DC |
SF35-0650300DC |
SF35-0700300DC |
SF35-0750300DC |
SF35-0800300DC |
SF35-0850300DC |
|
0.20A |
SF35-0600200DC |
SF35-0650200DC |
SF35-0700200DC |
SF35-0750200DC |
SF35-0800200DC |
SF35-0850200DC |
|
0.10A |
SF35-0600100DC |
SF35-0650100DC |
SF35-0700100DC |
SF35-0750100DC |
SF35-0800100DC |
SF35-0850100DC |
|
0.05A |
SF35-0600050DC |
SF35-0650050DC |
SF35-0700050DC |
SF35-0750050DC |
SF35-0800050DC |
SF35-0850050DC |
|
3V |
3.5V |
4V |
4.5V |
5V |
5.5V |
|
|
0.60A |
SF35-0300600DC |
SF35-0350600DC |
SF35-0400600DC |
SF35-0450600DC |
SF35-0500600DC |
|
|
0.50A |
SF35-0300500DC |
SF35-0350500DC |
SF35-0400500DC |
SF35-0450500DC |
SF35-0500500DC |
SF35-0550500DC |
|
0.40A |
SF35-0300400DC |
SF35-0350400DC |
SF35-0400400DC |
SF35-0450400DC |
SF35-0500400DC |
SF35-0550400DC |
|
0.30A |
SF35-0300300DC |
SF35-0350300DC |
SF35-0400300DC |
SF35-0450300DC |
SF35-0500300DC |
SF35-0550300DC |
|
0.20A |
SF35-0300200DC |
SF35-0350200DC |
SF35-0400200DC |
SF35-0450200DC |
SF35-0500200DC |
SF35-0550200DC |
|
0.10A |
SF35-0300100DC |
SF35-0350100DC |
SF35-0400100DC |
SF35-0450100DC |
SF35-0500100DC |
SF35-0550100DC |
|
0.05A |
SF35-0300050DC |
SF35-0350050DC |
SF35-0400050DC |
SF35-0450050DC |
SF35-0500050DC |
SF35-0550050DC |
 |
 |
 |
 |
 |
 |
