GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
1800V AC, one second |
PSE |
J 60950 |
|
Primary to Secondary |
1800V AC, one second |
||
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
100V AC |
Output Voltage |
1-28V DC |
|
Input Frequency |
50/60Hz |
Output Tolerance (Load) |
5% |
|
Output Current |
0.01-1A |
||
|
Output Watt |
5VA max |
||
LINEAR ADAPTOR
WALLMOUNT

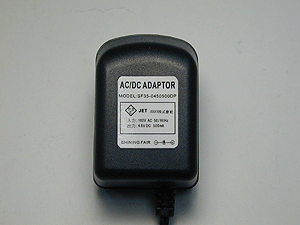

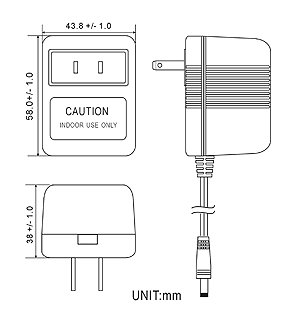

EI 35 AC TO DC ADAPTOR
INPUT:100V AC 50/60 Hz
OUTPUT SPECIFICATION
|
1-3.5V |
4-6.5V |
7-9.5V |
10-12.5V |
13-15.5V |
16-18.5V |
19-21.5V |
22-24.5V |
25-28V |
|---|
|
25V |
25.5V |
26V |
26.5V |
27V |
28V |
|
|
0.20A |
SF35-2500200DP |
|
|
|
|
|
|
0.15A |
SF35-2500150DP |
SF35-2550150DP |
SF35-2600150DP |
SF35-2650150DP |
SF35-2700150DP |
SF35-2800150DP |
|
0.10A |
SF35-2500100DP |
SF35-2550100DP |
SF35-2600100DP |
SF35-2650100DP |
SF35-2700100DP |
SF35-2800100DP |
|
0.05A |
SF35-2500050DP |
SF35-2550050DP |
SF35-2600050DP |
SF35-2650050DP |
SF35-2700050DP |
SF35-2800050DP |
|
0.01A |
SF35-2500010DP |
SF35-2550010DP |
SF35-2600010DP |
SF35-2650010DP |
SF35-2700010DP |
SF35-2800010DP |
|
22V |
22.5V |
23V |
23.5V |
24V |
24.5V |
|
|
0.20A |
SF35-2200200DP |
SF35-2250200DP |
SF35-2300200DP |
SF35-2350200DP |
SF35-2400200DP |
SF35-2450200DP |
|
0.10A |
SF35-2200100DP |
SF35-2250100DP |
SF35-2300100DP |
SF35-2350100DP |
SF35-2400100DP |
SF35-2450100DP |
|
0.05A |
SF35-2200050DP |
SF35-2250050DP |
SF35-2300050DP |
SF35-2350050DP |
SF35-2400050DP |
SF35-2450050DP |
|
0.01A |
SF35-2200010DP |
SF35-2250010DP |
SF35-2300010DP |
SF35-2350010DP |
SF35-2400010DP |
SF35-2450010DP |
|
19V |
19.5V |
20V |
20.5V |
21V |
21.5V |
|
|
0.25A |
SF35-1900250DP |
SF35-1950250DP |
|
|
|
|
|
0.20A |
SF35-1900200DP |
SF35-1950200DP |
SF35-2000200DP |
SF35-2050200DP |
SF35-2100200DP |
SF35-2150200DP |
|
0.10A |
SF35-1900100DP |
SF35-1950100DP |
SF35-2000100DP |
SF35-2050100DP |
SF35-2100100DP |
SF35-2150100DP |
|
0.05A |
SF35-1900050DP |
SF35-1950050DP |
SF35-2000050DP |
SF35-2050050DP |
SF35-2100050DP |
SF35-2150050DP |
|
0.01A |
SF35-1900010DP |
SF35-1950010DP |
SF35-2000010DP |
SF35-2050010DP |
SF35-2100010DP |
SF35-2150010DP |
|
16V |
16.5V |
17V |
17.5V |
18V |
18.5V |
|
|
0.25A |
SF35-1600250DP |
SF35-1650250DP |
SF35-1700250DP |
SF35-1750250DP |
SF35-1800250DP |
SF35-1850250DP |
|
0.20A |
SF35-1600200DP |
SF35-1650200DP |
SF35-1700200DP |
SF35-1750200DP |
SF35-1800200DP |
SF35-1850200DP |
|
0.10A |
SF35-1600100DP |
SF35-1650100DP |
SF35-1700100DP |
SF35-1750100DP |
SF35-1800100DP |
SF35-1850100DP |
|
0.05A |
SF35-1600050DP |
SF35-1650050DP |
SF35-1700050DP |
SF35-1750050DP |
SF35-1800050DP |
SF35-1850050DP |
|
0.01A |
SF35-1600010DP |
SF35-1650010DP |
SF35-1700010DP |
SF35-1750010DP |
SF35-1800010DP |
SF35-1850010DP |
|
13V |
13.5V |
14V |
14.5V |
15V |
15.5V |
|
|
0.35A |
SF35-1300350DP |
SF35-1350350DP |
|
|
|
|
|
0.30A |
SF35-1300300DP |
SF35-1350300DP |
SF35-1400300DP |
SF35-1450300DP |
SF35-1500300DP |
|
|
0.25A |
SF35-1300250DP |
SF35-1350250DP |
SF35-1400250DP |
SF35-1450250DP |
SF35-1500250DP |
SF35-1550250DP |
|
0.20A |
SF35-1300200DP |
SF35-1350200DP |
SF35-1400200DP |
SF35-1450200DP |
SF35-1500200DP |
SF35-1550200DP |
|
0.10A |
SF35-1300100DP |
SF35-1350100DP |
SF35-1400100DP |
SF35-1450100DP |
SF35-1500100DP |
SF35-1550100DP |
|
0.05A |
SF35-1300050DP |
SF35-1350050DP |
SF35-1400050DP |
SF35-1450050DP |
SF35-1500050DP |
SF35-1550050DP |
|
0.01A |
SF35-1300010DP |
SF35-1350010DP |
SF35-1400010DP |
SF35-1450010DP |
SF35-1500010DP |
SF35-1550010DP |
|
10V |
10.5V |
11V |
11.5V |
12V |
12.5V |
|
|
0.40A |
SF35-1000400DP |
SF35-1050400DP |
SF35-1100400DP |
SF35-1150400DP |
SF35-1200400DP |
|
|
0.35A |
SF35-1000350DP |
SF35-1050350DP |
SF35-1100350DP |
SF35-1150350DP |
SF35-1200350DP |
SF35-1250350DP |
|
0.30A |
SF35-1000300DP |
SF35-1050300DP |
SF35-1100300DP |
SF35-1150300DP |
SF35-1200300DP |
SF35-1250300DP |
|
0.20A |
SF35-1000200DP |
SF35-1050200DP |
SF35-1100200DP |
SF35-1150200DP |
SF35-1200200DP |
SF35-1250200DP |
|
0.10A |
SF35-1000100DP |
SF35-1050100DP |
SF35-1100100DP |
SF35-1150100DP |
SF35-1200100DP |
SF35-1250100DP |
|
0.05A |
SF35-1000050DP |
SF35-1050050DP |
SF35-1100050DP |
SF35-1150050DP |
SF35-1200050DP |
SF35-1250050DP |
|
0.01A |
SF35-1000010DP |
SF35-1050010DP |
SF35-1100010DP |
SF35-1150010DP |
SF35-1200010DP |
SF35-1250010DP |
|
7V |
7.5V |
8V |
8.5V |
9V |
9.5V |
|
|
0.50A |
SF35-0700500DP |
SF35-0750500DP |
|
|
|
|
|
0.45A |
SF35-0700450DP |
SF35-0750450DP |
SF35-0800450DP |
SF35-0850450DP |
SF35-0900450DP |
|
|
0.40A |
SF35-0700400DP |
SF35-0750400DP |
SF35-0800400DP |
SF35-0850400DP |
SF35-0900400DP |
SF35-0950400DP |
|
0.30A |
SF35-0700300DP |
SF35-0750300DP |
SF35-0800300DP |
SF35-0850300DP |
SF35-0900300DP |
SF35-0950300DP |
|
0.20A |
SF35-0700200DP |
SF35-0750200DP |
SF35-0800200DP |
SF35-0850200DP |
SF35-0900200DP |
SF35-0950200DP |
|
0.10A |
SF35-0700100DP |
SF35-0750100DP |
SF35-0800100DP |
SF35-0850100DP |
SF35-0900100DP |
SF35-0950100DP |
|
0.05A |
SF35-0700050DP |
SF35-0750050DP |
SF35-0800050DP |
SF35-0850050DP |
SF35-0900050DP |
SF35-0950050DP |
|
0.01A |
SF35-0700010DP |
SF35-0750010DP |
SF35-0800010DP |
SF35-0850010DP |
SF35-0900010DP |
SF35-0950010DP |
|
4V |
4.5V |
5V |
5.5V |
6V |
6.5V |
|
|
0.80A |
SF35-0400800DP |
|
|
|
|
|
|
0.70A |
SF35-0400700DP |
SF35-0450700DP |
|
|
|
|
|
0.60A |
SF35-0400600DP |
SF35-0450600DP |
SF35-0500600DP |
SF35-0550600DP |
SF35-0600600DP |
|
|
0.50A |
SF35-0400500DP |
SF35-0450500DP |
SF35-0500500DP |
SF35-0550500DP |
SF35-0600500DP |
SF35-0650500DP |
|
0.40A |
SF35-0400400DP |
SF35-0450400DP |
SF35-0500400DP |
SF35-0550400DP |
SF35-0600400DP |
SF35-0650400DP |
|
0.30A |
SF35-0400300DP |
SF35-0450300DP |
SF35-0500300DP |
SF35-0550300DP |
SF35-0600300DP |
SF35-0650300DP |
|
0.20A |
SF35-0400200DP |
SF35-0450200DP |
SF35-0500200DP |
SF35-0550200DP |
SF35-0600200DP |
SF35-0650200DP |
|
0.10A |
SF35-0400100DP |
SF35-0450100DP |
SF35-0500100DP |
SF35-0550100DP |
SF35-0600100DP |
SF35-0650100DP |
|
0.05A |
SF35-0400050DP |
SF35-0450050DP |
SF35-0500050DP |
SF35-0550050DP |
SF35-0600050DP |
SF35-0650050DP |
|
0.01A |
SF35-0400010DP |
SF35-0450010DP |
SF35-0500010DP |
SF35-0550010DP |
SF35-0600010DP |
SF35-0650010DP |
|
1V |
1.5V |
2V |
2.5V |
3V |
3.5V |
|
|
1.00A |
SF35-0101000DP |
SF35-0151000DP |
|
|
|
|
|
0.90A |
SF35-0100900DP |
SF35-0150900DP |
SF35-0200900DP |
SF35-0250900DP |
SF35-0300900DP |
|
|
0.80A |
SF35-0100800DP |
SF35-0150800DP |
SF35-0200800DP |
SF35-0250800DP |
SF35-0300800DP |
SF35-0350800DP |
|
0.70A |
SF35-0100700DP |
SF35-0150700DP |
SF35-0200700DP |
SF35-0250700DP |
SF35-0300700DP |
SF35-0350700DP |
|
0.60A |
SF35-0100600DP |
SF35-0150600DP |
SF35-0200600DP |
SF35-0250600DP |
SF35-0300600DP |
SF35-0350600DP |
|
0.50A |
SF35-0100500DP |
SF35-0150500DP |
SF35-0200500DP |
SF35-0250500DP |
SF35-0300500DP |
SF35-0350500DP |
|
0.40A |
SF35-0100400DP |
SF35-0150400DP |
SF35-0200400DP |
SF35-0250400DP |
SF35-0300400DP |
SF35-0350400DP |
|
0.30A |
SF35-0100300DP |
SF35-0150300DP |
SF35-0200300DP |
SF35-0250300DP |
SF35-0300300DP |
SF35-0350300DP |
|
0.20A |
SF35-0100200DP |
SF35-0150200DP |
SF35-0200200DP |
SF35-0250200DP |
SF35-0300200DP |
SF35-0350200DP |
|
0.10A |
SF35-0100100DP |
SF35-0150100DP |
SF35-0200100DP |
SF35-0250100DP |
SF35-0300100DP |
SF35-0350100DP |
|
0.05A |
SF35-0100050DP |
SF35-0150050DP |
SF35-0200050DP |
SF35-0250050DP |
SF35-0300050DP |
SF35-0350050DP |
|
0.01A |
SF35-0100010DP |
SF35-0150010DP |
SF35-0200010DP |
SF35-0250010DP |
SF35-0300010DP |
SF35-0350010DP |
 |
 |
 |
 |
 |
 |
