GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
1800V AC, one second |
PSE |
J 60950 |
|
Primary to Secondary |
1800V AC, one second |
||
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
100V AC |
Output Voltage |
1-15V DC |
|
Input Frequency |
50/60Hz |
Output Tolerance (Load) |
5% |
|
Output Current |
0.05-0.3A |
||
|
Output Watt |
1.35VA max |
||
LINEAR ADAPTOR
WALLMOUNT

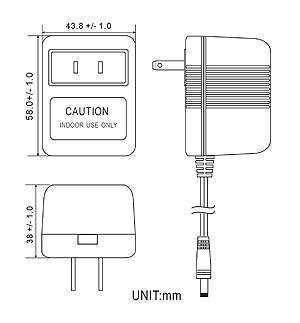

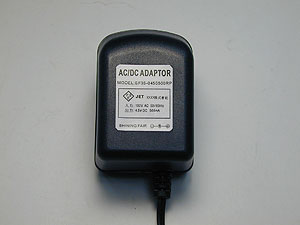

EI 35 AC TO DC (REGULATED) ADAPTOR
INPUT:100V AC 50/60 Hz
OUTPUT SPECIFICATION
|
13V |
13.5V |
14V |
14.5V |
15V |
|
|
|
0.09A |
SF35-1300090RP |
SF35-1350090RP |
SF35-1400090RP |
SF35-1450090RP |
SF35-1500090RP |
|
|
0.05A |
SF35-1300050RP |
SF35-1350050RP |
SF35-1400050RP |
SF35-1450050RP |
SF35-1500050RP |
|
|
10V |
10.5V |
11V |
11.5V |
12V |
12.5V |
|
|
0.10A |
SF35-1000100RP |
SF35-1050100RP |
SF35-1100100RP |
SF35-1150100RP |
SF35-1200100RP |
|
|
0.09A |
SF35-1000090RP |
SF35-1050090RP |
SF35-1100090RP |
SF35-1150090RP |
SF35-1200090RP |
SF35-1250090RP |
|
0.05A |
SF35-1000050RP |
SF35-1050050RP |
SF35-1100050RP |
SF35-1150050RP |
SF35-1200050RP |
SF35-1250050RP |
|
7V |
7.5V |
8V |
8.5V |
9V |
9.5V |
|
|
0.15A |
SF35-0700150RP |
SF35-0750150RP |
SF35-0800150RP |
SF35-0850150RP |
SF35-0900150RP |
|
|
0.10A |
SF35-0700100RP |
SF35-0750100RP |
SF35-0800100RP |
SF35-0850100RP |
SF35-0900100RP |
SF35-0950100RP |
|
0.05A |
SF35-0700050RP |
SF35-0750050RP |
SF35-0800050RP |
SF35-0850050RP |
SF35-0900050RP |
SF35-0950050RP |
|
4V |
4.5V |
5V |
5.5V |
6V |
6.5V |
|
|
0.30A |
SF35-0400300RP |
|
|
|
|
|
|
0.25A |
SF35-0400250RP |
SF35-0450250RP |
SF35-0500250RP |
|
|
|
|
0.20A |
SF35-0400200RP |
SF35-0450200RP |
SF35-0500200RP |
SF35-0550200RP |
SF35-0600200RP |
|
|
0.15A |
SF35-0400150RP |
SF35-0450150RP |
SF35-0500150RP |
SF35-0550150RP |
SF35-0600150RP |
SF35-0650150RP |
|
0.10A |
SF35-0400100RP |
SF35-0450100RP |
SF35-0500100RP |
SF35-0550100RP |
SF35-0600100RP |
SF35-0650100RP |
|
0.05A |
SF35-0400050RP |
SF35-0450050RP |
SF35-0500050RP |
SF35-0550050RP |
SF35-0600050RP |
SF35-0650050RP |
|
1V |
1.5V |
2V |
2.5V |
3V |
3.5V |
|
|
0.30A |
SF35-0100300RP |
SF35-0150300RP |
SF35-0200300RP |
SF35-0250300RP |
SF35-0300300RP |
SF35-0350300RP |
|
0.20A |
SF35-0100200RP |
SF35-0150200RP |
SF35-0200200RP |
SF35-0250200RP |
SF35-0300200RP |
SF35-0350200RP |
|
0.10A |
SF35-0100100RP |
SF35-0150100RP |
SF35-0200100RP |
SF35-0250100RP |
SF35-0300100RP |
SF35-0350100RP |
|
0.05A |
SF35-0100050RP |
SF35-0150050RP |
SF35-0200050RP |
SF35-0250050RP |
SF35-0300050RP |
SF35-0350050RP |
|
1-3.5V |
4-6.5V |
7-9.5V |
10-12.5V |
13-15V |
 |
 |
 |
 |
 |
 |
