LINEAR ADAPTOR
WALLMOUNT

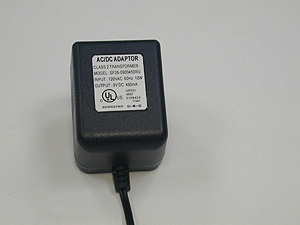

EI 35 AC TO DC (REGULATED) ADAPTOR
Input:120V AC 60Hz
OUTPUT SPECIFICATION
|
GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
1800V AC, one second |
UL/CUL |
UL 1310/ |
|
Primary to Secondary |
1800V AC, one second |
||
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
120V AC |
Output Voltage |
1-26V DC |
|
Input Frequency |
60Hz |
Output Tolerance (Load) |
5% |
|
|
|
Output Current |
0.01-0.6A |
|
|
|
Output Watt |
2.4VA max |
|
1-3.5V |
4-6.5V |
7-9.5V |
10-12.5V |
13-15.5V |
16-18.5V |
19-21.5V |
22-24.5V |
25-26V |
|---|
|
25V |
25.5V |
26V |
|
|
|
|
|
0.05A |
SF35-2500050RU |
SF35-2550050RU |
SF35-2600050RU |
|
|
|
|
0.01A |
SF35-2500010RU |
SF35-2550010RU |
SF35-2600010RU |
|
|
|
|
22V |
22.5V |
23V |
23.5V |
24V |
24.5V |
|
|
0.05A |
SF35-2200050RU |
SF35-2250050RU |
SF35-2300050RU |
SF35-2350050RU |
SF35-2400050RU |
SF35-2450050RU |
|
0.01A |
SF35-2200010RU |
SF35-2250010RU |
SF35-2300010RU |
SF35-2350010RU |
SF35-2400010RU |
SF35-2450010RU |
|
19V |
19.5V |
20V |
20.5V |
21V |
21.5V |
|
|
0.10A |
SF35-1900100RU |
SF35-1950100RU |
SF35-2000100RU |
SF35-2050100RU |
|
|
|
0.05A |
SF35-1900050RU |
SF35-1950050RU |
SF35-2000050RU |
SF35-2050050RU |
SF35-2100050RU |
SF35-2150050RU |
|
0.01A |
SF35-1900010RU |
SF35-1950010RU |
SF35-2000010RU |
SF35-2050010RU |
SF35-2100010RU |
SF35-2150010RU |
|
16V |
16.5V |
17V |
17.5V |
18V |
18.5V |
|
|
0.15A |
SF35-1600150RU |
|
|
|
|
|
|
0.10A |
SF35-1600100RU |
SF35-1650100RU |
SF35-1700100RU |
SF35-1750100RU |
SF35-1800100RU |
SF35-1850100RU |
|
0.05A |
SF35-1600050RU |
SF35-1650050RU |
SF35-1700050RU |
SF35-1750050RU |
SF35-1800050RU |
SF35-1850050RU |
|
0.01A |
SF35-1600010RU |
SF35-1650010RU |
SF35-1700010RU |
SF35-1750010RU |
SF35-1800010RU |
SF35-1850010RU |
|
13V |
13.5V |
14V |
14.5V |
15V |
15.5V |
|
|
0.15A |
SF35-1300150RU |
SF35-1350150RU |
SF35-1400150RU |
SF35-1450150RU |
SF35-1500150RU |
SF35-1550150RU |
|
0.10A |
SF35-1300100RU |
SF35-1350100RU |
SF35-1400100RU |
SF35-1450100RU |
SF35-1500100RU |
SF35-1550100RU |
|
0.05A |
SF35-1300050RU |
SF35-1350050RU |
SF35-1400050RU |
SF35-1450050RU |
SF35-1500050RU |
SF35-1550050RU |
|
0.01A |
SF35-1300010RU |
SF35-1350010RU |
SF35-1400010RU |
SF35-1450010RU |
SF35-1500010RU |
SF35-1550010RU |
|
10V |
10.5V |
11V |
11.5V |
12V |
12.5V |
|
|
0.20A |
SF35-1000200RU |
SF35-1050200RU |
SF35-1100200RU |
SF35-1150200RU |
SF35-1200200RU |
|
|
0.15A |
SF35-1000150RU |
SF35-1050150RU |
SF35-1100150RU |
SF35-1150150RU |
SF35-1200150RU |
SF35-1250150RU |
|
0.10A |
SF35-1000100RU |
SF35-1050100RU |
SF35-1100100RU |
SF35-1150100RU |
SF35-1200100RU |
SF35-1250100RU |
|
0.05A |
SF35-1000050RU |
SF35-1050050RU |
SF35-1100050RU |
SF35-1150050RU |
SF35-1200050RU |
SF35-1250050RU |
|
0.01A |
SF35-1000010RU |
SF35-1050010RU |
SF35-1100010RU |
SF35-1150010RU |
SF35-1200010RU |
SF35-1250010RU |
|
7V |
7.5V |
8V |
8.5V |
9V |
9.5V |
|
|
0.25A |
SF35-0700250RU |
SF35-0750250RU |
SF35-0800250RU |
SF35-0850250RU |
SF35-0900250RU |
|
|
0.20A |
SF35-0700200RU |
SF35-0750200RU |
SF35-0800200RU |
SF35-0850200RU |
SF35-0900200RU |
SF35-0950200RU |
|
0.10A |
SF35-0700100RU |
SF35-0750100RU |
SF35-0800100RU |
SF35-0850100RU |
SF35-0900100RU |
SF35-0950100RU |
|
0.05A |
SF35-0700050RU |
SF35-0750050RU |
SF35-0800050RU |
SF35-0850050RU |
SF35-0900050RU |
SF35-0950050RU |
|
0.01A |
SF35-0700010RU |
SF35-0750010RU |
SF35-0800010RU |
SF35-0850010RU |
SF35-0900010RU |
SF35-0950010RU |
|
4V |
4.5V |
5V |
5.5V |
6V |
6.5V |
|
|
0.40A |
SF35-0400400RU |
|
|
|
|
|
|
0.30A |
SF35-0400300RU |
SF35-0450300RU |
SF35-0500300RU |
SF35-0550300RU |
SF35-0600300RU |
|
|
0.25A |
SF35-0400250RU |
SF35-0450250RU |
SF35-0500250RU |
SF35-0550250RU |
SF35-0600250RU |
SF35-0650250RU |
|
0.20A |
SF35-0400200RU |
SF35-0450200RU |
SF35-0500200RU |
SF35-0550200RU |
SF35-0600200RU |
SF35-0650200RU |
|
0.10A |
SF35-0400100RU |
SF35-0450100RU |
SF35-0500100RU |
SF35-0550100RU |
SF35-0600100RU |
SF35-0650100RU |
|
0.05A |
SF35-0400050RU |
SF35-0450050RU |
SF35-0500050RU |
SF35-0550050RU |
SF35-0600050RU |
SF35-0650050RU |
|
0.01A |
SF35-0400010RU |
SF35-0450010RU |
SF35-0500010RU |
SF35-0550010RU |
SF35-0600010RU |
SF35-0650010RU |
|
1V |
1.5V |
2V |
2.5V |
3V |
3.5V |
|
|
0.6A |
SF35-0100600RU |
SF35-0150600RU |
|
|
|
|
|
0.5A |
SF35-0100500RU |
SF35-0150500RU |
SF35-0200500RU |
SF35-0250500RU |
SF35-0300500RU |
|
|
0.4A |
SF35-0100400RU |
SF35-0150400RU |
SF35-0200400RU |
SF35-0250400RU |
SF35-0300400RU |
SF35-0350400RU |
|
0.3A |
SF35-0100300RU |
SF35-0150300RU |
SF35-0200300RU |
SF35-0250300RU |
SF35-0300300RU |
SF35-0350300RU |
|
0.2A |
SF35-0100200RU |
SF35-0150200RU |
SF35-0200200RU |
SF35-0250200RU |
SF35-0300200RU |
SF35-0350200RU |
|
0.1A |
SF35-0100100RU |
SF35-0150100RU |
SF35-0200100RU |
SF35-0250100RU |
SF35-0300100RU |
SF35-0350100RU |
|
0.05A |
SF35-0100050RU |
SF35-0150050RU |
SF35-0200050RU |
SF35-0250050RU |
SF35-0300050RU |
SF35-0350050RU |
|
0.01A |
SF35-0100010RU |
SF35-0150010RU |
SF35-0200010RU |
SF35-0250010RU |
SF35-0300010RU |
SF35-0350010RU |
 |
 |
 |
 |
 |
 |
