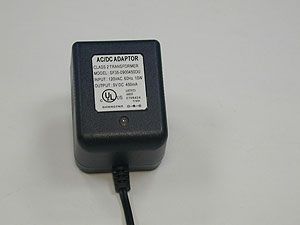

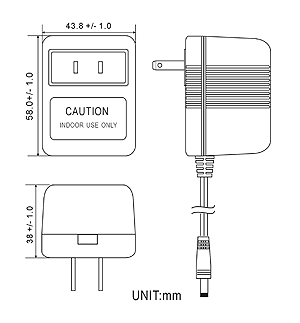

LINEAR ADAPTOR
WALLMOUNT
EI 35 AC TO DC (BATTERY CHARGER)
Input:120V AC 60Hz
OUTPUT SPECIFICATION
|
GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
1800V AC, one second |
UL/CUL |
UL 1310/ |
|
Primary to Secondary |
1800V AC, one second |
||
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
120V AC |
Output Voltage |
1-26V DC |
|
Input Frequency |
60Hz |
Output Tolerance (Load) |
5% |
|
|
|
Output Current |
0.01-0.6A |
|
|
|
Output Watt |
2.4VA max |
|
1-3.5V |
4-6.5V |
7-9.5V |
10-12.5V |
13-15.5V |
16-18.5V |
19-21.5V |
22-24.5V |
25-26V |
|---|
|
25V |
25.5V |
26V |
|
|
|
|
|
0.05A |
SF35-2500050CU |
SF35-2550050CU |
SF35-2600050CU |
|
|
|
|
0.01A |
SF35-2500010CU |
SF35-2550010CU |
SF35-2600010CU |
|
|
|
|
22V |
22.5V |
23V |
23.5V |
24V |
24.5V |
|
|
0.05A |
SF35-2200050CU |
SF35-2250050CU |
SF35-2300050CU |
SF35-2350050CU |
SF35-2400050CU |
SF35-2450050CU |
|
0.01A |
SF35-2200010CU |
SF35-2250010CU |
SF35-2300010CU |
SF35-2350010CU |
SF35-2400010CU |
SF35-2450010CU |
|
19V |
19.5V |
20V |
20.5V |
21V |
21.5V |
|
|
0.10A |
SF35-1900100CU |
SF35-1950100CU |
SF35-2000100CU |
SF35-2050100CU |
|
|
|
0.05A |
SF35-1900050CU |
SF35-1950050CU |
SF35-2000050CU |
SF35-2050050CU |
SF35-2100050CU |
SF35-2150050CU |
|
0.01A |
SF35-1900010CU |
SF35-1950010CU |
SF35-2000010CU |
SF35-2050010CU |
SF35-2100010CU |
SF35-2150010CU |
|
16V |
16.5V |
17V |
17.5V |
18V |
18.5V |
|
|
0.15A |
SF35-1600150CU |
|
|
|
|
|
|
0.10A |
SF35-1600100CU |
SF35-1650100CU |
SF35-1700100CU |
SF35-1750100CU |
SF35-1800100CU |
SF35-1850100CU |
|
0.05A |
SF35-1600050CU |
SF35-1650050CU |
SF35-1700050CU |
SF35-1750050CU |
SF35-1800050CU |
SF35-1850050CU |
|
0.01A |
SF35-1600010CU |
SF35-1650010CU |
SF35-1700010CU |
SF35-1750010CU |
SF35-1800010CU |
SF35-1850010CU |
|
13V |
13.5V |
14V |
14.5V |
15V |
15.5V |
|
|
0.15A |
SF35-1300150CU |
SF35-1350150CU |
SF35-1400150CU |
SF35-1450150CU |
SF35-1500150CU |
SF35-1550150CU |
|
0.10A |
SF35-1300100CU |
SF35-1350100CU |
SF35-1400100CU |
SF35-1450100CU |
SF35-1500100CU |
SF35-1550100CU |
|
0.05A |
SF35-1300050CU |
SF35-1350050CU |
SF35-1400050CU |
SF35-1450050CU |
SF35-1500050CU |
SF35-1550050CU |
|
0.01A |
SF35-1300010CU |
SF35-1350010CU |
SF35-1400010CU |
SF35-1450010CU |
SF35-1500010CU |
SF35-1550010CU |
|
10V |
10.5V |
11V |
11.5V |
12V |
12.5V |
|
|
0.20A |
SF35-1000200CU |
SF35-1050200CU |
SF35-1100200CU |
SF35-1150200CU |
SF35-1200200CU |
|
|
0.15A |
SF35-1000150CU |
SF35-1050150CU |
SF35-1100150CU |
SF35-1150150CU |
SF35-1200150CU |
SF35-1250150CU |
|
0.10A |
SF35-1000100CU |
SF35-1050100CU |
SF35-1100100CU |
SF35-1150100CU |
SF35-1200100CU |
SF35-1250100CU |
|
0.05A |
SF35-1000050CU |
SF35-1050050CU |
SF35-1100050CU |
SF35-1150050CU |
SF35-1200050CU |
SF35-1250050CU |
|
0.01A |
SF35-1000010CU |
SF35-1050010CU |
SF35-1100010CU |
SF35-1150010CU |
SF35-1200010CU |
SF35-1250010CU |
|
7V |
7.5V |
8V |
8.5V |
9V |
9.5V |
|
|
0.25A |
SF35-0700250CU |
SF35-0750250CU |
SF35-0800250CU |
SF35-0850250CU |
SF35-0900250CU |
|
|
0.20A |
SF35-0700200CU |
SF35-0750200CU |
SF35-0800200CU |
SF35-0850200CU |
SF35-0900200CU |
SF35-0950200CU |
|
0.10A |
SF35-0700100CU |
SF35-0750100CU |
SF35-0800100CU |
SF35-0850100CU |
SF35-0900100CU |
SF35-0950100CU |
|
0.05A |
SF35-0700050CU |
SF35-0750050CU |
SF35-0800050CU |
SF35-0850050CU |
SF35-0900050CU |
SF35-0950050CU |
|
0.01A |
SF35-0700010CU |
SF35-0750010CU |
SF35-0800010CU |
SF35-0850010CU |
SF35-0900010CU |
SF35-0950010CU |
|
4V |
4.5V |
5V |
5.5V |
6V |
6.5V |
|
|
0.40A |
SF35-0400400CU |
|
|
|
|
|
|
0.30A |
SF35-0400300CU |
SF35-0450300CU |
SF35-0500300CU |
SF35-0550300CU |
SF35-0600300CU |
|
|
0.25A |
SF35-0400250CU |
SF35-0450250CU |
SF35-0500250CU |
SF35-0550250CU |
SF35-0600250CU |
SF35-0650250CU |
|
0.20A |
SF35-0400200CU |
SF35-0450200CU |
SF35-0500200CU |
SF35-0550200CU |
SF35-0600200CU |
SF35-0650200CU |
|
0.10A |
SF35-0400100CU |
SF35-0450100CU |
SF35-0500100CU |
SF35-0550100CU |
SF35-0600100CU |
SF35-0650100CU |
|
0.05A |
SF35-0400050CU |
SF35-0450050CU |
SF35-0500050CU |
SF35-0550050CU |
SF35-0600050CU |
SF35-0650050CU |
|
0.01A |
SF35-0400010CU |
SF35-0450010CU |
SF35-0500010CU |
SF35-0550010CU |
SF35-0600010CU |
SF35-0650010CU |
|
1V |
1.5V |
2V |
2.5V |
3V |
3.5V |
|
|
0.6A |
SF35-0100600CU |
SF35-0150600CU |
|
|
|
|
|
0.5A |
SF35-0100500CU |
SF35-0150500CU |
SF35-0200500CU |
SF35-0250500CU |
SF35-0300500CU |
|
|
0.4A |
SF35-0100400CU |
SF35-0150400CU |
SF35-0200400CU |
SF35-0250400CU |
SF35-0300400CU |
SF35-0350400CU |
|
0.3A |
SF35-0100300CU |
SF35-0150300CU |
SF35-0200300CU |
SF35-0250300CU |
SF35-0300300CU |
SF35-0350300CU |
|
0.2A |
SF35-0100200CU |
SF35-0150200CU |
SF35-0200200CU |
SF35-0250200CU |
SF35-0300200CU |
SF35-0350200CU |
|
0.1A |
SF35-0100100CU |
SF35-0150100CU |
SF35-0200100CU |
SF35-0250100CU |
SF35-0300100CU |
SF35-0350100CU |
|
0.05A |
SF35-0100050CU |
SF35-0150050CU |
SF35-0200050CU |
SF35-0250050CU |
SF35-0300050CU |
SF35-0350050CU |
|
0.01A |
SF35-0100010CU |
SF35-0150010CU |
SF35-0200010CU |
SF35-0250010CU |
SF35-0300010CU |
SF35-0350010CU |
 |
 |
 |
 |
 |
 |
