GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30¢J |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70¢J |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
3750V AC, one second |
BS/CB/CE |
EN 60950 |
|
Primary to Secondary |
3750V AC, one second |
||
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
230V AC |
Output Voltage |
3-28V DC |
|
Input Frequency |
50Hz |
Output Tolerance (Load) |
5% |
|
Output Current |
0.05-0.6A |
||
|
Output Watt |
3.15VA max |
||

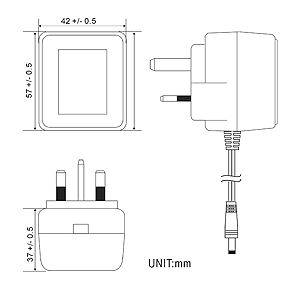

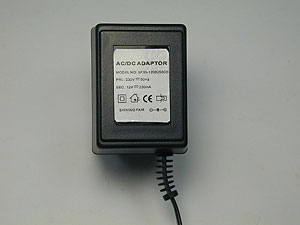

LINEAR ADAPTOR
WALLMOUNT
EI 35 AC TO DC ADAPTOR
INPUT:230V AC 50Hz
OUTPUT SPECIFICATION
|
3-5.5V |
6-8.5V |
9-11.5V |
12-14.5V |
15-20V |
21-26V |
27-28V |
|---|
|
27V |
28V |
|
|
|
|
|
|
0.15A |
SF35-2700150DB |
SF35-2800150DB |
¡@ |
¡@ |
¡@ |
¡@ |
|
0.10A |
SF35-2700100DB |
SF35-2800100DB |
¡@ |
¡@ |
¡@ |
¡@ |
|
0.05A |
SF35-2700050DB |
SF35-2800050DB |
¡@ |
¡@ |
¡@ |
¡@ |
|
21V |
22V |
23V |
24V |
25V |
26V |
|
|
0.20A |
¡@ |
¡@ |
¡@ |
¡@ |
SF35-2500200DB |
¡@ |
|
0.15A |
SF35-2100150DB |
¡@ |
¡@ |
¡@ |
SF35-2500150DB |
SF35-2600150DB |
|
0.10A |
SF35-2100100DB |
SF35-2200100DB |
SF35-2300100DB |
SF35-2400100DB |
SF35-2500100DB |
SF35-2600100DB |
|
0.05A |
SF35-2100050DB |
SF35-2200050DB |
SF35-2300050DB |
SF35-2400050DB |
SF35-2500050DB |
SF35-2600050DB |
|
15V |
16V |
17V |
18V |
19V |
20V |
|
|
0.20A |
SF35-1500200DB |
¡@ |
¡@ |
¡@ |
¡@ |
¡@ |
|
0.15A |
SF35-1500150DB |
SF35-1600150DB |
SF35-1700150DB |
SF35-1800150DB |
SF35-1900150DB |
SF35-2000150DB |
|
0.10A |
SF35-1500100DB |
SF35-1600100DB |
SF35-1700100DB |
SF35-1800100DB |
SF35-1900100DB |
SF35-2000100DB |
|
0.05A |
SF35-1500050DB |
SF35-1600050DB |
SF35-1700050DB |
SF35-1800050DB |
SF35-1900050DB |
SF35-2000050DB |
|
12V |
12.5V |
13V |
13.5V |
14V |
14.5V |
|
|
0.25A |
SF35-1200250DB |
SF35-1250250DB |
¡@ |
¡@ |
¡@ |
¡@ |
|
0.20A |
SF35-1200200DB |
SF35-1250200DB |
SF35-1300200DB |
SF35-1350200DB |
SF35-1400200DB |
SF35-1450200DB |
|
0.10A |
SF35-1200100DB |
SF35-1250100DB |
SF35-1300100DB |
SF35-1350100DB |
SF35-1400100DB |
SF35-1450100DB |
|
0.05A |
SF35-1200050DB |
SF35-1250050DB |
SF35-1300050DB |
SF35-1350050DB |
SF35-1400050DB |
SF35-1450050DB |
|
9V |
9.5V |
10V |
10.5V |
11V |
11.5V |
|
|
0.35A |
SF35-0900350DB |
¡@ |
¡@ |
¡@ |
¡@ |
¡@ |
|
0.30A |
SF35-0900300DB |
SF35-0950300DB |
SF35-1000300DB |
SF35-1050300DB |
¡@ |
¡@ |
|
0.25A |
SF35-0900250DB |
SF35-0950250DB |
SF35-1000250DB |
SF35-1050250DB |
SF35-1100250DB |
SF35-1150250DB |
|
0.20A |
SF35-0900200DB |
SF35-0950200DB |
SF35-1000200DB |
SF35-1050200DB |
SF35-1100200DB |
SF35-1150200DB |
|
0.10A |
SF35-0900100DB |
SF35-0950100DB |
SF35-1000100DB |
SF35-1050100DB |
SF35-1100100DB |
SF35-1150100DB |
|
0.05A |
SF35-0900050DB |
SF35-0950050DB |
SF35-1000050DB |
SF35-1050050DB |
SF35-1100050DB |
SF35-1150050DB |
|
6V |
6.5V |
7V |
7.5V |
8V |
8.5V |
|
|
0.50A |
SF35-0600500DB |
¡@ |
¡@ |
¡@ |
¡@ |
¡@ |
|
0.40A |
SF35-0600400DB |
SF35-0650400DB |
SF35-0700400DB |
SF35-0750400DB |
SF35-0800400DB |
¡@ |
|
0.35A |
SF35-0600350DB |
SF35-0650350DB |
SF35-0700350DB |
SF35-0750350DB |
SF35-0800350DB |
SF35-0850350DB |
|
0.30A |
SF35-0600300DB |
SF35-0650300DB |
SF35-0700300DB |
SF35-0750300DB |
SF35-0800300DB |
SF35-0850300DB |
|
0.20A |
SF35-0600200DB |
SF35-0650200DB |
SF35-0700200DB |
SF35-0750200DB |
SF35-0800200DB |
SF35-0850200DB |
|
0.10A |
SF35-0600100DB |
SF35-0650100DB |
SF35-0700100DB |
SF35-0750100DB |
SF35-0800100DB |
SF35-0850100DB |
|
0.05A |
SF35-0600050DB |
SF35-0650050DB |
SF35-0700050DB |
SF35-0750050DB |
SF35-0800050DB |
SF35-0850050DB |
|
3V |
3.5V |
4V |
4.5V |
5V |
5.5V |
|
|
0.60A |
SF35-0300600DB |
SF35-0350600DB |
SF35-0400600DB |
SF35-0450600DB |
SF35-0500600DB |
¡@ |
|
0.50A |
SF35-0300500DB |
SF35-0350500DB |
SF35-0400500DB |
SF35-0450500DB |
SF35-0500500DB |
SF35-0550500DB |
|
0.40A |
SF35-0300400DB |
SF35-0350400DB |
SF35-0400400DB |
SF35-0450400DB |
SF35-0500400DB |
SF35-0550400DB |
|
0.30A |
SF35-0300300DB |
SF35-0350300DB |
SF35-0400300DB |
SF35-0450300DB |
SF35-0500300DB |
SF35-0550300DB |
|
0.20A |
SF35-0300200DB |
SF35-0350200DB |
SF35-0400200DB |
SF35-0450200DB |
SF35-0500200DB |
SF35-0550200DB |
|
0.10A |
SF35-0300100DB |
SF35-0350100DB |
SF35-0400100DB |
SF35-0450100DB |
SF35-0500100DB |
SF35-0550100DB |
|
0.05A |
SF35-0300050DB |
SF35-0350050DB |
SF35-0400050DB |
SF35-0450050DB |
SF35-0500050DB |
SF35-0550050DB |
 |
 |
 |
 |
 |
 |
