GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30℃ |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70℃ |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
3750V AC, one second |
BS/CB/CE |
EN 60950 |
|
Primary to Secondary |
3750V AC, one second |
||
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
230V AC |
Output Voltage |
1-24V DC |
|
Input Frequency |
50Hz |
Output Tolerance (Load) |
5% |
|
Output Current |
0.01-0.3A |
||
|
Output Watt |
1.5VA max |
||

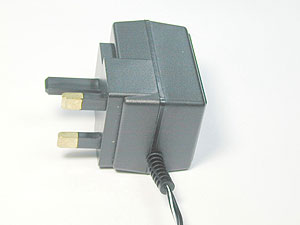

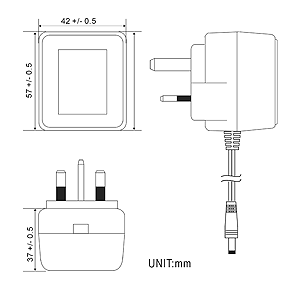

LINEAR ADAPTOR
WALLMOUNT
EI 35 AC TO DC (REGULATED) ADAPTOR
INPUT:230V AC 50Hz
OUTPUT SPECIFICATION
|
1-3.5V |
4-6.5V |
7-9.5V |
10-12.5V |
13-16V |
17-22V |
23-24V |
|---|
|
23V |
24V |
|
|
|
|
|
|
0.05A |
SF35-2300050RB |
SF35-2400050RB |
|
|
|
|
|
0.02A |
SF35-2300020RB |
SF35-2400020RB |
|
|
|
|
|
0.01A |
SF35-2300010RB |
SF35-2400010RB |
|
|
|
|
|
17V |
18V |
19V |
20V |
21V |
22V |
|
|
0.07A |
SF35-1600070RB |
SF35-1800070RB |
|
|
|
|
|
0.06A |
SF35-1600060RB |
SF35-1800060RB |
SF35-1900060RB |
|
|
|
|
0.05A |
SF35-1600050RB |
SF35-1800050RB |
SF35-1900050RB |
SF35-2000050RB |
SF35-2100050RB |
SF35-2200050RB |
|
0.02A |
SF35-1600020RB |
SF35-1800020RB |
SF35-1900020RB |
SF35-2000020RB |
SF35-2100020RB |
SF35-2200020RB |
|
0.01A |
|
|
SF35-1900010RB |
SF35-2000010RB |
SF35-2100010RB |
SF35-2200010RB |
|
13V |
13.5V |
14V |
14.5V |
15V |
16V |
|
|
0.09A |
SF35-1300090RB |
SF35-1350090RB |
SF35-1400090RB |
SF35-1450090RB |
SF35-1500090RB |
|
|
0.08A |
SF35-1300080RB |
SF35-1350080RB |
SF35-1400080RB |
SF35-1450080RB |
SF35-1500080RB |
SF35-1600080RB |
|
0.05A |
SF35-1300050RB |
SF35-1350050RB |
SF35-1400050RB |
SF35-1450050RB |
SF35-1500050RB |
SF35-1600050RB |
|
0.02A |
SF35-1300020RB |
SF35-1350020RB |
SF35-1400020RB |
SF35-1450020RB |
SF35-1500020RB |
SF35-1600020RB |
|
10V |
10.5V |
11V |
11.5V |
12V |
12.5V |
|
|
0.10A |
SF35-1000100RB |
SF35-1050100RB |
SF35-1100100RB |
SF35-1150100RB |
SF35-1200100RB |
|
|
0.09A |
SF35-1000090RB |
SF35-1050090RB |
SF35-1100090RB |
SF35-1150090RB |
SF35-1200090RB |
SF35-1250090RB |
|
0.05A |
SF35-1000050RB |
SF35-1050050RB |
SF35-1100050RB |
SF35-1150050RB |
SF35-1200050RB |
SF35-1250050RB |
|
7V |
7.5V |
8V |
8.5V |
9V |
9.5V |
|
|
0.15A |
SF35-0700150RB |
SF35-0750150RB |
SF35-0800150RB |
SF35-0850150RB |
SF35-0900150RB |
|
|
0.10A |
SF35-0700100RB |
SF35-0750100RB |
SF35-0800100RB |
SF35-0850100RB |
SF35-0900100RB |
SF35-0950100RB |
|
0.05A |
SF35-0700050RB |
SF35-0750050RB |
SF35-0800050RB |
SF35-0850050RB |
SF35-0900050RB |
SF35-0950050RB |
|
4V |
4.5V |
5V |
5.5V |
6V |
6.5V |
|
|
0.30A |
SF35-0400300RB |
|
|
|
|
|
|
0.25A |
SF35-0400250RB |
SF35-0450250RB |
SF35-0500250RB |
|
|
|
|
0.20A |
SF35-0400200RB |
SF35-0450200RB |
SF35-0500200RB |
SF35-0550200RB |
SF35-0600200RB |
|
|
0.15A |
SF35-0400150RB |
SF35-0450150RB |
SF35-0500150RB |
SF35-0550150RB |
SF35-0600150RB |
SF35-0650150RB |
|
0.10A |
SF35-0400100RB |
SF35-0450100RB |
SF35-0500100RB |
SF35-0550100RB |
SF35-0600100RB |
SF35-0650100RB |
|
0.05A |
SF35-0400050RB |
SF35-0450050RB |
SF35-0500050RB |
SF35-0550050RB |
SF35-0600050RB |
SF35-0650050RB |
|
1V |
1.5V |
2V |
2.5V |
3V |
3.5V |
|
|
0.30A |
SF35-0100300RB |
SF35-0150300RB |
SF35-0200300RB |
SF35-0250300RB |
SF35-0300300RB |
SF35-0350300RB |
|
0.20A |
SF35-0100200RB |
SF35-0150200RB |
SF35-0200200RB |
SF35-0250200RB |
SF35-0300200RB |
SF35-0350200RB |
|
0.10A |
SF35-0100100RB |
SF35-0150100RB |
SF35-0200100RB |
SF35-0250100RB |
SF35-0300100RB |
SF35-0350100RB |
|
0.05A |
SF35-0100050RB |
SF35-0150050RB |
SF35-0200050RB |
SF35-0250050RB |
SF35-0300050RB |
SF35-0350050RB |
 |
 |
 |
 |
 |
 |
