GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
3750V AC, one second |
GS/CB/CE |
EN 60950 |
|
Primary to Secondary |
3750V AC, one second |
||
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
230V AC |
Output Voltage |
3-24V AC |
|
Input Frequency |
50Hz |
Output Tolerance (Load) |
5% |
|
Output Current |
0.05-1A |
||
|
Output Watt |
3.15VA max |
||
LINEAR ADAPTOR
WALLMOUNT

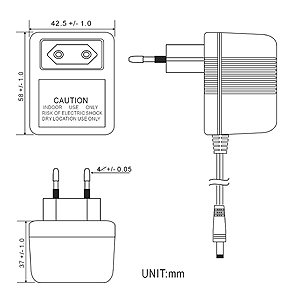

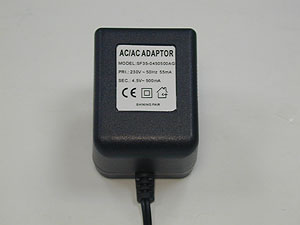

EI 35 AC TO AC ADAPTOR
INPUT:230V AC 50Hz
OUTPUT SPECIFICATION
|
21V |
22V |
23V |
24V |
|
|
|
|
0.15A |
SF35-2100150AG |
|
|
|
|
|
|
0.10A |
SF35-2100100AG |
SF35-2200100AG |
SF35-2300100AG |
SF35-2400100AG |
|
|
|
0.05A |
SF35-2100050AG |
SF35-2200050AG |
SF35-2300050AG |
SF35-2400050AG |
|
|
|
15V |
16V |
17V |
18V |
19V |
20V |
|
|
0.20A |
SF35-1500200AG |
|
|
|
|
|
|
0.15A |
SF35-1500150AG |
SF35-1600150AG |
SF35-1700150AG |
SF35-1800150AG |
SF35-1900150AG |
SF35-2000150AG |
|
0.10A |
SF35-1500100AG |
SF35-1600100AG |
SF35-1700100AG |
SF35-1800100AG |
SF35-1900100AG |
SF35-2000100AG |
|
0.05A |
SF35-1500050AG |
SF35-1600050AG |
SF35-1700050AG |
SF35-1800050AG |
SF35-1900050AG |
SF35-2000050AG |
|
9V |
9.5V |
10V |
10.5V |
11V |
11.5V |
|
|
0.35A |
SF35-0900350AG |
|
|
|
|
|
|
0.30A |
SF35-0900300AG |
SF35-0950300AG |
SF35-1000300AG |
SF35-1050300AG |
|
|
|
0.25A |
SF35-0900250AG |
SF35-0950250AG |
SF35-1000250AG |
SF35-1050250AG |
SF35-1100250AG |
SF35-1150250AG |
|
0.20A |
SF35-0900200AG |
SF35-0950200AG |
SF35-1000200AG |
SF35-1050200AG |
SF35-1100200AG |
SF35-1150200AG |
|
0.10A |
SF35-0900100AG |
SF35-0950100AG |
SF35-1000100AG |
SF35-1050100AG |
SF35-1100100AG |
SF35-1150100AG |
|
0.05A |
SF35-0900050AG |
SF35-0950050AG |
SF35-1000050AG |
SF35-1050050AG |
SF35-1100050AG |
SF35-1150050AG |
|
6V |
6.5V |
7V |
7.5V |
8V |
8.5V |
|
|
0.50A |
SF35-0600500AG |
|
|
|
|
|
|
0.40A |
SF35-0600400AG |
SF35-0650400AG |
SF35-0700400AG |
SF35-0750400AG |
SF35-0800400AG |
|
|
0.35A |
SF35-0600350AG |
SF35-0650350AG |
SF35-0700350AG |
SF35-0750350AG |
SF35-0800350AG |
SF35-0850350AG |
|
0.30A |
SF35-0600300AG |
SF35-0650300AG |
SF35-0700300AG |
SF35-0750300AG |
SF35-0800300AG |
SF35-0850300AG |
|
0.20A |
SF35-0600200AG |
SF35-0650200AG |
SF35-0700200AG |
SF35-0750200AG |
SF35-0800200AG |
SF35-0850200AG |
|
0.10A |
SF35-0600100AG |
SF35-0650100AG |
SF35-0700100AG |
SF35-0750100AG |
SF35-0800100AG |
SF35-0850100AG |
|
0.05A |
SF35-0600050AG |
SF35-0650050AG |
SF35-0700050AG |
SF35-0750050AG |
SF35-0800050AG |
SF35-0850050AG |
|
3V |
3.5V |
4V |
4.5V |
5V |
5.5V |
|
|
1.00A |
SF35-0301000AG |
|
|
|
|
|
|
0.90A |
SF35-0300900AG |
SF35-0350900AG |
|
|
|
|
|
0.80A |
SF35-0300800AG |
SF35-0350800AG |
SF35-0400800AG |
|
|
|
|
0.70A |
SF35-0300700AG |
SF35-0350700AG |
SF35-0400700AG |
SF35-0450700AG |
|
|
|
0.60A |
SF35-0300600AG |
SF35-0350600AG |
SF35-0400600AG |
SF35-0450600AG |
SF35-0500600AG |
|
|
0.50A |
SF35-0300500AG |
SF35-0350500AG |
SF35-0400500AG |
SF35-0450500AG |
SF35-0500500AG |
SF35-0550500AG |
|
0.40A |
SF35-0300400AG |
SF35-0350400AG |
SF35-0400400AG |
SF35-0450400AG |
SF35-0500400AG |
SF35-0550400AG |
|
0.30A |
SF35-0300300AG |
SF35-0350300AG |
SF35-0400300AG |
SF35-0450300AG |
SF35-0500300AG |
SF35-0550300AG |
|
0.20A |
SF35-0300200AG |
SF35-0350200AG |
SF35-0400200AG |
SF35-0450200AG |
SF35-0500200AG |
SF35-0550200AG |
|
0.10A |
SF35-0300100AG |
SF35-0350100AG |
SF35-0400100AG |
SF35-0450100AG |
SF35-0500100AG |
SF35-0550100AG |
|
0.05A |
SF35-0300050AG |
SF35-0350050AG |
SF35-0400050AG |
SF35-0450050AG |
SF35-0500050AG |
SF35-0550050AG |
|
12V |
12.5V |
13V |
13.5V |
14V |
14.5V |
|
|
0.25A |
SF35-1200250AG |
SF35-1250250AG |
|
|
|
|
|
0.20A |
SF35-1200200AG |
SF35-1250200AG |
SF35-1300200AG |
SF35-1350200AG |
SF35-1400200AG |
SF35-1450200AG |
|
0.10A |
SF35-1200100AG |
SF35-1250100AG |
SF35-1300100AG |
SF35-1350100AG |
SF35-1400100AG |
SF35-1450100AG |
|
0.05A |
SF35-1200050AG |
SF35-1250050AG |
SF35-1300050AG |
SF35-1350050AG |
SF35-1400050AG |
SF35-1450050AG |
|
3-5.5V |
6-8.5V |
9-11.5V |
12-14.5V |
15-20V |
21-24V |
 |
 |
 |
 |
 |
 |
