GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
3750V AC, one second |
GS/CB/CE |
EN 60950 |
|
Primary to Secondary |
3750V AC, one second |
||
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
230V AC |
Output Voltage |
3-28V DC |
|
Input Frequency |
50Hz |
Output Tolerance (Load) |
5% |
|
Output Current |
0.05-0.6A |
||
|
Output Watt |
3.15VA max |
||
LINEAR ADAPTOR
WALLMOUNT

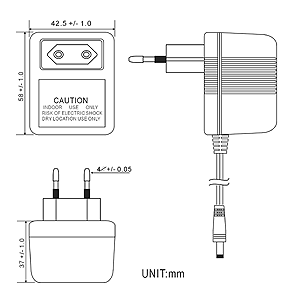

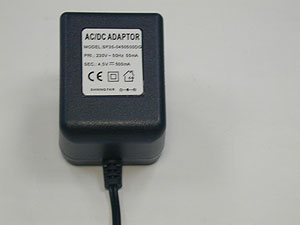

EI 35 AC TO DC ADAPTOR
INPUT:230V AC 50Hz
OUTPUT SPECIFICATION
|
3-5.5V |
6-8.5V |
9-11.5V |
12-14.5V |
15-20V |
21-26V |
27-28V |
|---|
|
27V |
28V |
|
|
|
|
|
|
0.15A |
SF35-2700150DG |
SF35-2800150DG |
|
|
|
|
|
0.10A |
SF35-2700100DG |
SF35-2800100DG |
|
|
|
|
|
0.05A |
SF35-2700050DG |
SF35-2800050DG |
|
|
|
|
|
21V |
22V |
23V |
24V |
25V |
26V |
|
|
0.20A |
|
|
|
|
SF35-2500200DG |
|
|
0.15A |
SF35-2100150DG |
|
|
|
SF35-2500150DG |
SF35-2600150DG |
|
0.10A |
SF35-2100100DG |
SF35-2200100DG |
SF35-2300100DG |
SF35-2400100DG |
SF35-2500100DG |
SF35-2600100DG |
|
0.05A |
SF35-2100050DG |
SF35-2200050DG |
SF35-2300050DG |
SF35-2400050DG |
SF35-2500050DG |
SF35-2600050DG |
|
15V |
16V |
17V |
18V |
19V |
20V |
|
|
0.20A |
SF35-1500200DG |
|
|
|
|
|
|
0.15A |
SF35-1500150DG |
SF35-1600150DG |
SF35-1700150DG |
SF35-1800150DG |
SF35-1900150DG |
SF35-2000150DG |
|
0.10A |
SF35-1500100DG |
SF35-1600100DG |
SF35-1700100DG |
SF35-1800100DG |
SF35-1900100DG |
SF35-2000100DG |
|
0.05A |
SF35-1500050DG |
SF35-1600050DG |
SF35-1700050DG |
SF35-1800050DG |
SF35-1900050DG |
SF35-2000050DG |
|
12V |
12.5V |
13V |
13.5V |
14V |
14.5V |
|
|
0.25A |
SF35-1200250DG |
SF35-1250250DG |
|
|
|
|
|
0.20A |
SF35-1200200DG |
SF35-1250200DG |
SF35-1300200DG |
SF35-1350200DG |
SF35-1400200DG |
SF35-1450200DG |
|
0.10A |
SF35-1200100DG |
SF35-1250100DG |
SF35-1300100DG |
SF35-1350100DG |
SF35-1400100DG |
SF35-1450100DG |
|
0.05A |
SF35-1200050DG |
SF35-1250050DG |
SF35-1300050DG |
SF35-1350050DG |
SF35-1400050DG |
SF35-1450050DG |
|
9V |
9.5V |
10V |
10.5V |
11V |
11.5V |
|
|
0.35A |
SF35-0900350DG |
|
|
|
|
|
|
0.30A |
SF35-0900300DG |
SF35-0950300DG |
SF35-1000300DG |
SF35-1050300DG |
|
|
|
0.25A |
SF35-0900250DG |
SF35-0950250DG |
SF35-1000250DG |
SF35-1050250DG |
SF35-1100250DG |
SF35-1150250DG |
|
0.20A |
SF35-0900200DG |
SF35-0950200DG |
SF35-1000200DG |
SF35-1050200DG |
SF35-1100200DG |
SF35-1150200DG |
|
0.10A |
SF35-0900100DG |
SF35-0950100DG |
SF35-1000100DG |
SF35-1050100DG |
SF35-1100100DG |
SF35-1150100DG |
|
0.05A |
SF35-0900050DG |
SF35-0950050DG |
SF35-1000050DG |
SF35-1050050DG |
SF35-1100050DG |
SF35-1150050DG |
|
6V |
6.5V |
7V |
7.5V |
8V |
8.5V |
|
|
0.50A |
SF35-0600500DG |
|
|
|
|
|
|
0.40A |
SF35-0600400DG |
SF35-0650400DG |
SF35-0700400DG |
SF35-0750400DG |
SF35-0800400DG |
|
|
0.35A |
SF35-0600350DG |
SF35-0650350DG |
SF35-0700350DG |
SF35-0750350DG |
SF35-0800350DG |
SF35-0850350DG |
|
0.30A |
SF35-0600300DG |
SF35-0650300DG |
SF35-0700300DG |
SF35-0750300DG |
SF35-0800300DG |
SF35-0850300DG |
|
0.20A |
SF35-0600200DG |
SF35-0650200DG |
SF35-0700200DG |
SF35-0750200DG |
SF35-0800200DG |
SF35-0850200DG |
|
0.10A |
SF35-0600100DG |
SF35-0650100DG |
SF35-0700100DG |
SF35-0750100DG |
SF35-0800100DG |
SF35-0850100DG |
|
0.05A |
SF35-0600050DG |
SF35-0650050DG |
SF35-0700050DG |
SF35-0750050DG |
SF35-0800050DG |
SF35-0850050DG |
|
3V |
3.5V |
4V |
4.5V |
5V |
5.5V |
|
|
0.60A |
SF35-0300600DG |
SF35-0350600DG |
SF35-0400600DG |
SF35-0450600DG |
SF35-0500600DG |
|
|
0.50A |
SF35-0300500DG |
SF35-0350500DG |
SF35-0400500DG |
SF35-0450500DG |
SF35-0500500DG |
SF35-0550500DG |
|
0.40A |
SF35-0300400DG |
SF35-0350400DG |
SF35-0400400DG |
SF35-0450400DG |
SF35-0500400DG |
SF35-0550400DG |
|
0.30A |
SF35-0300300DG |
SF35-0350300DG |
SF35-0400300DG |
SF35-0450300DG |
SF35-0500300DG |
SF35-0550300DG |
|
0.20A |
SF35-0300200DG |
SF35-0350200DG |
SF35-0400200DG |
SF35-0450200DG |
SF35-0500200DG |
SF35-0550200DG |
|
0.10A |
SF35-0300100DG |
SF35-0350100DG |
SF35-0400100DG |
SF35-0450100DG |
SF35-0500100DG |
SF35-0550100DG |
|
0.05A |
SF35-0300050DG |
SF35-0350050DG |
SF35-0400050DG |
SF35-0450050DG |
SF35-0500050DG |
SF35-0550050DG |
 |
 |
 |
 |
 |
 |
