GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
3750V AC, one second |
GS/CB/CE |
EN 60950 |
|
Primary to Secondary |
3750V AC, one second |
||
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
230V AC |
Output Voltage |
1-24V DC |
|
Input Frequency |
50Hz |
Output Tolerance (Load) |
5% |
|
Output Current |
0.01-0.3A |
||
|
Output Watt |
1.35VA max |
||
LINEAR ADAPTOR
WALLMOUNT

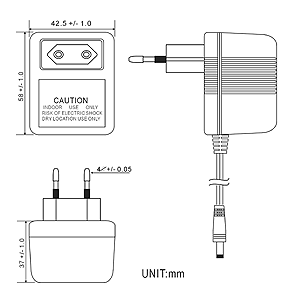

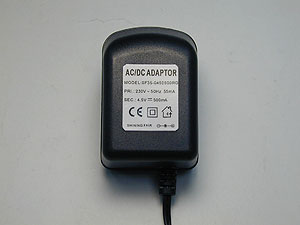

EI 35 AC TO DC (REGULATED) ADAPTOR
INPUT:230V AC 50Hz
OUTPUT SPECIFICATION
|
1-3.5V |
4-6.5V |
7-9.5V |
10-12.5V |
13-16V |
17-22V |
23-24V |
|---|
|
23V |
24V |
|
|
|
|
|
|
0.05A |
SF35-2300050RG |
SF35-2400050RG |
|
|
|
|
|
0.02A |
SF35-2300020RG |
SF35-2400020RG |
|
|
|
|
|
0.01A |
SF35-2300010RG |
SF35-2400010RG |
|
|
|
|
|
17V |
18V |
19V |
20V |
21V |
22V |
|
|
0.07A |
SF35-1600070RG |
SF35-1800070RG |
|
|
|
|
|
0.06A |
SF35-1600060RG |
SF35-1800060RG |
SF35-1900060RG |
|
|
|
|
0.05A |
SF35-1600050RG |
SF35-1800050RG |
SF35-1900050RG |
SF35-2000050RG |
SF35-2100050RG |
SF35-2200050RG |
|
0.02A |
SF35-1600020RG |
SF35-1800020RG |
SF35-1900020RG |
SF35-2000020RG |
SF35-2100020RG |
SF35-2200020RG |
|
0.01A |
|
|
SF35-1900010RG |
SF35-2000010RG |
SF35-2100010RG |
SF35-2200010RG |
|
13V |
13.5V |
14V |
14.5V |
15V |
16V |
|
|
0.09A |
SF35-1300090RG |
SF35-1350090RG |
SF35-1400090RG |
SF35-1450090RG |
SF35-1500090RG |
|
|
0.08A |
SF35-1300080RG |
SF35-1350080RG |
SF35-1400080RG |
SF35-1450080RG |
SF35-1500080RG |
SF35-1600080RG |
|
0.05A |
SF35-1300050RG |
SF35-1350050RG |
SF35-1400050RG |
SF35-1450050RG |
SF35-1500050RG |
SF35-1600050RG |
|
0.02A |
SF35-1300020RG |
SF35-1350020RG |
SF35-1400020RG |
SF35-1450020RG |
SF35-1500020RG |
SF35-1600020RG |
|
10V |
10.5V |
11V |
11.5V |
12V |
12.5V |
|
|
0.10A |
SF35-1000100RG |
SF35-1050100RG |
SF35-1100100RG |
SF35-1150100RG |
SF35-1200100RG |
|
|
0.09A |
SF35-1000090RG |
SF35-1050090RG |
SF35-1100090RG |
SF35-1150090RG |
SF35-1200090RG |
SF35-1250090RG |
|
0.05A |
SF35-1000050RG |
SF35-1050050RG |
SF35-1100050RG |
SF35-1150050RG |
SF35-1200050RG |
SF35-1250050RG |
|
7V |
7.5V |
8V |
8.5V |
9V |
9.5V |
|
|
0.15A |
SF35-0700150RG |
SF35-0750150RG |
SF35-0800150RG |
SF35-0850150RG |
SF35-0900150RG |
|
|
0.10A |
SF35-0700100RG |
SF35-0750100RG |
SF35-0800100RG |
SF35-0850100RG |
SF35-0900100RG |
SF35-0950100RG |
|
0.05A |
SF35-0700050RG |
SF35-0750050RG |
SF35-0800050RG |
SF35-0850050RG |
SF35-0900050RG |
SF35-0950050RG |
|
4V |
4.5V |
5V |
5.5V |
6V |
6.5V |
|
|
0.30A |
SF35-0400300RG |
|
|
|
|
|
|
0.25A |
SF35-0400250RG |
SF35-0450250RG |
SF35-0500250RG |
|
|
|
|
0.20A |
SF35-0400200RG |
SF35-0450200RG |
SF35-0500200RG |
SF35-0550200RG |
SF35-0600200RG |
|
|
0.15A |
SF35-0400150RG |
SF35-0450150RG |
SF35-0500150RG |
SF35-0550150RG |
SF35-0600150RG |
SF35-0650150RG |
|
0.10A |
SF35-0400100RG |
SF35-0450100RG |
SF35-0500100RG |
SF35-0550100RG |
SF35-0600100RG |
SF35-0650100RG |
|
0.05A |
SF35-0400050RG |
SF35-0450050RG |
SF35-0500050RG |
SF35-0550050RG |
SF35-0600050RG |
SF35-0650050RG |
|
1V |
1.5V |
2V |
2.5V |
3V |
3.5V |
|
|
0.30A |
SF35-0100300RG |
SF35-0150300RG |
SF35-0200300RG |
SF35-0250300RG |
SF35-0300300RG |
SF35-0350300RG |
|
0.20A |
SF35-0100200RG |
SF35-0150200RG |
SF35-0200200RG |
SF35-0250200RG |
SF35-0300200RG |
SF35-0350200RG |
|
0.10A |
SF35-0100100RG |
SF35-0150100RG |
SF35-0200100RG |
SF35-0250100RG |
SF35-0300100RG |
SF35-0350100RG |
|
0.05A |
SF35-0100050RG |
SF35-0150050RG |
SF35-0200050RG |
SF35-0250050RG |
SF35-0300050RG |
SF35-0350050RG |
 |
 |
 |
 |
 |
 |
