GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
3750V AC, one second |
SAA/C-tick/CB |
AS/NZS 60950/ |
|
Primary to Secondary |
3750V AC, one second |
||
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
230V AC |
Output Voltage |
1.4-12V DC |
|
Input Frequency |
50/60Hz |
Output Tolerance (Load) |
5% |
|
Output Current |
0.05-1.2A |
||
|
Output Watt |
6VA max |
||
LINEAR ADAPTOR
WALLMOUNT

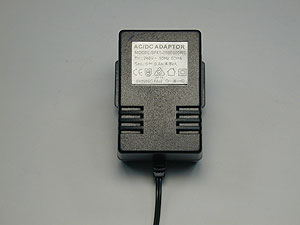

EI 41 AC TO DC (REGULATED) ADAPTOR
INPUT:230V AC 50Hz
OUTPUT SPECIFICATION
|
1.4-7.5V |
9-12V |
|---|
|
9V |
12V |
|
|
|
|
|
|
0.65A |
SF41-0900650RS |
|
|
|
|
|
|
0.60A |
SF41-0900600RS |
|
|
|
|
|
|
0.50A |
SF41-0900500RS |
SF41-1200500RS |
|
|
|
|
|
0.40A |
SF41-0900400RS |
SF41-1200400RS |
|
|
|
|
|
0.30A |
SF41-0900300RS |
SF41-1200300RS |
|
|
|
|
|
0.20A |
SF41-0900200RS |
SF41-1200200RS |
|
|
|
|
|
1.4V |
3V |
4.5V |
5V |
6V |
7.5V |
|
|
1.20A |
|
SF41-0301200RS |
SF41-0451200RS |
|
|
|
|
1.10A |
|
SF41-0301100RS |
SF41-0451100RS |
|
|
|
|
1.00A |
SF41-0141000RS |
SF41-0301000RS |
SF41-0451000RS |
SF41-0501000RS |
SF41-0601000RS |
|
|
0.90A |
SF41-0140900RS |
SF41-0300900RS |
SF41-0450900RS |
SF41-0500900RS |
SF41-0600900RS |
|
|
0.80A |
SF41-0140800RS |
SF41-0300800RS |
SF41-0450800RS |
SF41-0500800RS |
SF41-0600800RS |
SF41-0750800RS |
|
0.70A |
SF41-0140700RS |
SF41-0300700RS |
SF41-0450700RS |
SF41-0500700RS |
SF41-0600700RS |
SF41-0750700RS |
|
0.60A |
SF41-0140600RS |
SF41-0300600RS |
SF41-0450600RS |
SF41-0500600RS |
SF41-0600600RS |
SF41-0750600RS |
|
0.50A |
SF41-0140500RS |
SF41-0300500RS |
SF41-0450500RS |
SF41-0500500RS |
SF41-0600500RS |
SF41-0750500RS |
|
0.40A |
SF41-0140400RS |
SF41-0300400RS |
SF41-0450400RS |
SF41-0500400RS |
SF41-0600400RS |
SF41-0750400RS |
|
0.30A |
SF41-0140300RS |
SF41-0300300RS |
SF41-0450300RS |
SF41-0500300RS |
SF41-0600300RS |
SF41-0750300RS |
|
0.20A |
SF41-0140200RS |
SF41-0300200RS |
SF41-0450200RS |
SF41-0500200RS |
SF41-0600200RS |
SF41-0750200RS |
|
0.10A |
|
|
|
SF41-0500100RS |
SF41-0600100RS |
|
|
0.05A |
|
|
|
SF41-0500050RS |
SF41-0600050RS |
|
 |
 |
 |
 |
 |
 |
