GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
3750V AC, one second |
GS/CB/CE |
EN 60950/EN 61558 |
|
Primary to Secondary |
3750V AC, one second |
||
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
230V AC |
Output Voltage |
3-28V AC |
|
Input Frequency |
50Hz |
Output Tolerance (Load) |
5% |
|
Output Current |
0.1-2A |
||
|
Output Watt |
12VA max |
||
LINEAR ADAPTOR
WALLMOUNT
EI 41 AC TO AC ADAPTOR
INPUT:230V AC 50Hz
OUTPUT SPECIFICATION
|
3-5.5V |
6-8.5V |
9-11.5V |
12-14.5V |
15-19V |
20-25V |
26-28V |
|---|
|
26V |
27V |
28V |
|
|
|
|
|
0.5A |
SF41-2600500AG |
SF41-2700500AG |
|
|
|
|
|
0.4A |
SF41-2600400AG |
SF41-2700400AG |
|
|
|
|
|
0.3A |
SF41-2600300AG |
SF41-2700300AG |
SF41-2800300AG |
|
|
|
|
0.2A |
SF41-2600200AG |
SF41-2700200AG |
SF41-2800200AG |
|
|
|
|
0.1A |
SF41-2600100AG |
SF41-2700100AG |
SF41-2800100AG |
|
|
|
|
20V |
21V |
22V |
23V |
24V |
25V |
|
|
0.6A |
SF41-2000600AG |
|
|
|
|
|
|
0.5A |
SF41-2000500AG |
SF41-2100500AG |
SF41-2200500AG |
SF41-2300500AG |
SF41-2400500AG |
SF41-2500500AG |
|
0.4A |
SF41-2000400AG |
SF41-2100400AG |
SF41-2200400AG |
SF41-2300400AG |
SF41-2400400AG |
SF41-2500400AG |
|
0.3A |
SF41-2000300AG |
SF41-2100300AG |
SF41-2200300AG |
SF41-2300300AG |
SF41-2400300AG |
SF41-2500300AG |
|
0.2A |
SF41-2000200AG |
SF41-2100200AG |
SF41-2200200AG |
SF41-2300200AG |
SF41-2400200AG |
SF41-2500200AG |
|
0.1A |
SF41-2000100AG |
SF41-2100100AG |
SF41-2200100AG |
SF41-2300100AG |
SF41-2400100AG |
SF41-2500100AG |
|
15V |
16V |
17V |
18V |
18.5V |
19V |
|
|
0.8A |
SF41-1500800AG |
|
|
|
|
|
|
0.7A |
SF41-1500700AG |
SF41-1600700AG |
SF41-1700700AG |
SF41-1800700AG |
|
|
|
0.6A |
SF41-1500600AG |
SF41-1600600AG |
SF41-1700600AG |
SF41-1800600AG |
SF41-1850600AG |
SF41-1900600AG |
|
0.5A |
SF41-1500500AG |
SF41-1600500AG |
SF41-1700500AG |
SF41-1800500AG |
SF41-1850500AG |
SF41-1900500AG |
|
0.4A |
SF41-1500400AG |
SF41-1600400AG |
SF41-1700400AG |
SF41-1800400AG |
SF41-1850400AG |
SF41-1900400AG |
|
0.3A |
SF41-1500300AG |
SF41-1600300AG |
SF41-1700300AG |
SF41-1800300AG |
SF41-1850300AG |
SF41-1900300AG |
|
0.2A |
SF41-1500200AG |
SF41-1600200AG |
SF41-1700200AG |
SF41-1800200AG |
SF41-1850200AG |
SF41-1900200AG |
|
0.1A |
|
SF41-1600100AG |
SF41-1700100AG |
SF41-1800100AG |
SF41-1850100AG |
SF41-1900100AG |
|
12V |
12.5V |
13V |
13.5V |
14V |
14.5V |
|
|
1.0A |
SF41-1201000AG |
|
|
|
|
|
|
0.9A |
SF41-1200900AG |
SF41-1250900AG |
SF41-1300900AG |
|
|
|
|
0.8A |
SF41-1200800AG |
SF41-1250800AG |
SF41-1300800AG |
SF41-1350800AG |
SF41-1400800AG |
SF41-1450800AG |
|
0.7A |
SF41-1200700AG |
SF41-1250700AG |
SF41-1300700AG |
SF41-1350700AG |
SF41-1400700AG |
SF41-1450700AG |
|
0.6A |
SF41-1200600AG |
SF41-1250600AG |
SF41-1300600AG |
SF41-1350600AG |
SF41-1400600AG |
SF41-1450600AG |
|
0.5A |
SF41-1200500AG |
SF41-1250500AG |
SF41-1300500AG |
SF41-1350500AG |
SF41-1400500AG |
SF41-1450500AG |
|
0.4A |
SF41-1200400AG |
SF41-1250400AG |
SF41-1300400AG |
SF41-1350400AG |
SF41-1400400AG |
SF41-1450400AG |
|
0.3A |
SF41-1200300AG |
SF41-1250300AG |
SF41-1300300AG |
SF41-1350300AG |
SF41-1400300AG |
SF41-1450300AG |
|
0.2A |
SF41-1200200AG |
SF41-1250200AG |
SF41-1300200AG |
SF41-1350200AG |
SF41-1400200AG |
SF41-1450200AG |
|
9V |
9.5V |
10V |
10.5V |
11V |
11.5V |
|
|
1.2A |
SF41-0901200AG |
SF41-0951200AG |
|
|
|
|
|
1.1A |
SF41-0901100AG |
SF41-0951100AG |
SF41-1001100AG |
SF41-1051100AG |
SF41-1101100AG |
|
|
1.0A |
SF41-0901000AG |
SF41-0951000AG |
SF41-1001000AG |
SF41-1051000AG |
SF41-1101000AG |
SF41-1151000AG |
|
0.9A |
SF41-0900900AG |
SF41-0950900AG |
SF41-1000900AG |
SF41-1050900AG |
SF41-1100900AG |
SF41-1150900AG |
|
0.8A |
SF41-0900800AG |
SF41-0950800AG |
SF41-1000800AG |
SF41-1050800AG |
SF41-1100800AG |
SF41-1150800AG |
|
0.7A |
SF41-0900700AG |
SF41-0950700AG |
SF41-1000700AG |
SF41-1050700AG |
SF41-1100700AG |
SF41-1150700AG |
|
0.6A |
SF41-0900600AG |
SF41-0950600AG |
SF41-1000600AG |
SF41-1050600AG |
SF41-1100600AG |
SF41-1150600AG |
|
0.5A |
SF41-0900500AG |
SF41-0950500AG |
SF41-1000500AG |
SF41-1050500AG |
SF41-1100500AG |
SF41-1150500AG |
|
0.4A |
SF41-0900400AG |
SF41-0950400AG |
SF41-1000400AG |
SF41-1050400AG |
SF41-1100400AG |
SF41-1150400AG |
|
0.3A |
SF41-0900300AG |
SF41-0950300AG |
SF41-1000300AG |
SF41-1050300AG |
SF41-1100300AG |
SF41-1150300AG |
|
0.2A |
|
|
SF41-1000200AG |
SF41-1050200AG |
SF41-1100200AG |
SF41-1150200AG |
|
6V |
6.5V |
7V |
7.5V |
8V |
8.5V |
|
|
1.5A |
SF41-0601500AG |
|
|
|
|
|
|
1.4A |
SF41-0601400AG |
SF41-0651400AG |
SF41-0701400AG |
|
|
|
|
1.3A |
SF41-0601300AG |
SF41-0651300AG |
SF41-0701300AG |
SF41-0751300AG |
SF41-0801300AG |
|
|
1.2A |
SF41-0601200AG |
SF41-0651200AG |
SF41-0701200AG |
SF41-0751200AG |
SF41-0801200AG |
SF41-0851200AG |
|
1.1A |
SF41-0601100AG |
SF41-0651100AG |
SF41-0701100AG |
SF41-0751100AG |
SF41-0801100AG |
SF41-0851100AG |
|
1.0A |
SF41-0601000AG |
SF41-0651000AG |
SF41-0701000AG |
SF41-0751000AG |
SF41-0801000AG |
SF41-0851000AG |
|
0.9A |
SF41-0600900AG |
SF41-0650900AG |
SF41-0700900AG |
SF41-0750900AG |
SF41-0800900AG |
SF41-0850900AG |
|
0.8A |
SF41-0600800AG |
SF41-0650800AG |
SF41-0700800AG |
SF41-0750800AG |
SF41-0800800AG |
SF41-0850800AG |
|
0.7A |
SF41-0600700AG |
SF41-0650700AG |
SF41-0700700AG |
SF41-0750700AG |
SF41-0800700AG |
SF41-0850700AG |
|
0.6A |
SF41-0600600AG |
SF41-0650600AG |
SF41-0700600AG |
SF41-0750600AG |
SF41-0800600AG |
SF41-0850600AG |
|
0.5A |
SF41-0600500AG |
SF41-0650500AG |
SF41-0700500AG |
SF41-0750500AG |
SF41-0800500AG |
SF41-0850500AG |
|
0.4A |
SF41-0600400AG |
SF41-0650400AG |
SF41-0700400AG |
SF41-0750400AG |
SF41-0800400AG |
SF41-0850400AG |
|
0.3A |
SF41-0600300AG |
SF41-0650300AG |
SF41-0700300AG |
SF41-0750300AG |
SF41-0800300AG |
SF41-0850300AG |
|
3V |
3.5V |
4V |
4.5V |
5V |
5.5V |
|
|
2.0A |
SF41-0302000AG |
SF41-0352000AG |
|
|
|
|
|
1.9A |
SF41-0301900AG |
SF41-0351900AG |
SF41-0401900AG |
|
|
|
|
1.8A |
SF41-0301800AG |
SF41-0351800AG |
SF41-0401800AG |
SF41-0451800AG |
|
|
|
1.7A |
SF41-0301700AG |
SF41-0351700AG |
SF41-0401700AG |
SF41-0451700AG |
SF41-0501700AG |
SF41-0551700AG |
|
1.6A |
SF41-0301600AG |
SF41-0351600AG |
SF41-0401600AG |
SF41-0451600AG |
SF41-0501600AG |
SF41-0551600AG |
|
1.5A |
SF41-0301500AG |
SF41-0351500AG |
SF41-0401500AG |
SF41-0451500AG |
SF41-0501500AG |
SF41-0551500AG |
|
1.4A |
SF41-0301400AG |
SF41-0351400AG |
SF41-0401400AG |
SF41-0451400AG |
SF41-0501400AG |
SF41-0551400AG |
|
1.3A |
SF41-0301300AG |
SF41-0351300AG |
SF41-0401300AG |
SF41-0451300AG |
SF41-0501300AG |
SF41-0551300AG |
|
1.2A |
SF41-0301200AG |
SF41-0351200AG |
SF41-0401200AG |
SF41-0451200AG |
SF41-0501200AG |
SF41-0551200AG |
|
1.1A |
SF41-0301100AG |
SF41-0351100AG |
SF41-0401100AG |
SF41-0451100AG |
SF41-0501100AG |
SF41-0551100AG |
|
1.0A |
SF41-0301000AG |
SF41-0351000AG |
SF41-0401000AG |
SF41-0451000AG |
SF41-0501000AG |
SF41-0551000AG |
|
0.9A |
SF41-0300900AG |
SF41-0350900AG |
SF41-0400900AG |
SF41-0450900AG |
SF41-0500900AG |
SF41-0550900AG |
|
0.8A |
SF41-0300800AG |
SF41-0350800AG |
SF41-0400800AG |
SF41-0450800AG |
SF41-0500800AG |
SF41-0550800AG |
|
0.7A |
SF41-0300700AG |
SF41-0350700AG |
SF41-0400700AG |
SF41-0450700AG |
SF41-0500700AG |
SF41-0550700AG |
|
0.6A |
SF41-0300600AG |
SF41-0350600AG |
SF41-0400600AG |
SF41-0450600AG |
SF41-0500600AG |
SF41-0550600AG |
|
0.5A |
|
|
SF41-0400500AG |
SF41-0450500AG |
SF41-0500500AG |
SF41-0550500AG |
|
0.4A |
|
|
|
|
SF41-0500400AG |
SF41-0550400AG |

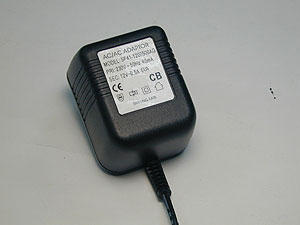

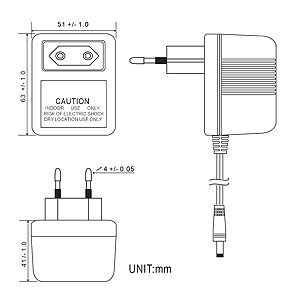

A-TYPE

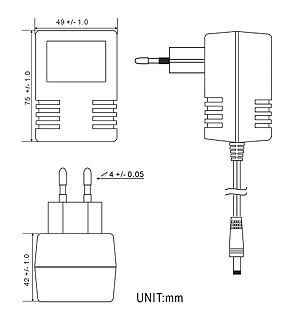

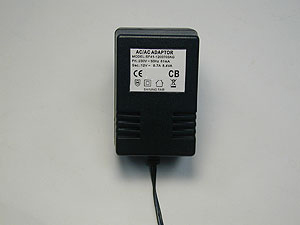

B-TYPE
 |
 |
 |
 |
 |
 |
