GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
3750V AC, one second |
GS/CB/CE |
EN 60950/EN 61558 |
|
Primary to Secondary |
3750V AC, one second |
||
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
230V AC |
Output Voltage |
3-30V DC |
|
Input Frequency |
50Hz |
Output Tolerance (Load) |
5% |
|
Output Current |
0.1-1.8A |
||
|
Output Watt |
9.6VA max |
||
LINEAR ADAPTOR
WALLMOUNT
EI 41 AC TO DC ADAPTOR
INPUT:230V AC 50Hz
OUTPUT SPECIFICATION
|
3-5.5V |
6-8.5V |
9-11.5V |
12-14.5V |
15-20V |
21-26V |
27-30V |
|---|
|
27V |
28V |
29V |
30V |
|
|
|
|
0.3A |
SF41-2700300DG |
SF41-2800300DG |
SF41-2900300DG |
SF41-3000300DG |
|
|
|
0.2A |
SF41-2700200DG |
SF41-2800200DG |
SF41-2900200DG |
SF41-3000200DG |
|
|
|
0.1A |
SF41-2700100DG |
SF41-2800100DG |
SF41-2900100DG |
SF41-3000100DG |
|
|
|
21V |
22V |
23V |
24V |
25V |
26V |
|
|
0.3A |
SF41-2100300DG |
SF41-2200300DG |
SF41-2300300DG |
SF41-2400300DG |
SF41-2500300DG |
SF41-2600300DG |
|
0.2A |
SF41-2100200DG |
SF41-2200200DG |
SF41-2300200DG |
SF41-2400200DG |
SF41-2500200DG |
SF41-2600200DG |
|
0.1A |
SF41-2100100DG |
SF41-2200100DG |
SF41-2300100DG |
SF41-2400100DG |
SF41-2500100DG |
SF41-2600100DG |
|
15V |
16V |
17V |
18V |
19V |
20V |
|
|
0.5A |
SF41-1500500DG |
|
|
|
|
|
|
0.4A |
SF41-1500400DG |
SF41-1600400DG |
SF41-1700400DG |
SF41-1800400DG |
SF41-1900400DG |
|
|
0.3A |
SF41-1500300DG |
SF41-1600300DG |
SF41-1700300DG |
SF41-1800300DG |
SF41-1900300DG |
SF41-2000300DG |
|
0.2A |
SF41-1500200DG |
SF41-1600200DG |
SF41-1700200DG |
SF41-1800200DG |
SF41-1900200DG |
SF41-2000200DG |
|
0.1A |
SF41-1500100DG |
SF41-1600100DG |
SF41-1700100DG |
SF41-1800100DG |
SF41-1900100DG |
SF41-2000100DG |
|
12V |
12.5V |
13V |
13.5V |
14V |
14.5V |
|
|
0.8A |
SF41-1200800DG |
|
|
|
|
|
|
0.7A |
SF41-1200700DG |
|
|
|
|
|
|
0.6A |
SF41-1200600DG |
|
|
|
|
|
|
0.5A |
SF41-1200500DG |
SF41-1250500DG |
SF41-1300500DG |
SF41-1350500DG |
SF41-1400500DG |
SF41-1450500DG |
|
0.4A |
SF41-1200400DG |
SF41-1250400DG |
SF41-1300400DG |
SF41-1350400DG |
SF41-1400400DG |
SF41-1450400DG |
|
0.3A |
SF41-1200300DG |
SF41-1250300DG |
SF41-1300300DG |
SF41-1350300DG |
SF41-1400300DG |
SF41-1450300DG |
|
0.2A |
SF41-1200200DG |
SF41-1250200DG |
SF41-1300200DG |
SF41-1350200DG |
SF41-1400200DG |
SF41-1450200DG |
|
0.1A |
|
SF41-1250100DG |
SF41-1300100DG |
SF41-1350100DG |
SF41-1400100DG |
SF41-1450100DG |
|
9V |
9.5V |
10V |
10.5V |
11V |
11.5V |
|
|
0.8A |
SF41-0950800DG |
|
|
|
|
|
|
0.7A |
SF41-0950700DG |
SF41-0950700DG |
SF41-1000700DG |
|
|
|
|
0.6A |
SF41-0950600DG |
SF41-0950600DG |
SF41-1000600DG |
SF41-1050600DG |
SF41-1100600DG |
SF41-1150600DG |
|
0.5A |
SF41-0950500DG |
SF41-0950500DG |
SF41-1000500DG |
SF41-1050500DG |
SF41-1100500DG |
SF41-1150500DG |
|
0.4A |
SF41-0950400DG |
SF41-0950400DG |
SF41-1000400DG |
SF41-1050400DG |
SF41-1100400DG |
SF41-1150400DG |
|
0.3A |
SF41-0950300DG |
SF41-0950300DG |
SF41-1000300DG |
SF41-1050300DG |
SF41-1100300DG |
SF41-1150300DG |
|
0.2A |
SF41-0900200DG |
SF41-0950200DG |
SF41-1000200DG |
SF41-1050200DG |
SF41-1100200DG |
SF41-1150200DG |
|
6V |
6.5V |
7V |
7.5V |
8V |
8.5V |
|
|
1.2A |
SF41-0601200DG |
|
|
|
|
|
|
1.1A |
SF41-0601100DG |
|
|
|
|
|
|
1.0A |
SF41-0601000DG |
SF41-0651000DG |
SF41-0701000DG |
SF41-0751000DG |
|
|
|
0.9A |
SF41-0600900DG |
SF41-0650900DG |
SF41-0700900DG |
SF41-0750900DG |
SF41-0800900DG |
|
|
0.8A |
SF41-0600800DG |
SF41-0650800DG |
SF41-0700800DG |
SF41-0750800DG |
SF41-0800800DG |
SF41-0850800DG |
|
0.7A |
SF41-0600700DG |
SF41-0650700DG |
SF41-0700700DG |
SF41-0750700DG |
SF41-0800700DG |
SF41-0850700DG |
|
0.6A |
SF41-0600600DG |
SF41-0650600DG |
SF41-0700600DG |
SF41-0750600DG |
SF41-0800600DG |
SF41-0850600DG |
|
0.5A |
SF41-0600500DG |
SF41-0650500DG |
SF41-0700500DG |
SF41-0750500DG |
SF41-0800500DG |
SF41-0850500DG |
|
0.4A |
SF41-0600400DG |
SF41-0650400DG |
SF41-0700400DG |
SF41-0750400DG |
SF41-0800400DG |
SF41-0850400DG |
|
0.3A |
|
|
|
SF41-0750300DG |
SF41-0800300DG |
SF41-0850300DG |
|
3V |
3.5V |
4V |
4.5V |
5V |
5.5V |
|
|
1.8A |
SF41-0301800DG |
|
|
|
|
|
|
1.7A |
SF41-0301700DG |
SF41-0351700DG |
|
|
|
|
|
1.6A |
SF41-0301600DG |
SF41-0351600DG |
SF41-0401600DG |
|
|
|
|
1.5A |
SF41-0301500DG |
SF41-0351500DG |
SF41-0401500DG |
SF41-0451500DG |
SF41-0501500DG |
|
|
1.4A |
SF41-0301400DG |
SF41-0351400DG |
SF41-0401400DG |
SF41-0451400DG |
SF41-0501400DG |
|
|
1.3A |
SF41-0301300DG |
SF41-0351300DG |
SF41-0401300DG |
SF41-0451300DG |
SF41-0501300DG |
|
|
1.2A |
SF41-0301200DG |
SF41-0351200DG |
SF41-0401200DG |
SF41-0451200DG |
SF41-0501200DG |
SF41-0551200DG |
|
1.1A |
SF41-0301100DG |
SF41-0351100DG |
SF41-0401100DG |
SF41-0451100DG |
SF41-0501100DG |
SF41-0551100DG |
|
1.0A |
SF41-0301000DG |
SF41-0351000DG |
SF41-0401000DG |
SF41-0451000DG |
SF41-0501000DG |
SF41-0551000DG |
|
0.9A |
SF41-0300900DG |
SF41-0350900DG |
SF41-0400900DG |
SF41-0450900DG |
SF41-0500900DG |
SF41-0550900DG |
|
0.8A |
SF41-0300800DG |
SF41-0350800DG |
SF41-0400800DG |
SF41-0450800DG |
SF41-0500800DG |
SF41-0550800DG |
|
0.7A |
SF41-0300700DG |
SF41-0350700DG |
SF41-0400700DG |
SF41-0450700DG |
SF41-0500700DG |
SF41-0550700DG |
|
0.6A |
SF41-0300600DG |
SF41-0350600DG |
SF41-0400600DG |
SF41-0450600DG |
SF41-0500600DG |
SF41-0550600DG |
|
0.5A |
|
SF41-0350500DG |
SF41-0400500DG |
SF41-0450500DG |
SF41-0500500DG |
SF41-0550500DG |
|
0.4A |
|
|
|
SF41-0450400DG |
SF41-0500400DG |
SF41-0550400DG |

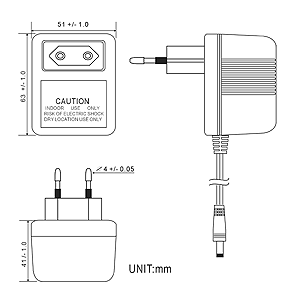

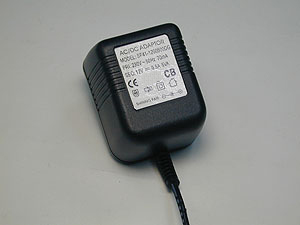

A-TYPE

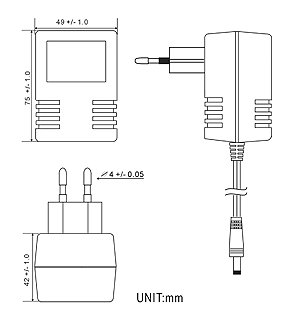

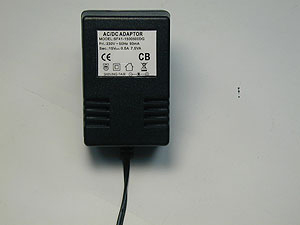

B-TYPE
 |
 |
 |
 |
 |
 |
