GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
3750V AC, one second |
GS/CB/CE |
EN 60950/EN 61558 |
|
Primary to Secondary |
3750V AC, one second |
||
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
230V AC |
Output Voltage |
1.4-25V DC |
|
Input Frequency |
50Hz |
Output Tolerance (Load) |
5% |
|
Output Current |
0.05-1.2A |
||
|
Output Watt |
6VA max |
||
LINEAR ADAPTOR
WALLMOUNT
EI 41 AC TO DC (REGULATED) ADAPTOR
INPUT:230V AC 50Hz
OUTPUT SPECIFICATION
|
1.4-3.5V |
4-6.5V |
7-9.5V |
10-12.5V |
13-15.5V |
16-21V |
22-25V |
|---|
|
22V |
23V |
24V |
25V |
|
|
|
|
0.25A |
SF41-2200250RG |
SF41-2300250RG |
SF41-2400250RG |
|
|
|
|
0.20A |
SF41-2200200RG |
SF41-2300200RG |
SF41-2400200RG |
SF41-2500200RG |
|
|
|
0.10A |
SF41-2200100RG |
SF41-2300100RG |
SF41-2400100RG |
SF41-2500100RG |
|
|
|
0.05A |
SF41-2200050RG |
SF41-2300050RG |
SF41-2400050RG |
SF41-2500050RG |
|
|
|
16V |
17V |
18V |
19V |
20V |
21V |
|
|
0.35A |
SF41-1600350RG |
SF41-1700350RG |
|
|
|
|
|
0.30A |
SF41-1600300RG |
SF41-1700300RG |
SF41-1800300RG |
SF41-1900300RG |
SF41-2000300RG |
|
|
0.25A |
SF41-1600250RG |
SF41-1700250RG |
SF41-1800250RG |
SF41-1900250RG |
SF41-2000250RG |
SF41-2100250RG |
|
0.20A |
SF41-1600200RG |
SF41-1700200RG |
SF41-1800200RG |
SF41-1900200RG |
SF41-2000200RG |
SF41-2100200RG |
|
0.10A |
SF41-1600100RG |
SF41-1700100RG |
SF41-1800100RG |
SF41-1900100RG |
SF41-2000100RG |
SF41-2100100RG |
|
0.05A |
SF41-1600050RG |
SF41-1700050RG |
SF41-1800050RG |
SF41-1900050RG |
SF41-2000050RG |
SF41-2100050RG |
|
13V |
13.5V |
14V |
14.5V |
15V |
15.5V |
|
|
0.45A |
SF41-1300450RG |
|
|
|
|
|
|
0.40A |
SF41-1300400RG |
SF41-1350400RG |
SF41-1400400RG |
SF41-1450400RG |
SF41-1500400RG |
|
|
0.35A |
SF41-1300350RG |
SF41-135050RG |
SF41-140050RG |
SF41-1450350RG |
SF41-1500350RG |
SF41-1550350RG |
|
0.30A |
SF41-1300300RG |
SF41-1350300RG |
SF41-1400300RG |
SF41-1450300RG |
SF41-1500300RG |
SF41-1550300RG |
|
0.20A |
SF41-1300200RG |
SF41-1350200RG |
SF41-1400200RG |
SF41-1450200RG |
SF41-1500200RG |
SF41-1550200RG |
|
0.10A |
SF41-1300100RG |
SF41-1350100RG |
SF41-1400100RG |
SF41-1450100RG |
SF41-1500100RG |
SF41-1550100RG |
|
0.05A |
SF41-1300050RG |
SF41-1350050RG |
SF41-1400050RG |
SF41-1450050RG |
SF41-1500050RG |
SF41-1550050RG |
|
10V |
10.5V |
11V |
11.5V |
12V |
12.5V |
|
|
0.60A |
SF41-1000600RG |
|
|
|
|
|
|
0.55A |
SF41-1000550RG |
SF41-1050550RG |
SF41-1100550RG |
SF41-1150550RG |
|
|
|
0.50A |
SF41-1000500RG |
SF41-1050500RG |
SF41-1100500RG |
SF41-1150500RG |
SF41-1200500RG |
|
|
0.45A |
SF41-1000450RG |
SF41-1050450RG |
SF41-1100450RG |
SF41-1150450RG |
SF41-1200450RG |
SF41-1250450RG |
|
0.40A |
SF41-1000400RG |
SF41-1050400RG |
SF41-1100400RG |
SF41-1150400RG |
SF41-1200400RG |
SF41-1250400RG |
|
0.30A |
SF41-1000300RG |
SF41-1050300RG |
SF41-1100300RG |
SF41-1150300RG |
SF41-1200300RG |
SF41-1250300RG |
|
0.20A |
SF41-1000200RG |
SF41-1050200RG |
SF41-1100200RG |
SF41-1150200RG |
SF41-1200200RG |
SF41-1250200RG |
|
0.10A |
SF41-1000100RG |
SF41-1050100RG |
SF41-1100100RG |
SF41-1150100RG |
SF41-1200100RG |
SF41-1250100RG |
|
0.05A |
SF41-1000050RG |
SF41-1050050RG |
SF41-1100050RG |
SF41-1150050RG |
SF41-1200050RG |
SF41-1250050RG |
|
7V |
7.5V |
8V |
8.5V |
9V |
9.5V |
|
|
0.80A |
SF41-0700800RG |
SF41-0750800RG |
|
|
|
|
|
0.70A |
SF41-0700700RG |
SF41-0750700RG |
SF41-0800700RG |
SF41-0850700RG |
|
|
|
0.65A |
SF41-0700650RG |
SF41-0750650RG |
SF41-0800650RG |
SF41-0850650RG |
SF41-0900650RG |
|
|
0.60A |
SF41-0700600RG |
SF41-0750600RG |
SF41-0800600RG |
SF41-0850600RG |
SF41-0900600RG |
SF41-0950600RG |
|
0.50A |
SF41-0700500RG |
SF41-0750500RG |
SF41-0800500RG |
SF41-0850500RG |
SF41-0900500RG |
SF41-0950500RG |
|
0.40A |
SF41-0700400RG |
SF41-0750400RG |
SF41-0800400RG |
SF41-0850400RG |
SF41-0900400RG |
SF41-0950400RG |
|
0.30A |
SF41-0700300RG |
SF41-0750300RG |
SF41-0800300RG |
SF41-0850300RG |
SF41-0900300RG |
SF41-0950300RG |
|
0.20A |
SF41-0700200RG |
SF41-0750200RG |
SF41-0800200RG |
SF41-0850200RG |
SF41-0900200RG |
SF41-0950200RG |
|
0.10A |
SF41-0700100RG |
SF41-0750100RG |
SF41-0800100RG |
SF41-0850100RG |
SF41-0900100RG |
SF41-0950100RG |
|
0.05A |
SF41-0700050RG |
SF41-0750050RG |
SF41-0800050RG |
SF41-0850050RG |
SF41-0900050RG |
SF41-0950050RG |
|
4V |
4.5V |
5V |
5.5V |
6V |
6.5V |
|
|
1.20A |
SF41-0401200RG |
SF41-0451200RG |
|
|
|
|
|
1.10A |
SF41-0401100RG |
SF41-0451100RG |
SF41-0501100RG |
|
|
|
|
1.00A |
SF41-0401000RG |
SF41-0451000RG |
SF41-0501000RG |
SF41-0551000RG |
SF41-0601000RG |
|
|
0.90A |
SF41-0400900RG |
SF41-0450900RG |
SF41-0500900RG |
SF41-0550900RG |
SF41-0600900RG |
SF41-0650900RG |
|
0.80A |
SF41-0400800RG |
SF41-0450800RG |
SF41-0500800RG |
SF41-0550800RG |
SF41-0600800RG |
SF41-0650800RG |
|
0.70A |
SF41-0400700RG |
SF41-0450700RG |
SF41-0500700RG |
SF41-0550700RG |
SF41-0600700RG |
SF41-0650700RG |
|
0.60A |
SF41-0400600RG |
SF41-0450600RG |
SF41-0500600RG |
SF41-0550600RG |
SF41-0600600RG |
SF41-0650600RG |
|
0.50A |
SF41-0400500RG |
SF41-0450500RG |
SF41-0500500RG |
SF41-0550500RG |
SF41-0600500RG |
SF41-0650500RG |
|
0.40A |
SF41-0400400RG |
SF41-0450400RG |
SF41-0500400RG |
SF41-0550400RG |
SF41-0600400RG |
SF41-0650400RG |
|
0.30A |
SF41-0400300RG |
SF41-0450300RG |
SF41-0500300RG |
SF41-0550300RG |
SF41-0600300RG |
SF41-0650300RG |
|
0.20A |
SF41-0400200RG |
SF41-0450200RG |
SF41-0500200RG |
SF41-0550200RG |
SF41-0600200RG |
SF41-0650200RG |
|
0.10A |
SF41-0400100RG |
SF41-0450100RG |
SF41-0500100RG |
SF41-0550100RG |
SF41-0600100RG |
SF41-0650100RG |
|
0.05A |
SF41-0400050RG |
SF41-0450050RG |
SF41-0500050RG |
SF41-0550050RG |
SF41-0600050RG |
SF41-0650050RG |
|
1.4V |
1.5V |
2V |
2.5V |
3V |
3.5V |
|
|
1.20A |
|
SF41-0151200RG |
SF41-0201200RG |
SF41-0251200RG |
SF41-0301200RG |
SF41-0351200RG |
|
1.10A |
|
SF41-0151100RG |
SF41-0201100RG |
SF41-0251100RG |
SF41-0301100RG |
SF41-0351100RG |
|
1.00A |
SF41-0141000RG |
SF41-0151000RG |
SF41-0201000RG |
SF41-0251000RG |
SF41-0301000RG |
SF41-0351000RG |
|
0.90A |
SF41-0140900RG |
SF41-0150900RG |
SF41-0200900RG |
SF41-0250900RG |
SF41-0300900RG |
SF41-0350900RG |
|
0.80A |
SF41-0140800RG |
SF41-0150800RG |
SF41-0200800RG |
SF41-0250800RG |
SF41-0300800RG |
SF41-0350800RG |
|
0.70A |
SF41-0140700RG |
SF41-0150700RG |
SF41-0200700RG |
SF41-0250700RG |
SF41-0300700RG |
SF41-0350700RG |
|
0.60A |
SF41-0140600RG |
SF41-0150600RG |
SF41-0200600RG |
SF41-0250600RG |
SF41-0300600RG |
SF41-0350600RG |
|
0.50A |
SF41-0140500RG |
SF41-0150500RG |
SF41-0200500RG |
SF41-0250500RG |
SF41-0300500RG |
SF41-0350500RG |
|
0.40A |
SF41-0140400RG |
SF41-0150400RG |
SF41-0200400RG |
SF41-0250400RG |
SF41-0300400RG |
SF41-0350400RG |
|
0.30A |
SF41-0140300RG |
SF41-0150300RG |
SF41-0200300RG |
SF41-0250300RG |
SF41-0300300RG |
SF41-0350300RG |
|
0.20A |
SF41-0140200RG |
SF41-0150200RG |
SF41-0200200RG |
SF41-0250200RG |
SF41-0300200RG |
SF41-0350200RG |
|
0.10A |
SF41-0140100RG |
SF41-0150100RG |
SF41-0200100RG |
SF41-0250100RG |
SF41-0300100RG |
SF41-0350100RG |
|
0.05A |
SF41-0140050RG |
SF41-0150050RG |
SF41-0200050RG |
SF41-0250050RG |
SF41-0300050RG |
SF41-0350050RG |

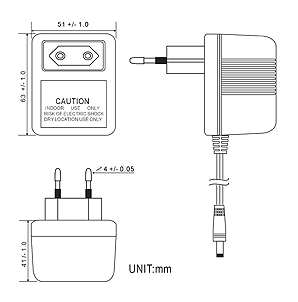

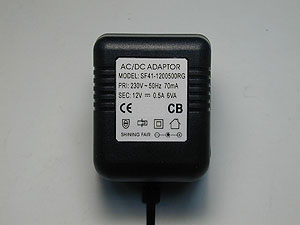

A-TYPE

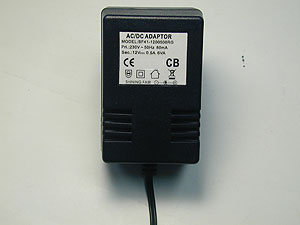

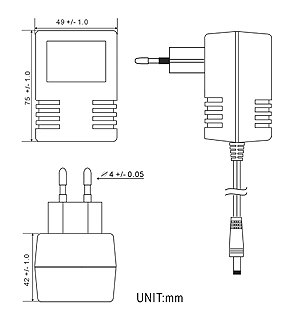

B-TYPE
 |
 |
 |
 |
 |
 |
