GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
3750V AC, one second |
CCC/CB |
IEC 60950 |
|
Primary to Secondary |
3750V AC, one second |
||
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
220V AC |
Output Voltage |
3-30V DC |
|
Input Frequency |
50Hz |
Output Tolerance (Load) |
5% |
|
Output Current |
0.1-1.8A |
||
|
Output Watt |
9.6VA max |
||
LINEAR ADAPTOR
WALLMOUNT

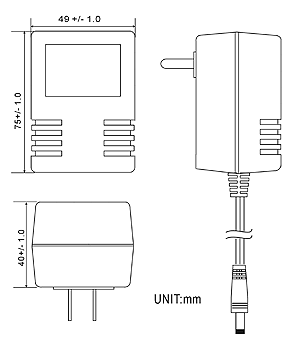

EI 41 AC TO DC ADAPTOR
INPUT:220V AC 50Hz
OUTPUT SPECIFICATION
|
27V |
28V |
29V |
30V |
|
|
|
|
0.3A |
SF41-2700300DC |
SF41-2800300DC |
SF41-2900300DC |
SF41-3000300DC |
|
|
|
0.2A |
SF41-2700200DC |
SF41-2800200DC |
SF41-2900200DC |
SF41-3000200DC |
|
|
|
0.1A |
SF41-2700100DC |
SF41-2800100DC |
SF41-2900100DC |
SF41-3000100DC |
|
|
|
21V |
22V |
23V |
24V |
25V |
26V |
|
|
0.3A |
SF41-2100300DC |
SF41-2200300DC |
SF41-2300300DC |
SF41-2400300DC |
SF41-2500300DC |
SF41-2600300DC |
|
0.2A |
SF41-2100200DC |
SF41-2200200DC |
SF41-2300200DC |
SF41-2400200DC |
SF41-2500200DC |
SF41-2600200DC |
|
0.1A |
SF41-2100100DC |
SF41-2200100DC |
SF41-2300100DC |
SF41-2400100DC |
SF41-2500100DC |
SF41-2600100DC |
|
15V |
16V |
17V |
18V |
19V |
20V |
|
|
0.5A |
SF41-1500500DC |
|
|
|
|
|
|
0.4A |
SF41-1500400DC |
SF41-1600400DC |
SF41-1700400DC |
SF41-1800400DC |
SF41-1900400DC |
|
|
0.3A |
SF41-1500300DC |
SF41-1600300DC |
SF41-1700300DC |
SF41-1800300DC |
SF41-1900300DC |
SF41-2000300DC |
|
0.2A |
SF41-1500200DC |
SF41-1600200DC |
SF41-1700200DC |
SF41-1800200DC |
SF41-1900200DC |
SF41-2000200DC |
|
0.1A |
SF41-1500100DC |
SF41-1600100DC |
SF41-1700100DC |
SF41-1800100DC |
SF41-1900100DC |
SF41-2000100DC |
|
12V |
12.5V |
13V |
13.5V |
14V |
14.5V |
|
|
0.8A |
SF41-1200800DC |
|
|
|
|
|
|
0.7A |
SF41-1200700DC |
|
|
|
|
|
|
0.6A |
SF41-1200600DC |
|
|
|
|
|
|
0.5A |
SF41-1200500DC |
SF41-1250500DC |
SF41-1300500DC |
SF41-1350500DC |
SF41-1400500DC |
SF41-1450500DC |
|
0.4A |
SF41-1200400DC |
SF41-1250400DC |
SF41-1300400DC |
SF41-1350400DC |
SF41-1400400DC |
SF41-1450400DC |
|
0.3A |
SF41-1200300DC |
SF41-1250300DC |
SF41-1300300DC |
SF41-1350300DC |
SF41-1400300DC |
SF41-1450300DC |
|
0.2A |
SF41-1200200DC |
SF41-1250200DC |
SF41-1300200DC |
SF41-1350200DC |
SF41-1400200DC |
SF41-1450200DC |
|
0.1A |
|
SF41-1250100DC |
SF41-1300100DC |
SF41-1350100DC |
SF41-1400100DC |
SF41-1450100DC |
|
9V |
9.5V |
10V |
10.5V |
11V |
11.5V |
|
|
0.8A |
SF41-0950800DC |
|
|
|
|
|
|
0.7A |
SF41-0950700DC |
SF41-0950700DC |
SF41-1000700DC |
|
|
|
|
0.6A |
SF41-0950600DC |
SF41-0950600DC |
SF41-1000600DC |
SF41-1050600DC |
SF41-1100600DC |
SF41-1150600DC |
|
0.5A |
SF41-0950500DC |
SF41-0950500DC |
SF41-1000500DC |
SF41-1050500DC |
SF41-1100500DC |
SF41-1150500DC |
|
0.4A |
SF41-0950400DC |
SF41-0950400DC |
SF41-1000400DC |
SF41-1050400DC |
SF41-1100400DC |
SF41-1150400DC |
|
0.3A |
SF41-0950300DC |
SF41-0950300DC |
SF41-1000300DC |
SF41-1050300DC |
SF41-1100300DC |
SF41-1150300DC |
|
0.2A |
SF41-0900200DC |
SF41-0950200DC |
SF41-1000200DC |
SF41-1050200DC |
SF41-1100200DC |
SF41-1150200DC |
|
6V |
6.5V |
7V |
7.5V |
8V |
8.5V |
|
|
1.2A |
SF41-0601200DC |
|
|
|
|
|
|
1.1A |
SF41-0601100DC |
|
|
|
|
|
|
1.0A |
SF41-0601000DC |
SF41-0651000DC |
SF41-0701000DC |
SF41-0751000DC |
|
|
|
0.9A |
SF41-0600900DC |
SF41-0650900DC |
SF41-0700900DC |
SF41-0750900DC |
SF41-0800900DC |
|
|
0.8A |
SF41-0600800DC |
SF41-0650800DC |
SF41-0700800DC |
SF41-0750800DC |
SF41-0800800DC |
SF41-0850800DC |
|
0.7A |
SF41-0600700DC |
SF41-0650700DC |
SF41-0700700DC |
SF41-0750700DC |
SF41-0800700DC |
SF41-0850700DC |
|
0.6A |
SF41-0600600DC |
SF41-0650600DC |
SF41-0700600DC |
SF41-0750600DC |
SF41-0800600DC |
SF41-0850600DC |
|
0.5A |
SF41-0600500DC |
SF41-0650500DC |
SF41-0700500DC |
SF41-0750500DC |
SF41-0800500DC |
SF41-0850500DC |
|
0.4A |
SF41-0600400DC |
SF41-0650400DC |
SF41-0700400DC |
SF41-0750400DC |
SF41-0800400DC |
SF41-0850400DC |
|
0.3A |
|
|
|
SF41-0750300DC |
SF41-0800300DC |
SF41-0850300DC |
|
3V |
3.5V |
4V |
4.5V |
5V |
5.5V |
|
|
1.8A |
SF41-0301800DC |
|
|
|
|
|
|
1.7A |
SF41-0301700DC |
SF41-0351700DC |
|
|
|
|
|
1.6A |
SF41-0301600DC |
SF41-0351600DC |
SF41-0401600DC |
|
|
|
|
1.5A |
SF41-0301500DC |
SF41-0351500DC |
SF41-0401500DC |
SF41-0451500DC |
SF41-0501500DC |
|
|
1.4A |
SF41-0301400DC |
SF41-0351400DC |
SF41-0401400DC |
SF41-0451400DC |
SF41-0501400DC |
|
|
1.3A |
SF41-0301300DC |
SF41-0351300DC |
SF41-0401300DC |
SF41-0451300DC |
SF41-0501300DC |
|
|
1.2A |
SF41-0301200DC |
SF41-0351200DC |
SF41-0401200DC |
SF41-0451200DC |
SF41-0501200DC |
SF41-0551200DC |
|
1.1A |
SF41-0301100DC |
SF41-0351100DC |
SF41-0401100DC |
SF41-0451100DC |
SF41-0501100DC |
SF41-0551100DC |
|
1.0A |
SF41-0301000DC |
SF41-0351000DC |
SF41-0401000DC |
SF41-0451000DC |
SF41-0501000DC |
SF41-0551000DC |
|
0.9A |
SF41-0300900DC |
SF41-0350900DC |
SF41-0400900DC |
SF41-0450900DC |
SF41-0500900DC |
SF41-0550900DC |
|
0.8A |
SF41-0300800DC |
SF41-0350800DC |
SF41-0400800DC |
SF41-0450800DC |
SF41-0500800DC |
SF41-0550800DC |
|
0.7A |
SF41-0300700DC |
SF41-0350700DC |
SF41-0400700DC |
SF41-0450700DC |
SF41-0500700DC |
SF41-0550700DC |
|
0.6A |
SF41-0300600DC |
SF41-0350600DC |
SF41-0400600DC |
SF41-0450600DC |
SF41-0500600DC |
SF41-0550600DC |
|
0.5A |
|
SF41-0350500DC |
SF41-0400500DC |
SF41-0450500DC |
SF41-0500500DC |
SF41-0550500DC |
|
0.4A |
|
|
|
SF41-0450400DC |
SF41-0500400DC |
SF41-0550400DC |
|
3-5.5V |
6-8.5V |
9-11.5V |
12-14.5V |
15-20V |
21-26V |
27-30V |
|---|
 |
 |
 |
 |
 |
 |
