GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
3750V AC, one second |
CCC/CB |
IEC 60950 |
|
Primary to Secondary |
3750V AC, one second |
||
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
220V AC |
Output Voltage |
1.4-12V DC |
|
Input Frequency |
50Hz |
Output Tolerance (Load) |
5% |
|
Output Current |
0.05-1.2A |
||
|
Output Watt |
6VA max |
||
LINEAR ADAPTOR

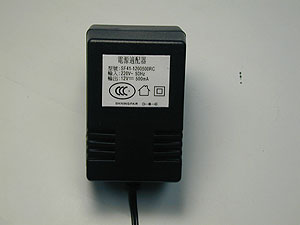

EI 41 AC TO DC (REGULATED) ADAPTOR
INPUT:220V AC 50Hz
OUTPUT SPECIFICATION
|
1.4-7.5V |
9-12V |
|---|
|
9V |
12V |
|
|
|
|
|
|
0.65A |
SF41-0900650RC |
|
|
|
|
|
|
0.60A |
SF41-0900600RC |
|
|
|
|
|
|
0.50A |
SF41-0900500RC |
SF41-1200500RC |
|
|
|
|
|
0.40A |
SF41-0900400RC |
SF41-1200400RC |
|
|
|
|
|
0.30A |
SF41-0900300RC |
SF41-1200300RC |
|
|
|
|
|
0.20A |
SF41-0900200RC |
SF41-1200200RC |
|
|
|
|
|
1.4V |
3V |
4.5V |
5V |
6V |
7.5V |
|
|
1.20A |
|
SF41-0301200RC |
SF41-0451200RC |
|
|
|
|
1.10A |
|
SF41-0301100RC |
SF41-0451100RC |
|
|
|
|
1.00A |
SF41-0141000RC |
SF41-0301000RC |
SF41-0451000RC |
SF41-0501000RC |
SF41-0601000RC |
|
|
0.90A |
SF41-0140900RC |
SF41-0300900RC |
SF41-0450900RC |
SF41-0500900RC |
SF41-0600900RC |
|
|
0.80A |
SF41-0140800RC |
SF41-0300800RC |
SF41-0450800RC |
SF41-0500800RC |
SF41-0600800RC |
SF41-0750800RC |
|
0.70A |
SF41-0140700RC |
SF41-0300700RC |
SF41-0450700RC |
SF41-0500700RC |
SF41-0600700RC |
SF41-0750700RC |
|
0.60A |
SF41-0140600RC |
SF41-0300600RC |
SF41-0450600RC |
SF41-0500600RC |
SF41-0600600RC |
SF41-0750600RC |
|
0.50A |
SF41-0140500RC |
SF41-0300500RC |
SF41-0450500RC |
SF41-0500500RC |
SF41-0600500RC |
SF41-0750500RC |
|
0.40A |
SF41-0140400RC |
SF41-0300400RC |
SF41-0450400RC |
SF41-0500400RC |
SF41-0600400RC |
SF41-0750400RC |
|
0.30A |
SF41-0140300RC |
SF41-0300300RC |
SF41-0450300RC |
SF41-0500300RC |
SF41-0600300RC |
SF41-0750300RC |
|
0.20A |
SF41-0140200RC |
SF41-0300200RC |
SF41-0450200RC |
SF41-0500200RC |
SF41-0600200RC |
SF41-0750200RC |
|
0.10A |
|
|
|
SF41-0500100RC |
SF41-0600100RC |
|
|
0.05A |
|
|
|
SF41-0500050RC |
SF41-0600050RC |
|
 |
 |
 |
 |
 |
 |
