GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
3750V AC, one second |
CB |
IEC 60950 |
|
Primary to Secondary |
3750V AC, one second |
||
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
220V AC |
Output Voltage |
6-20V AC |
|
Input Frequency |
50Hz |
Output Tolerance (Load) |
5% |
|
Output Current |
0.1-1.2A |
||
|
Output Watt |
12VA max |
||
LINEAR ADAPTOR
WALLMOUNT

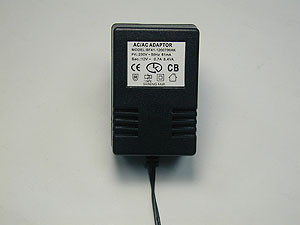

EI 41 AC TO AC ADAPTOR
INPUT:220V AC 50Hz
OUTPUT SPECIFICATION
|
15V |
16V |
18.5V |
19V |
20V |
|
|
|
0.7A |
SF41-1500700AK |
|
|
|
|
|
|
0.6A |
SF41-1500600AK |
SF41-1600600AK |
SF41-1850600AK |
SF41-1900600AK |
SF41-2000600AK |
|
|
0.5A |
SF41-1500500AK |
SF41-1600500AK |
SF41-1850500AK |
SF41-1900500AK |
SF41-2000500AK |
|
|
0.4A |
SF41-1500400AK |
SF41-1600400AK |
SF41-1850400AK |
SF41-1900400AK |
SF41-2000400AK |
|
|
0.3A |
|
SF41-1600300AK |
SF41-1850300AK |
SF41-1900300AK |
SF41-2000300AK |
|
|
0.2A |
|
SF41-1600200AK |
SF41-1850200AK |
SF41-1900200AK |
SF41-2000200AK |
|
|
0.1A |
|
SF41-1600100AK |
SF41-1850100AK |
SF41-1900100AK |
SF41-2000100AK |
|
|
6V |
7.5V |
9V |
12V |
13V |
13.5V |
|
|
1.2A |
|
|
SF41-0901200AK |
|
|
|
|
1.1A |
|
SF41-0751100AK |
SF41-0901100AK |
|
|
|
|
1.0A |
SF41-0601000AK |
SF41-0751000AK |
SF41-0901000AK |
SF41-1201000AK |
|
|
|
0.9A |
|
SF41-0750900AK |
SF41-0900900AK |
SF41-1200900AK |
SF41-1300900AK |
|
|
0.8A |
|
|
SF41-0900800AK |
SF41-1200800AK |
SF41-1300800AK |
|
|
0.7A |
|
|
SF41-0900700AK |
SF41-1200700AK |
SF41-1300700AK |
|
|
0.6A |
|
|
SF41-0900600AK |
SF41-1200600AK |
SF41-1300600AK |
|
|
0.5A |
|
|
SF41-0900500AK |
SF41-1200500AK |
SF41-1300500AK |
SF41-1350500AK |
|
0.4A |
|
|
SF41-0900400AK |
SF41-1200400AK |
SF41-1300400AK |
|
|
0.3A |
|
|
SF41-0900300AK |
SF41-1200300AK |
SF41-1300300AK |
|
|
0.2A |
|
|
|
SF41-1200200AK |
SF41-1300200AK |
|
|
6-13.5V |
15-20V |
|---|
 |
 |
 |
 |
 |
 |
