GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
3750V AC, one second |
CB |
IEC 60950 |
|
Primary to Secondary |
3750V AC, one second |
||
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
220V AC |
Output Voltage |
3-30V DC |
|
Input Frequency |
50Hz |
Output Tolerance (Load) |
5% |
|
Output Current |
0.1-1.8A |
||
|
Output Watt |
9.6VA max |
||
LINEAR ADAPTOR
WALLMOUNT

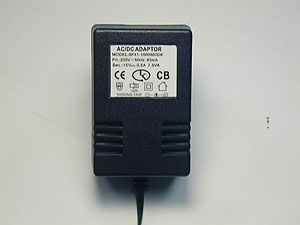

EI 41 AC TO DC ADAPTOR
INPUT:220V AC 50Hz
OUTPUT SPECIFICATION
|
27V |
28V |
29V |
30V |
|
|
|
|
0.3A |
SF41-2700300DK |
SF41-2800300DK |
SF41-2900300DK |
SF41-3000300DK |
|
|
|
0.2A |
SF41-2700200DK |
SF41-2800200DK |
SF41-2900200DK |
SF41-3000200DK |
|
|
|
0.1A |
SF41-2700100DK |
SF41-2800100DK |
SF41-2900100DK |
SF41-3000100DK |
|
|
|
21V |
22V |
23V |
24V |
25V |
26V |
|
|
0.3A |
SF41-2100300DK |
SF41-2200300DK |
SF41-2300300DK |
SF41-2400300DK |
SF41-2500300DK |
SF41-2600300DK |
|
0.2A |
SF41-2100200DK |
SF41-2200200DK |
SF41-2300200DK |
SF41-2400200DK |
SF41-2500200DK |
SF41-2600200DK |
|
0.1A |
SF41-2100100DK |
SF41-2200100DK |
SF41-2300100DK |
SF41-2400100DK |
SF41-2500100DK |
SF41-2600100DK |
|
15V |
16V |
17V |
18V |
19V |
20V |
|
|
0.5A |
SF41-1500500DK |
|
|
|
|
|
|
0.4A |
SF41-1500400DK |
SF41-1600400DK |
SF41-1700400DK |
SF41-1800400DK |
SF41-1900400DK |
|
|
0.3A |
SF41-1500300DK |
SF41-1600300DK |
SF41-1700300DK |
SF41-1800300DK |
SF41-1900300DK |
SF41-2000300DK |
|
0.2A |
SF41-1500200DK |
SF41-1600200DK |
SF41-1700200DK |
SF41-1800200DK |
SF41-1900200DK |
SF41-2000200DK |
|
0.1A |
SF41-1500100DK |
SF41-1600100DK |
SF41-1700100DK |
SF41-1800100DK |
SF41-1900100DK |
SF41-2000100DK |
|
12V |
12.5V |
13V |
13.5V |
14V |
14.5V |
|
|
0.8A |
SF41-1200800DK |
|
|
|
|
|
|
0.7A |
SF41-1200700DK |
|
|
|
|
|
|
0.6A |
SF41-1200600DK |
|
|
|
|
|
|
0.5A |
SF41-1200500DK |
SF41-1250500DK |
SF41-1300500DK |
SF41-1350500DK |
SF41-1400500DK |
SF41-1450500DK |
|
0.4A |
SF41-1200400DK |
SF41-1250400DK |
SF41-1300400DK |
SF41-1350400DK |
SF41-1400400DK |
SF41-1450400DK |
|
0.3A |
SF41-1200300DK |
SF41-1250300DK |
SF41-1300300DK |
SF41-1350300DK |
SF41-1400300DK |
SF41-1450300DK |
|
0.2A |
SF41-1200200DK |
SF41-1250200DK |
SF41-1300200DK |
SF41-1350200DK |
SF41-1400200DK |
SF41-1450200DK |
|
0.1A |
|
SF41-1250100DK |
SF41-1300100DK |
SF41-1350100DK |
SF41-1400100DK |
SF41-1450100DK |
|
9V |
9.5V |
10V |
10.5V |
11V |
11.5V |
|
|
0.8A |
SF41-0950800DK |
|
|
|
|
|
|
0.7A |
SF41-0950700DK |
SF41-0950700DK |
SF41-1000700DK |
|
|
|
|
0.6A |
SF41-0950600DK |
SF41-0950600DK |
SF41-1000600DK |
SF41-1050600DK |
SF41-1100600DK |
SF41-1150600DK |
|
0.5A |
SF41-0950500DK |
SF41-0950500DK |
SF41-1000500DK |
SF41-1050500DK |
SF41-1100500DK |
SF41-1150500DK |
|
0.4A |
SF41-0950400DK |
SF41-0950400DK |
SF41-1000400DK |
SF41-1050400DK |
SF41-1100400DK |
SF41-1150400DK |
|
0.3A |
SF41-0950300DK |
SF41-0950300DK |
SF41-1000300DK |
SF41-1050300DK |
SF41-1100300DK |
SF41-1150300DK |
|
0.2A |
SF41-0900200DK |
SF41-0950200DK |
SF41-1000200DK |
SF41-1050200DK |
SF41-1100200DK |
SF41-1150200DK |
|
6V |
6.5V |
7V |
7.5V |
8V |
8.5V |
|
|
1.2A |
SF41-0601200DK |
|
|
|
|
|
|
1.1A |
SF41-0601100DK |
|
|
|
|
|
|
1.0A |
SF41-0601000DK |
SF41-0651000DK |
SF41-0701000DK |
SF41-0751000DK |
|
|
|
0.9A |
SF41-0600900DK |
SF41-0650900DK |
SF41-0700900DK |
SF41-0750900DK |
SF41-0800900DK |
|
|
0.8A |
SF41-0600800DK |
SF41-0650800DK |
SF41-0700800DK |
SF41-0750800DK |
SF41-0800800DK |
SF41-0850800DK |
|
0.7A |
SF41-0600700DK |
SF41-0650700DK |
SF41-0700700DK |
SF41-0750700DK |
SF41-0800700DK |
SF41-0850700DK |
|
0.6A |
SF41-0600600DK |
SF41-0650600DK |
SF41-0700600DK |
SF41-0750600DK |
SF41-0800600DK |
SF41-0850600DK |
|
0.5A |
SF41-0600500DK |
SF41-0650500DK |
SF41-0700500DK |
SF41-0750500DK |
SF41-0800500DK |
SF41-0850500DK |
|
0.4A |
SF41-0600400DK |
SF41-0650400DK |
SF41-0700400DK |
SF41-0750400DK |
SF41-0800400DK |
SF41-0850400DK |
|
0.3A |
|
|
|
SF41-0750300DK |
SF41-0800300DK |
SF41-0850300DK |
|
3-5.5V |
6-8.5V |
9-11.5V |
12-14.5V |
15-20V |
21-26V |
27-30V |
|---|
|
3V |
3.5V |
4V |
4.5V |
5V |
5.5V |
|
|
1.8A |
SF41-0301800DK |
|
|
|
|
|
|
1.7A |
SF41-0301700DK |
SF41-0351700DK |
|
|
|
|
|
1.6A |
SF41-0301600DK |
SF41-0351600DK |
SF41-0401600DK |
|
|
|
|
1.5A |
SF41-0301500DK |
SF41-0351500DK |
SF41-0401500DK |
SF41-0451500DK |
SF41-0501500DK |
|
|
1.4A |
SF41-0301400DK |
SF41-0351400DK |
SF41-0401400DK |
SF41-0451400DK |
SF41-0501400DK |
|
|
1.3A |
SF41-0301300DK |
SF41-0351300DK |
SF41-0401300DK |
SF41-0451300DK |
SF41-0501300DK |
|
|
1.2A |
SF41-0301200DK |
SF41-0351200DK |
SF41-0401200DK |
SF41-0451200DK |
SF41-0501200DK |
SF41-0551200DK |
|
1.1A |
SF41-0301100DK |
SF41-0351100DK |
SF41-0401100DK |
SF41-0451100DK |
SF41-0501100DK |
SF41-0551100DK |
|
1.0A |
SF41-0301000DK |
SF41-0351000DK |
SF41-0401000DK |
SF41-0451000DK |
SF41-0501000DK |
SF41-0551000DK |
|
0.9A |
SF41-0300900DK |
SF41-0350900DK |
SF41-0400900DK |
SF41-0450900DK |
SF41-0500900DK |
SF41-0550900DK |
|
0.8A |
SF41-0300800DK |
SF41-0350800DK |
SF41-0400800DK |
SF41-0450800DK |
SF41-0500800DK |
SF41-0550800DK |
|
0.7A |
SF41-0300700DK |
SF41-0350700DK |
SF41-0400700DK |
SF41-0450700DK |
SF41-0500700DK |
SF41-0550700DK |
|
0.6A |
SF41-0300600DK |
SF41-0350600DK |
SF41-0400600DK |
SF41-0450600DK |
SF41-0500600DK |
SF41-0550600DK |
|
0.5A |
|
SF41-0350500DK |
SF41-0400500DK |
SF41-0450500DK |
SF41-0500500DK |
SF41-0550500DK |
|
0.4A |
|
|
|
SF41-0450400DK |
SF41-0500400DK |
SF41-0550400DK |
 |
 |
 |
 |
 |
 |
