GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
1800V AC, one second |
PSE |
J 60950 |
|
Primary to Secondary |
1800V AC, one second |
||
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
100V AC |
Output Voltage |
1-30V DC |
|
Input Frequency |
50/60Hz |
Output Tolerance (Load) |
5% |
|
Output Current |
0.1-2.5A |
||
|
Output Watt |
9.6VA max |
||

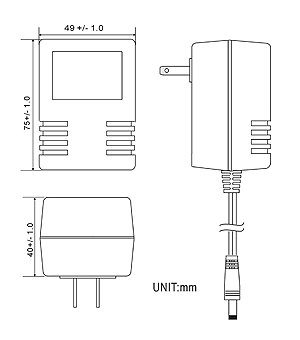

LINEAR ADAPTOR
WALLMOUNT

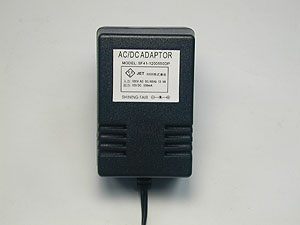

EI 41 AC TO DC ADAPTOR
INPUT:100V AC 50/60 Hz
OUTPUT SPECIFICATION
|
1-3.5V |
4-6.5V |
7-9.5V |
10-12.5V |
13-16V |
17-22V |
23-28V |
29-30V |
|---|
|
29V |
30V |
|
|
|
|
|
|
0.3A |
SF41-2900300DP |
SF41-3000300DP |
|
|
|
|
|
0.2A |
SF41-2900200DP |
SF41-3000200DP |
|
|
|
|
|
0.1A |
SF41-2900100DP |
SF41-3000100DP |
|
|
|
|
|
23V |
24V |
25V |
26V |
27V |
28V |
|
|
0.3A |
SF41-2300300DP |
SF41-2400300DP |
SF41-2500300DP |
SF41-2600300DP |
SF41-2700300DP |
SF41-2800300DP |
|
0.2A |
SF41-2300200DP |
SF41-2400200DP |
SF41-2500200DP |
SF41-2600200DP |
SF41-2700200DP |
SF41-2800200DP |
|
0.1A |
SF41-2300100DP |
SF41-2400100DP |
SF41-2500100DP |
SF41-2600100DP |
SF41-2700100DP |
SF41-2800100DP |
|
17V |
18V |
19V |
20V |
21V |
22V |
|
|
0.4A |
SF41-1700400DP |
SF41-1800400DP |
SF41-1900400DP |
|
|
|
|
0.3A |
SF41-1700300DP |
SF41-1800300DP |
SF41-1900300DP |
SF41-2000300DP |
SF41-2100300DP |
SF41-2200300DP |
|
0.2A |
SF41-1700200DP |
SF41-1800200DP |
SF41-1900200DP |
SF41-2000200DP |
SF41-2100200DP |
SF41-2200200DP |
|
0.1A |
SF41-1700100DP |
SF41-1800100DP |
SF41-1900100DP |
SF41-2000100DP |
SF41-2100100DP |
SF41-2200100DP |
|
13V |
13.5V |
14V |
14.5V |
15V |
16V |
|
|
0.5A |
SF41-1300500DP |
SF41-1350500DP |
SF41-1400500DP |
SF41-1450500DP |
SF41-1500500DP |
|
|
0.4A |
SF41-1300400DP |
SF41-1350400DP |
SF41-1400400DP |
SF41-1450400DP |
SF41-1500400DP |
SF41-1600400DP |
|
0.3A |
SF41-1300300DP |
SF41-1350300DP |
SF41-1400300DP |
SF41-1450300DP |
SF41-1500300DP |
SF41-1600300DP |
|
0.2A |
SF41-1300200DP |
SF41-1350200DP |
SF41-1400200DP |
SF41-1450200DP |
SF41-1500200DP |
SF41-1600200DP |
|
0.1A |
SF41-1300100DP |
SF41-1350100DP |
SF41-1400100DP |
SF41-1450100DP |
SF41-1500100DP |
SF41-1600100DP |
|
10V |
10.5V |
11V |
11.5V |
12V |
12.5V |
|
|
0.8A |
|
|
|
|
SF41-1200800DP |
|
|
0.7A |
SF41-1000700DP |
|
|
|
SF41-1200700DP |
|
|
0.6A |
SF41-1000600DP |
SF41-1050600DP |
SF41-1100600DP |
SF41-1150600DP |
SF41-1200600DP |
|
|
0.5A |
SF41-1000500DP |
SF41-1050500DP |
SF41-1100500DP |
SF41-1150500DP |
SF41-1200500DP |
SF41-1250500DP |
|
0.4A |
SF41-1000400DP |
SF41-1050400DP |
SF41-1100400DP |
SF41-1150400DP |
SF41-1200400DP |
SF41-1250400DP |
|
0.3A |
SF41-1000300DP |
SF41-1050300DP |
SF41-1100300DP |
SF41-1150300DP |
SF41-1200300DP |
SF41-1250300DP |
|
0.2A |
SF41-1000200DP |
SF41-1050200DP |
SF41-1100200DP |
SF41-1150200DP |
SF41-1200200DP |
SF41-1250200DP |
|
0.1A |
|
|
|
|
|
SF41-1250100DP |
|
7V |
7.5V |
8V |
8.5V |
9V |
9.5V |
|
|
1.0A |
SF41-0701000DP |
SF41-0751000DP |
|
|
|
|
|
0.9A |
SF41-0700900DP |
SF41-0750900DP |
SF41-0800900DP |
|
|
|
|
0.8A |
SF41-0700800DP |
SF41-0750800DP |
SF41-0800800DP |
SF41-0850800DP |
SF41-0900800DP |
|
|
0.7A |
SF41-0700700DP |
SF41-0750700DP |
SF41-0800700DP |
SF41-0850700DP |
SF41-0900700DP |
SF41-0950700DP |
|
0.6A |
SF41-0700600DP |
SF41-0750600DP |
SF41-0800600DP |
SF41-0850600DP |
SF41-0900600DP |
SF41-0950600DP |
|
0.5A |
SF41-0700500DP |
SF41-0750500DP |
SF41-0800500DP |
SF41-0850500DP |
SF41-0900500DP |
SF41-0950500DP |
|
0.4A |
SF41-0700400DP |
SF41-0750400DP |
SF41-0800400DP |
SF41-0850400DP |
SF41-0900400DP |
SF41-0950400DP |
|
0.3A |
|
SF41-0750300DP |
SF41-0800300DP |
SF41-0850300DP |
SF41-0900300DP |
SF41-0950300DP |
|
0.2A |
|
|
|
|
SF41-0900200DP |
SF41-0950200DP |
|
4V |
4.5V |
5V |
5.5V |
6V |
6.5V |
|
|
1.6A |
SF41-0401600DP |
|
|
|
|
|
|
1.5A |
SF41-0401500DP |
SF41-0451500DP |
SF41-0501500DP |
|
|
|
|
1.4A |
SF41-0401400DP |
SF41-0451400DP |
SF41-0501400DP |
|
|
|
|
1.3A |
SF41-0401300DP |
SF41-0451300DP |
SF41-0501300DP |
|
|
|
|
1.2A |
SF41-0401200DP |
SF41-0451200DP |
SF41-0501200DP |
SF41-0551200DP |
SF41-0601200DP |
|
|
1.1A |
SF41-0401100DP |
SF41-0451100DP |
SF41-0501100DP |
SF41-0551100DP |
SF41-0601100DP |
|
|
1.0A |
SF41-0401000DP |
SF41-0451000DP |
SF41-0501000DP |
SF41-0551000DP |
SF41-0601000DP |
SF41-0651000DP |
|
0.9A |
SF41-0400900DP |
SF41-0450900DP |
SF41-0500900DP |
SF41-0550900DP |
SF41-0600900DP |
SF41-0650900DP |
|
0.8A |
SF41-0400800DP |
SF41-0450800DP |
SF41-0500800DP |
SF41-0550800DP |
SF41-0600800DP |
SF41-0650800DP |
|
0.7A |
SF41-0400700DP |
SF41-0450700DP |
SF41-0500700DP |
SF41-0550700DP |
SF41-0600700DP |
SF41-0650700DP |
|
0.6A |
SF41-0400600DP |
SF41-0450600DP |
SF41-0500600DP |
SF41-0550600DP |
SF41-0600600DP |
SF41-0650600DP |
|
0.5A |
SF41-0400500DP |
SF41-0450500DP |
SF41-0500500DG |
SF41-0550500DP |
SF41-0600500DP |
SF41-0650500DP |
|
0.4A |
|
SF41-0450400DP |
SF41-0500400DG |
SF41-0550400DP |
SF41-0600400DP |
SF41-0650400DP |
|
1V |
1.5V |
2V |
2.5V |
3V |
3.5V |
|
|
2.5A |
SF41-0102500DP |
SF41-0152500DP |
|
|
|
|
|
2.4A |
SF41-0102400DP |
SF41-0152400DP |
SF41-0202400DP |
|
|
|
|
2.3A |
SF41-0102300DP |
SF41-0152300DP |
SF41-0202300DP |
SF41-0252300DP |
|
|
|
2.2A |
SF41-0102200DP |
SF41-0152200DP |
SF41-0202200DP |
SF41-0252200DP |
|
|
|
2.1A |
SF41-0102100DP |
SF41-0152100DP |
SF41-0202100DP |
SF41-0252100DP |
|
|
|
2.0A |
SF41-0102000DP |
SF41-0152000DP |
SF41-0202000DP |
SF41-0252000DP |
|
|
|
1.9A |
SF41-0101900DP |
SF41-0151900DP |
SF41-0201900DP |
SF41-0251900DP |
|
|
|
1.8A |
SF41-0101800DP |
SF41-0151800DP |
SF41-0201800DP |
SF41-0251800DP |
SF41-0301800DP |
|
|
1.7A |
SF41-0101700DP |
SF41-0151700DP |
SF41-0201700DP |
SF41-0251700DP |
SF41-0301700DP |
SF41-0351700DP |
|
1.6A |
SF41-0101600DP |
SF41-0151600DP |
SF41-0201600DP |
SF41-0251600DP |
SF41-0301600DP |
SF41-0351600DP |
|
1.5A |
SF41-0101500DP |
SF41-0151500DP |
SF41-0201500DP |
SF41-0251500DP |
SF41-0301500DP |
SF41-0351500DP |
|
1.4A |
SF41-0101400DP |
SF41-0151400DP |
SF41-0201400DP |
SF41-0251400DP |
SF41-0301400DP |
SF41-0351400DP |
|
1.3A |
SF41-0101300DP |
SF41-0151300DP |
SF41-0201300DP |
SF41-0251300DP |
SF41-0301300DP |
SF41-0351300DP |
|
1.2A |
SF41-0101200DP |
SF41-0151200DP |
SF41-0201200DP |
SF41-0251200DP |
SF41-0301200DP |
SF41-0351200DP |
|
1.1A |
SF41-0101100DP |
SF41-0151100DP |
SF41-0201100DP |
SF41-0251100DP |
SF41-0301100DP |
SF41-0351100DP |
|
1.0A |
SF41-0101000DP |
SF41-0151000DP |
SF41-0201000DP |
SF41-0251000DP |
SF41-0301000DP |
SF41-0351000DP |
|
0.9A |
SF41-0100900DP |
SF41-0150900DP |
SF41-0200900DP |
SF41-0250900DP |
SF41-0300900DP |
SF41-0350900DP |
|
0.8A |
SF41-0100800DP |
SF41-0150800DP |
SF41-0200800DP |
SF41-0250800DP |
SF41-0300800DP |
SF41-0350800DP |
|
0.7A |
SF41-0100700DP |
SF41-0150700DP |
SF41-0200700DP |
SF41-0250700DP |
SF41-0300700DP |
SF41-0350700DP |
|
0.6A |
SF41-0100600DP |
SF41-0150600DP |
SF41-0200600DP |
SF41-0250600DP |
SF41-0300600DP |
SF41-0350600DP |
|
0.5A |
|
SF41-0200500DP |
SF41-0250500DP |
SF41-0300500DP |
|
SF41-0350500DP |
|
0.4A |
|
|
|
SF41-0300400DP |
|
|
 |
 |
 |
 |
 |
 |
