LINEAR ADAPTOR
DESKTOP - DUAL OUTPUT

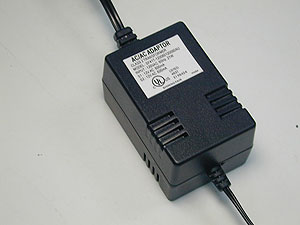

EI 41 AC TO AC ADAPTOR (US 2PIN)
Input:120V AC 60Hz
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
120VAC |
Output Voltage |
S1:1-19V AC, S2:1-19V AC |
|
Input Frequency |
60Hz |
Output Tolerance (Load) |
5% |
|
|
|
Output Current |
S1:0.1-0.8A, S2:0.1-0.8A |
|
|
|
Output Watt |
15.3VA max |
|
GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
1800VAC, one second |
UL/CUL |
UL 1310/ |
|
Primary to Secondary |
1800VAC, one second |
||
OUTPUT SPECIFICATION
|
AC to AC (DUAL Output) Adaptor |
||||||
|---|---|---|---|---|---|---|
|
The options of the dual output is limited to each output value |
||||||
|
Maximum Value |
Model No |
Output (Secondary 1) |
Output (Secondary 2) |
S1+S2 |
||
|
Volt(max) |
Amp(max) |
Volt(max) |
Amp(max) |
VA (max) |
||
|
x = a |
SF41T-aaaYYaaaYYAU |
5V AC |
0.8A |
5V AC |
0.8A |
8VA |
|
x = b |
SF41T-bbbYYbbbYYAU |
7V AC |
0.7A |
7V AC |
0.7A |
9.8VA |
|
x = c |
SF41T-cccYYcccYYAU |
10V AC |
0.6A |
10V AC |
0.6A |
12VA |
|
x = d |
SF41T-dddYYdddYYAU |
14V AC |
0.5A |
14V AC |
0.5A |
14VA |
|
x = e |
SF41T-eeeYYeeeYYAU |
19V AC |
0.4A |
19V AC |
0.4A |
15.2VA |
|
|
||||||
|
Model No |
Output (Secondary 1) |
Output (Secondary 2) |
S1 + S2 |
|||
|
Volt |
Amp |
Volt |
Amp |
VA |
||
|
SF41T-0300805008AU |
3V AC |
0.8A |
5V AC |
0.8A |
6.4VA |
|
|
SF41T-0300506004AU |
3V AC |
0.5A |
6V AC |
0.4A |
3.9VA |
|
|
SF41T-0500812005AU |
5V AC |
0.8A |
12V AC |
0.5A |
10VA |
|
|
SF41T-0600706007AU |
6V AC |
0.7A |
6V AC |
0.7A |
8.4VA |
|
|
SF41T-0750614004AU |
7.5V AC |
0.6A |
14V AC |
0.4A |
10.1VA |
|
|
SF41T-1900319004AU |
19V AC |
0.3A |
19V AC |
0.4A |
13.3VA |
|
 |
 |
 |
 |
 |
 |
