EI-41

00title405a

LINEAR ADAPTOR
WALLMOUNT - DUAL OUTPUT
EI 41 AC TO DC ADAPTOR (US 2 PIN)
Input:120V AC 60Hz

ELECTRICAL SPECIFICATION
INPUT		OUTPUT
Input Voltage	120VAC	Output Voltage	S1:1-12V DC, S2:1-12V DC
Input Frequency	60Hz	Output Tolerance (Load)	5%
		Output Current	S1:0.1-0.8A, S2:0.1-0.8A
		Output Watt	11.7VA max

GENERAL SPECIFICATION
Temperatures		Humidity
Operating Temperatures	-10 to +30^oC	Operating Humidity	10 to 90% RH
Storage Temperatures	-10 to +70^oC	Storage Humidity	5 to 95% RH
Hi-Pot Test		Safety	Compliance With
Primary to Core	1800VAC, one second	UL/CUL	UL 1310/ CAN/CSA C22.2 No.223
Primary to Secondary	1800VAC, one second	UL/CUL	UL 1310/ CAN/CSA C22.2 No.223

OUTPUT SPECIFICATION

AC to DC (DUAL Output) Adaptor
The options of the dual output is limited to each output value ( The value need to less than the max of volt and amp)
Maximum Value	Model No	Output (Secondary 1)		Output (Secondary 2)		S1 + S2
Maximum Value	Model No	Volt(max)	Amp(max)	Volt(max)	Amp(max)	VA (max)
x = a	SF41-aaaYYaaaYYDU	3V DC	0.8A	3V DC	0.8A	4.8VA
x = b	SF41-bbbYYbbbYYDU	4V DC	0.7A	4V DC	0.7A	5.6VA
x = c	SF41-cccYYcccYYDU	5V DC	0.6A	5V DC	0.6A	6VA
x = d	SF41-dddYYdddYYDU	7V DC	0.5A	7V DC	0.5A	7VA
x = e	SF41-eeeYYeeeYYDU	9V DC	0.4A	9V DC	0.4A	7.2VA
x = f	SF41-fffYYfffYYDU	12V DC	0.3A	12V DC	0.3A	7.8VA
x = g	SF41-gggYYgggYYDU	12V DC	0.2A	12V DC	0.6A	9.6VA
For Example
Model No		Output (Secondary 1)		Output (Secondary 2)		S1 + S2
Model No		Volt	Amp	Volt	Amp	VA
SF41-0150803008DU		1.5V DC	0.8A	3V DC	0.8A	3.6VA
SF41-0300803008DU		3V DC	0.8A	3V DC	0.8A	4.8VA
SF41-0300706006DU		3V DC	0.7A	6V DC	0.6A	5.7VA
SF41-0500612003DU		5V DC	0.6A	12V DC	0.3A	6.6VA
SF41-0500412005DU		5V DC	0.4A	12V DC	0.5A	8VA
SF41-0900412003DU		9V DC	0.4A	12V DC	0.3A	7.2VA

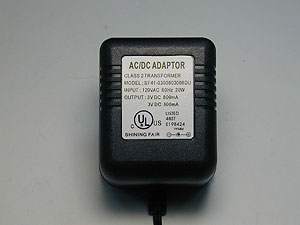

01-US-D-DC-EI41-A-P-W

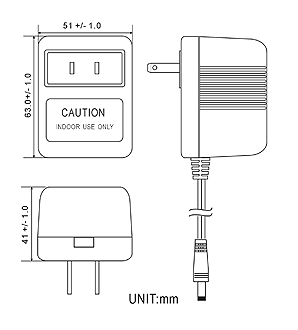

01-US-D-DC-EI41-A-DIM-W

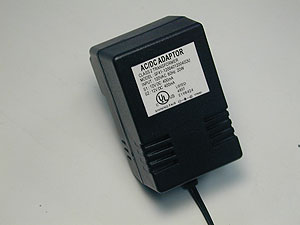

02-US-D-DC-EI41-B-P-W

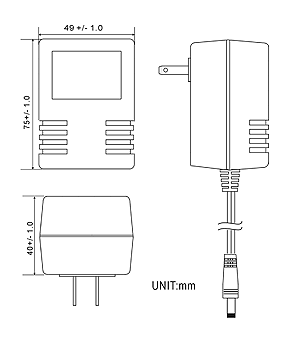

02-US-D-DC-EI41-B-DIM-W

A-TYPE

B-TYPE
