GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30℃ |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70℃ |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
3750V AC, one second |
BS/CB/CE |
EN 60950/EN 61558 |
|
Primary to Secondary |
3750V AC, one second |
||
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
230V AC |
Output Voltage |
1.4-25V DC |
|
Input Frequency |
50Hz |
Output Tolerance (Load) |
5% |
|
Output Current |
0.05-1.2A |
||
|
Output Watt |
6VA max |
||

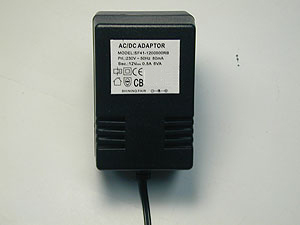

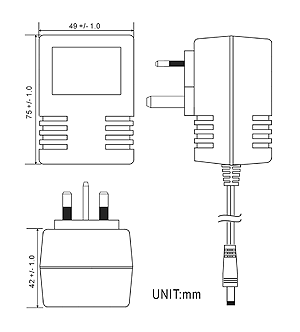

LINEAR ADAPTOR
WALLMOUNT
EI 41 AC TO DC (REGULATED) ADAPTOR
INPUT:230V AC 50Hz
OUTPUT SPECIFICATION
|
1.4-3.5V |
4-6.5V |
7-9.5V |
10-12.5V |
13-15.5V |
16-21V |
22-25V |
|---|
|
22V |
23V |
24V |
25V |
|
|
|
|
0.25A |
SF41-2200250RB |
SF41-2300250RB |
SF41-2400250RB |
|
|
|
|
0.20A |
SF41-2200200RB |
SF41-2300200RB |
SF41-2400200RB |
SF41-2500200RB |
|
|
|
0.10A |
SF41-2200100RB |
SF41-2300100RB |
SF41-2400100RB |
SF41-2500100RB |
|
|
|
0.05A |
SF41-2200050RB |
SF41-2300050RB |
SF41-2400050RB |
SF41-2500050RB |
|
|
|
16V |
17V |
18V |
19V |
20V |
21V |
|
|
0.35A |
SF41-1600350RB |
SF41-1700350RB |
|
|
|
|
|
0.30A |
SF41-1600300RB |
SF41-1700300RB |
SF41-1800300RB |
SF41-1900300RB |
SF41-2000300RB |
|
|
0.25A |
SF41-1600250RB |
SF41-1700250RB |
SF41-1800250RB |
SF41-1900250RB |
SF41-2000250RB |
SF41-2100250RB |
|
0.20A |
SF41-1600200RB |
SF41-1700200RB |
SF41-1800200RB |
SF41-1900200RB |
SF41-2000200RB |
SF41-2100200RB |
|
0.10A |
SF41-1600100RB |
SF41-1700100RB |
SF41-1800100RB |
SF41-1900100RB |
SF41-2000100RB |
SF41-2100100RB |
|
0.05A |
SF41-1600050RB |
SF41-1700050RB |
SF41-1800050RB |
SF41-1900050RB |
SF41-2000050RB |
SF41-2100050RB |
|
13V |
13.5V |
14V |
14.5V |
15V |
15.5V |
|
|
0.45A |
SF41-1300450RB |
|
|
|
|
|
|
0.40A |
SF41-1300400RB |
SF41-1350400RB |
SF41-1400400RB |
SF41-1450400RB |
SF41-1500400RB |
|
|
0.35A |
SF41-1300350RB |
SF41-1350350RB |
SF41-1400350RB |
SF41-1450350RB |
SF41-1500350RB |
SF41-1550350RB |
|
0.30A |
SF41-1300300RB |
SF41-1350300RB |
SF41-1400300RB |
SF41-1450300RB |
SF41-1500300RB |
SF41-1550300RB |
|
0.20A |
SF41-1300200RB |
SF41-1350200RB |
SF41-1400200RB |
SF41-1450200RB |
SF41-1500200RB |
SF41-1550200RB |
|
0.10A |
SF41-1300100RB |
SF41-1350100RB |
SF41-1400100RB |
SF41-1450100RB |
SF41-1500100RB |
SF41-1550100RB |
|
0.05A |
SF41-1300050RB |
SF41-1350050RB |
SF41-1400050RB |
SF41-1450050RB |
SF41-1500050RB |
SF41-1550050RB |
|
10V |
10.5V |
11V |
11.5V |
12V |
12.5V |
|
|
0.60A |
SF41-1000600RB |
|
|
|
|
|
|
0.55A |
SF41-1000550RB |
SF41-1050550RB |
SF41-1100550RB |
SF41-1150550RB |
|
|
|
0.50A |
SF41-1000500RB |
SF41-1050500RB |
SF41-1100500RB |
SF41-1150500RB |
SF41-1200500RB |
|
|
0.45A |
SF41-1000450RB |
SF41-1050450RB |
SF41-1100450RB |
SF41-1150450RB |
SF41-1200450RB |
SF41-1250450RB |
|
0.40A |
SF41-1000400RB |
SF41-1050400RB |
SF41-1100400RB |
SF41-1150400RB |
SF41-1200400RB |
SF41-1250400RB |
|
0.30A |
SF41-1000300RB |
SF41-1050300RB |
SF41-1100300RB |
SF41-1150300RB |
SF41-1200300RB |
SF41-1250300RB |
|
0.20A |
SF41-1000200RB |
SF41-1050200RB |
SF41-1100200RB |
SF41-1150200RB |
SF41-1200200RB |
SF41-1250200RB |
|
0.10A |
SF41-1000100RB |
SF41-1050100RB |
SF41-1100100RB |
SF41-1150100RB |
SF41-1200100RB |
SF41-1250100RB |
|
0.05A |
SF41-1000050RB |
SF41-1050050RB |
SF41-1100050RB |
SF41-1150050RB |
SF41-1200050RB |
SF41-1250050RB |
|
7V |
7.5V |
8V |
8.5V |
9V |
9.5V |
|
|
0.80A |
SF41-0700800RB |
SF41-0750800RB |
|
|
|
|
|
0.70A |
SF41-0700700RB |
SF41-0750700RB |
SF41-0800700RB |
SF41-0850700RB |
|
|
|
0.65A |
SF41-0700650RB |
SF41-0750650RB |
SF41-0800650RB |
SF41-0850650RB |
SF41-0950650RB |
|
|
0.60A |
SF41-0700600RB |
SF41-0750600RB |
SF41-0800600RB |
SF41-0850600RB |
SF41-0950600RB |
SF41-0950600RB |
|
0.50A |
SF41-0700500RB |
SF41-0750500RB |
SF41-0800500RB |
SF41-0850500RB |
SF41-0950500RB |
SF41-0950500RB |
|
0.40A |
SF41-0700400RB |
SF41-0750400RB |
SF41-0800400RB |
SF41-0850400RB |
SF41-0950400RB |
SF41-0950400RB |
|
0.30A |
SF41-0700300RB |
SF41-0750300RB |
SF41-0800300RB |
SF41-0850300RB |
SF41-0950300RB |
SF41-0950300RB |
|
0.20A |
SF41-0700200RB |
SF41-0750200RB |
SF41-0800200RB |
SF41-0850200RB |
SF41-0900200RB |
SF41-0950200RB |
|
0.10A |
SF41-0700100RB |
SF41-0750100RB |
SF41-0800100RB |
SF41-0850100RB |
SF41-0900100RB |
SF41-0950100RB |
|
0.05A |
SF41-0700050RB |
SF41-0750050RB |
SF41-0800050RB |
SF41-0850050RB |
SF41-0900050RB |
SF41-0950050RB |
|
4V |
4.5V |
5V |
5.5V |
6V |
6.5V |
|
|
1.20A |
SF41-0401200RB |
SF41-0451200RB |
|
|
|
|
|
1.10A |
SF41-0401100RB |
SF41-0451100RB |
SF41-0501100RB |
|
|
|
|
1.00A |
SF41-0401000RB |
SF41-0451000RB |
SF41-0501000RB |
SF41-0551000RB |
SF41-0601000RB |
|
|
0.90A |
SF41-0400900RB |
SF41-0450900RB |
SF41-0500900RB |
SF41-0550900RB |
SF41-0600900RB |
SF41-0650900RB |
|
0.80A |
SF41-0400800RB |
SF41-0450800RB |
SF41-0500800RB |
SF41-0550800RB |
SF41-0600800RB |
SF41-0650800RB |
|
0.70A |
SF41-0400700RB |
SF41-0450700RB |
SF41-0500700RB |
SF41-0550700RB |
SF41-0600700RB |
SF41-0650700RB |
|
0.60A |
SF41-0400600RB |
SF41-0450600RB |
SF41-0500600RB |
SF41-0550600RB |
SF41-0600600RB |
SF41-0650600RB |
|
0.50A |
SF41-0400500RB |
SF41-0450500RB |
SF41-0500500RB |
SF41-0550550RB |
SF41-0600600RB |
SF41-0650650RB |
|
0.40A |
SF41-0400400RB |
SF41-0450400RB |
SF41-0500400RB |
SF41-0550400RB |
SF41-0600400RB |
SF41-0650400RB |
|
0.30A |
SF41-0400400RB |
SF41-0450450RB |
SF41-0500500RB |
SF41-0550550RB |
SF41-0600600RB |
SF41-0650650RB |
|
0.20A |
SF41-0400200RB |
SF41-0450200RB |
SF41-0500200RB |
SF41-0550200RB |
SF41-0600200RB |
SF41-0650200RB |
|
0.10A |
SF41-0400100RB |
SF41-0450100RB |
SF41-0500100RB |
SF41-0550100RB |
SF41-0600100RB |
SF41-0650100RB |
|
0.05A |
SF41-0400050RB |
SF41-0450050RB |
SF41-0500050RB |
SF41-0550050RB |
SF41-0600050RB |
SF41-0650050RB |
|
1.4V |
1.5V |
2.0V |
2.5V |
3V |
3.5V |
|
|
1.20A |
|
SF41-0151200RB |
SF41-0201200RB |
SF41-0251200RB |
SF41-0301200RB |
SF41-0351200RB |
|
1.10A |
|
SF41-0151100RB |
SF41-0201100RB |
SF41-0251100RB |
SF41-0301100RB |
SF41-0351100RB |
|
1.00A |
SF41-0141000RB |
SF41-0151000RB |
SF41-0201000RB |
SF41-0251000RB |
SF41-0301000RB |
SF41-0351000RB |
|
0.90A |
SF41-0140900RB |
SF41-0150900RB |
SF41-0200900RB |
SF41-0250900RB |
SF41-0300900RB |
SF41-0350900RB |
|
0.80A |
SF41-0140800RB |
SF41-0150800RB |
SF41-0200800RB |
SF41-0250800RB |
SF41-0300800RB |
SF41-0350800RB |
|
0.70A |
SF41-0140700RB |
SF41-0150700RB |
SF41-0200700RB |
SF41-0250700RB |
SF41-0300700RB |
SF41-0350700RB |
|
0.60A |
SF41-0140600RB |
SF41-0150600RB |
SF41-0200600RB |
SF41-0250600RB |
SF41-0300600RB |
SF41-0350600RB |
|
0.50A |
SF41-0140500RB |
SF41-0150500RB |
SF41-0200500RB |
SF41-0250500RB |
SF41-0300500RB |
SF41-0350500RB |
|
0.40A |
SF41-0140400RB |
SF41-0150400RB |
SF41-0200400RB |
SF41-0250400RB |
SF41-0300400RB |
SF41-0350400RB |
|
0.30A |
SF41-0140300RB |
SF41-0150300RB |
SF41-0200300RB |
SF41-0250300RB |
SF41-0300300RB |
SF41-0350350RB |
|
0.20A |
SF41-0140200RB |
SF41-0150200RB |
SF41-0200200RB |
SF41-0250200RB |
SF41-0300200RB |
SF41-0350200RB |
|
0.10A |
|
SF41-0150100RB |
SF41-0200100RB |
SF41-0250100RB |
SF41-0300100RB |
SF41-0350100RB |
|
0.05A |
|
SF41-0150050RB |
SF41-0200050RB |
SF41-0250050RB |
SF41-0300050RB |
SF41-0350050RB |
 |
 |
 |
 |
 |
 |
