GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
3750V AC, one second |
SAA/C-tick/CB |
AS/NZS 60950/ |
|
Primary to Secondary |
3750V AC, one second |
||
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
230V AC |
Output Voltage |
6-20V AC |
|
Input Frequency |
50Hz |
Output Tolerance (Load) |
5% |
|
Output Current |
0.1-1.2A |
||
|
Output Watt |
12VA max |
||
LINEAR ADAPTOR
WALLMOUNT

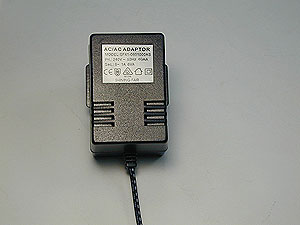

EI 41 AC TO AC ADAPTOR
INPUT:230V AC 50Hz
OUTPUT SPECIFICATION
|
6-13.5V |
15-20V |
|---|
|
15V |
16V |
18.5V |
19V |
20V |
|
|
|
0.7A |
SF41-1500700AS |
|
|
|
|
|
|
0.6A |
SF41-1500600AS |
SF41-1600600AS |
SF41-1850600AS |
SF41-1900600AS |
SF41-2000600AS |
|
|
0.5A |
SF41-1500500AS |
SF41-1600500AS |
SF41-1850500AS |
SF41-1900500AS |
SF41-2000500AS |
|
|
0.4A |
SF41-1500400AS |
SF41-1600400AS |
SF41-1850400AS |
SF41-1900400AS |
SF41-2000400AS |
|
|
0.3A |
|
SF41-1600300AS |
SF41-1850300AS |
SF41-1900300AS |
SF41-2000300AS |
|
|
0.2A |
|
SF41-1600200AS |
SF41-1850200AS |
SF41-1900200AS |
SF41-2000200AS |
|
|
0.1A |
|
SF41-1600100AS |
SF41-1850100AS |
SF41-1900100AS |
SF41-2000100AS |
|
|
6V |
7.5V |
9V |
12V |
13V |
13.5V |
|
|
1.2A |
|
|
SF41-0901200AS |
|
|
|
|
1.1A |
|
SF41-0751100AS |
SF41-0901100AS |
|
|
|
|
1.0A |
SF41-0601000AS |
SF41-0751000AS |
SF41-0901000AS |
SF41-1201000AS |
|
|
|
0.9A |
|
SF41-0750900AS |
SF41-0900900AS |
SF41-1200900AS |
SF41-1300900AS |
|
|
0.8A |
|
|
SF41-0900800AS |
SF41-1200800AS |
SF41-1300800AS |
|
|
0.7A |
|
|
SF41-0900700AS |
SF41-1200700AS |
SF41-1300700AS |
|
|
0.6A |
|
|
SF41-0900600AS |
SF41-1200600AS |
SF41-1300600AS |
|
|
0.5A |
|
|
SF41-0900500AS |
SF41-1200500AS |
SF41-1300500AS |
SF41-1350500AS |
|
0.4A |
|
|
SF41-0900400AS |
SF41-1200400AS |
SF41-1300400AS |
|
|
0.3A |
|
|
SF41-0900300AS |
SF41-1200300AS |
SF41-1300300AS |
|
|
0.2A |
|
|
|
SF41-1200200AS |
SF41-1300200AS |
|
 |
 |
 |
 |
 |
 |
